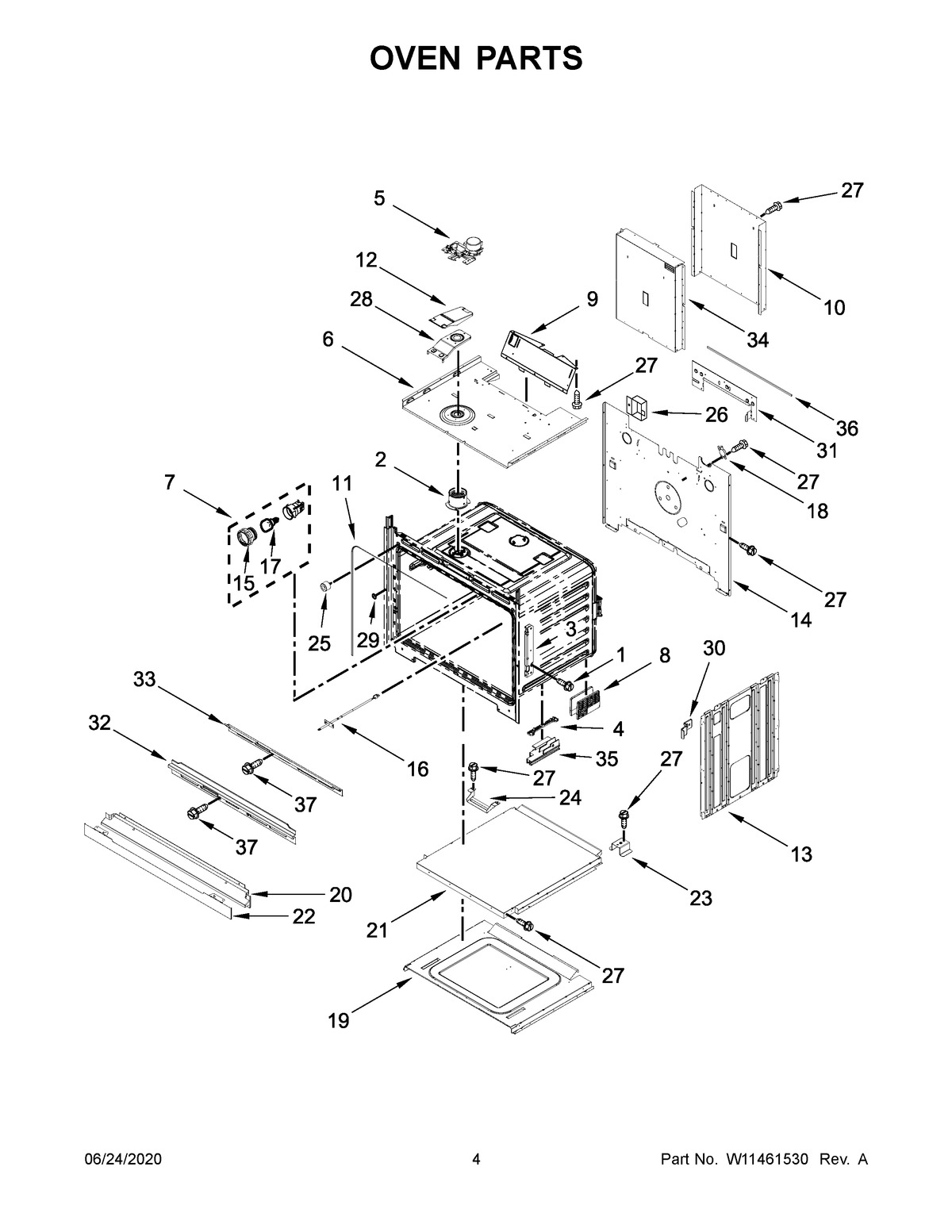

MEW9630FZ04 03 – OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, CAVITY
NI	INSULATION, WRAP
1	MAY W10254050
2	TUBE, VENT
3	RECEIVER, HINGE
4	SPACER, BASE
5	LATCH, MOTORIZED
6	TOP, CHASSIS
7	ASSEMBLY, LIGHT
8	FOOT, BASE
9	DEFLECTOR, BLOWER
10	DUCT, CHASSIS BACK (LOWER)
11	MAY W10282960
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	BACK, CHASSIS
15	LENS, LIGHT
16	MAY W10622170
17	BULB, LIGHT
18	THERMOSTAT
19	BASE, CHASSIS
20	MAY W10351279
21	CHASSIS, BOTTOM DUCT
22	TRIM, BOTTOM VENT (STAINLESS)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY 8285593
27	MAY 7101P426- 60
28	BASE, VENT EXHAUST
29	MAY W10283016
30	MAY W10347649
31	MAY W10588736
32	MAY W10283040
33	VENT, TOP 30"
34	DUCT, CHASSIS BACK
35	MAY W10618103
35A	MAY W10618104
36	GASKET, RUBBER
37	SCREW
