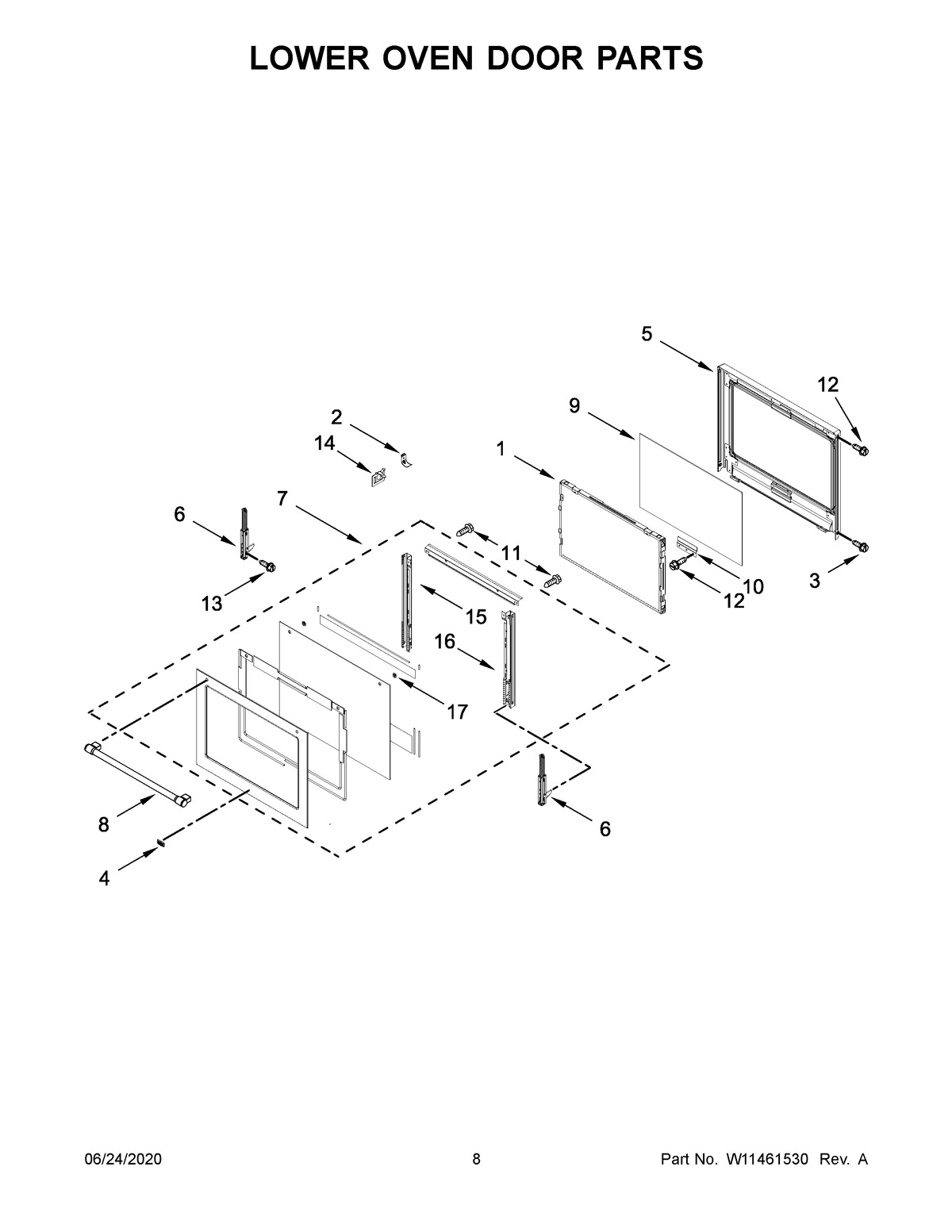

MEW9630FZ04 05 – LOWER OVEN DOOR PARTS

MEW9630FZ04 05 – LOWER OVEN DOOR PARTS

Written by

in

MEW9630FZ04 05 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1MAY W11383648
2MAY W10284285
3MAY 7101P635-60
4BADGE
5MAY W10709147
6MAY W10639067
7MAY W11318333
8HANDLE, OVEN DOOR (STAINLESS)
9MAY W11368485
10MAY W10284297
11SCREW
12MAY 7101P426- 60
13SCREW
14MAY W10653954
15RAIL, DOOR SIDE (LEFT)
16RAIL, DOOR SIDE (RIGHT)
17WASHER, DOOR
