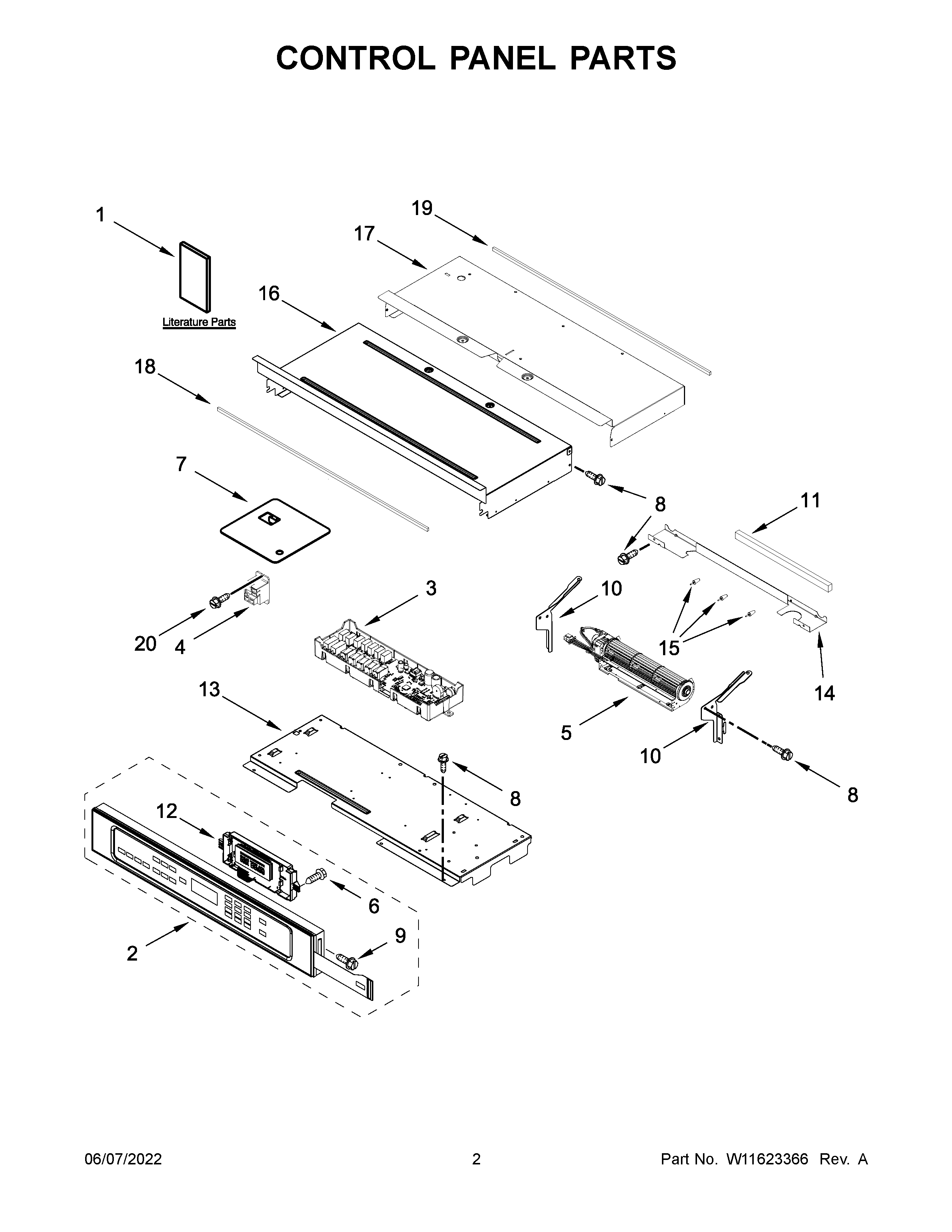

MEW9630FZ20 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	16515 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11727826 Whirlpool Wire Harness
NI	STRAP, LEAD GROUND
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	W11157775 Whirlpool Wire Harness
NI	HARNESS, SIGNAL
NI	W11245669 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
1	OWNER'S MANUAL
1A	QUICK START GUIDE
1B	TECH SHEET
2	W11600245 Whirlpool Control Panel
3	W11598232-includeCORE Whirlpool W11598232 Refrigerator Electronic Control Board + Core
4	W10874478 Whirlpool Power Relay
5	BLOWER
6	SCREW
7	COVER, WIFI
8	SCREW
9	SCREW (BLACK)
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
13	TRAY, ELECTRONIC
14	DIVIDER, CHASSIS BACK
15	W10351295 Whirlpool Bumper Assembly
16	COVER, 30 IN CHASSIS TOP FRONT
17	COVER, 30 IN CHASSIS TOP BACK
18	GASKET, RUBBER
19	W10728475 Whirlpool Foam Seal
20	SCREW
