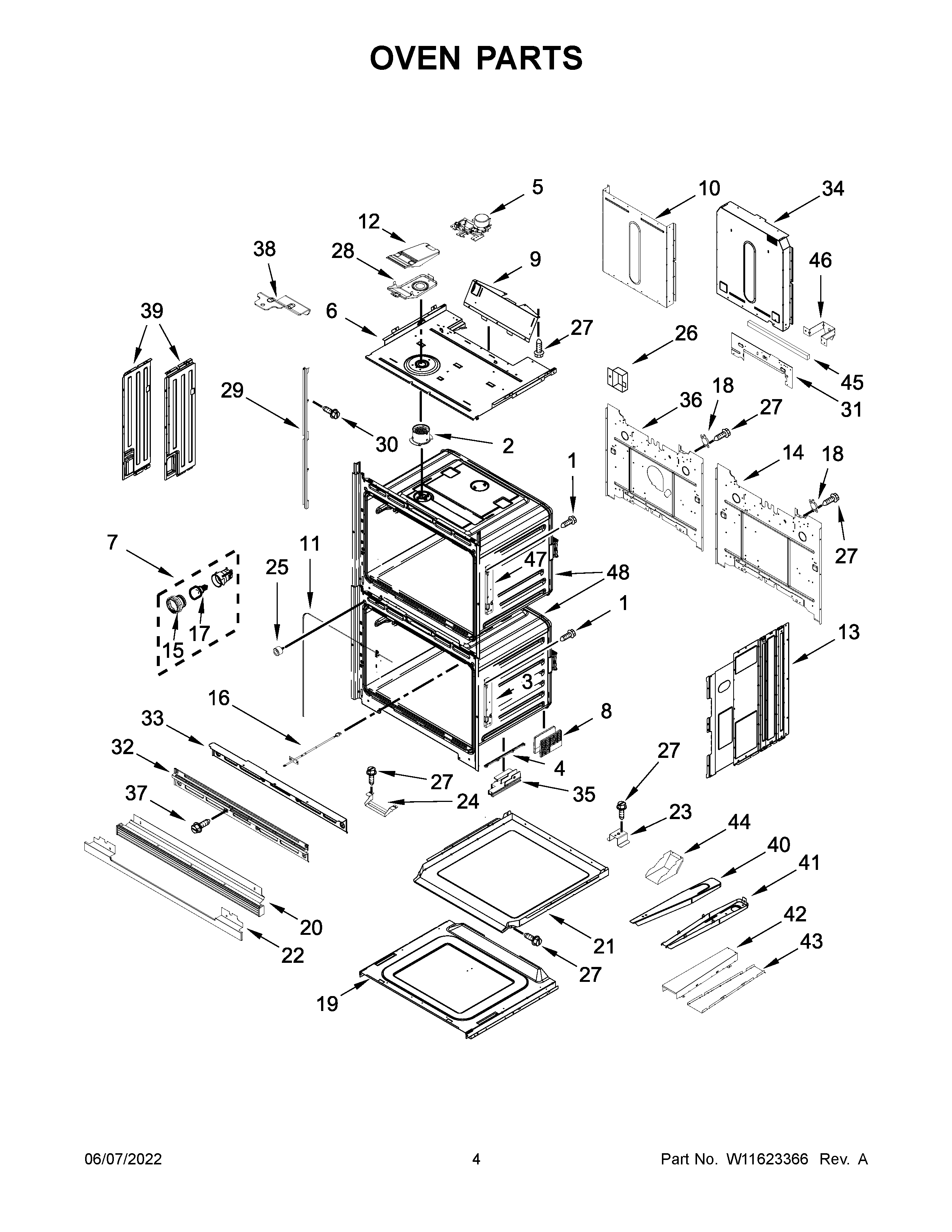

MEW9630FZ20 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	CABINET (NOT A SERVICEABLE PART)
NI	INSULATION, CAVITY
1	WPW10254050 Whirlpool Screw
2	W11240525 Whirlpool Vent Tube
3	W11712405 Whirlpool Receiver Hinge
3A	W11712406 Whirlpool Receiver Hinge
4	W11598116 Whirlpool Spacer
5	W11686858 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11325541 Whirlpool Indicator Light
8	W11598170 Whirlpool Level Foot
9	W10904163 Whirlpool Vent Deflector
10	W11134657 Whirlpool Rear Cover
11	W11676903 Whirlpool Gasket
12	COVER, VENT EXHAUST
13	W11165274 Whirlpool Side Panel
14	BACK, CHASSIS (LOWER)
15	W11450856 Whirlpool Light Lens
16	W11598120 Whirlpool Thermostat
17	W11454079 Whirlpool Light Bulb
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	COVR-ACESS
20	W11598202 Whirlpool Oven Vent
21	COVR-ACESS
22	W11598135 Whirlpool Trim
23	SUPPORT, AIR CHANNEL
24	SPACER, CHASSIS BOTTOM DUCT
25	WPW10351278 Whirlpool Bumper
26	8285593 Whirlpool Oven Wire Cover
27	SCREW
28	BASE, VENT EXHAUST
29A	W11235461 Whirlpool Rail Mounting
29	W11235460 Whirlpool Mounting Rail
30	W11602623 Whirlpool Screw
31	BRACKET, U-SHAPE
32	W11235482 Whirlpool Exhaust Vent
33	W11715951 Whirlpool Vent Trim
34	W11165250 Whirlpool Rear Cover
35A	W11598168 Whirlpool Leveling Foot
35	W11598169 Whirlpool Foot Level Assembly
36	BACK, CHASSIS
37	WPY706189 Whirlpool Stove Screw
38	BRACKET, TOP FRONT
39	W11598150 Whirlpool Side Cover
39A	W11598151 Whirlpool Side Cover
40	COVER, TOP BACK EXHAUST
41	BASE, TOP BACK EXHAUST
42	COVER, LOWER BACK EXHAUST
43	BASE, LOWER BACK EXHAUST
44	DEFLECTOR, LOWER BACK EXHAUST
45	FOAM, U-BRACKET
46	HAT BRACKET, VENT
47	HINGE-RECV
