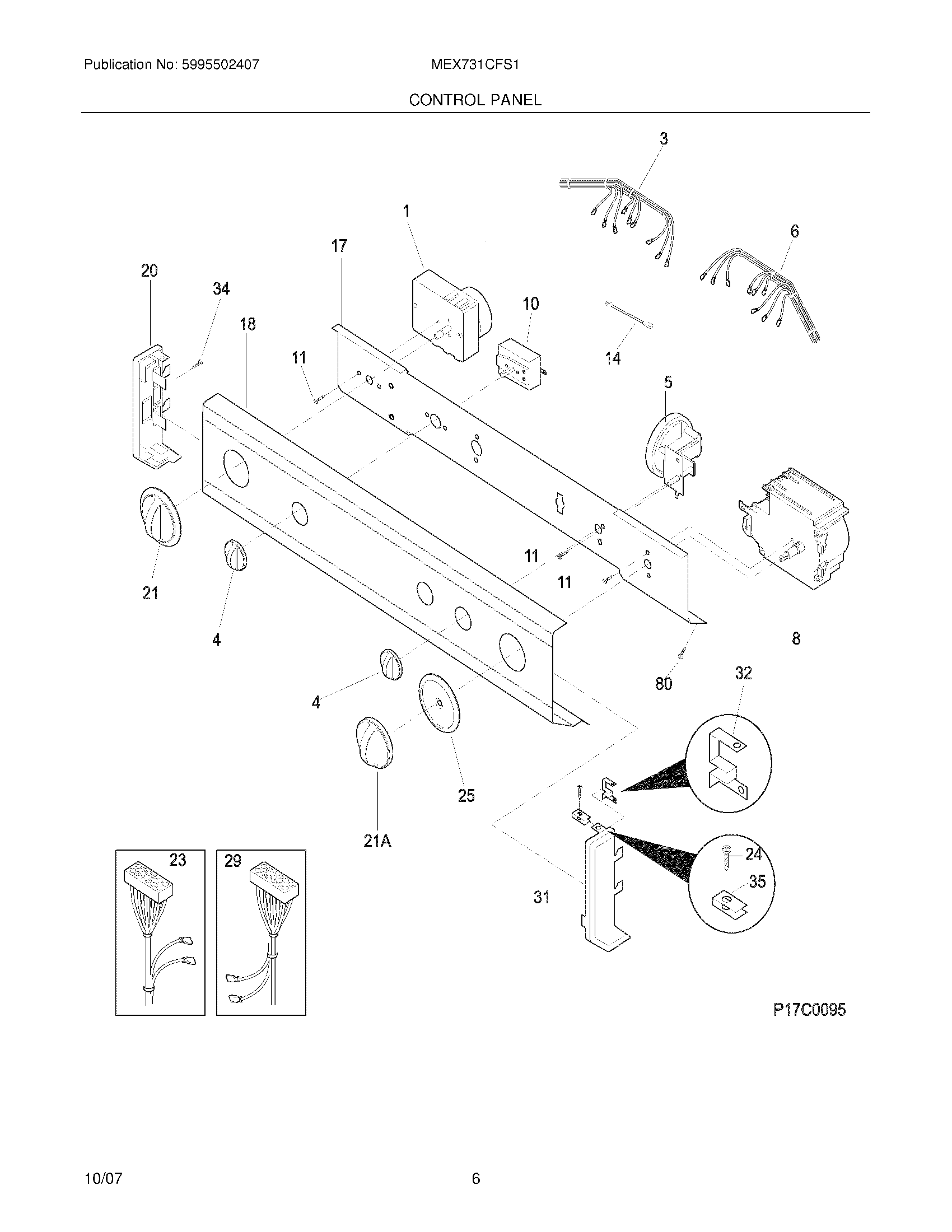

MEX731CFS1 07 – CONTROL PANEL

Products

Position	Product
NI	WCI 131535101
NI	134154100 Frigidaire Screw 10-32 x 0.375 Co
NI	134101400 Frigidaire Dryer Kit Terminal Block
1	TIMER-DRYER
3	WCI 131484100
4	131858004 Frigidaire Control Knob, White
5	134422700 Frigidaire Switch
6	WCI 134542400
8	131964100 Frigidaire P1-Timer Elec H Mallor
10	134399700 Frigidaire Washer Switch
11	218359202 Frigidaire Refrigerator Screw
14	WCI 134446800
17	WCI 134263400
18	WCI 134091100
20	WCI 131288101
21A	Knob,washer timer ,white/dark gray
21	131859104 Frigidaire Dryer Timer Knob
23	WCI 134605500
24	134156200 Frigidaire Screw
25	Pointer,timer ,white ,gray indicator
29	WCI 134895800
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
80	131168200 Frigidaire Dryer Screw
