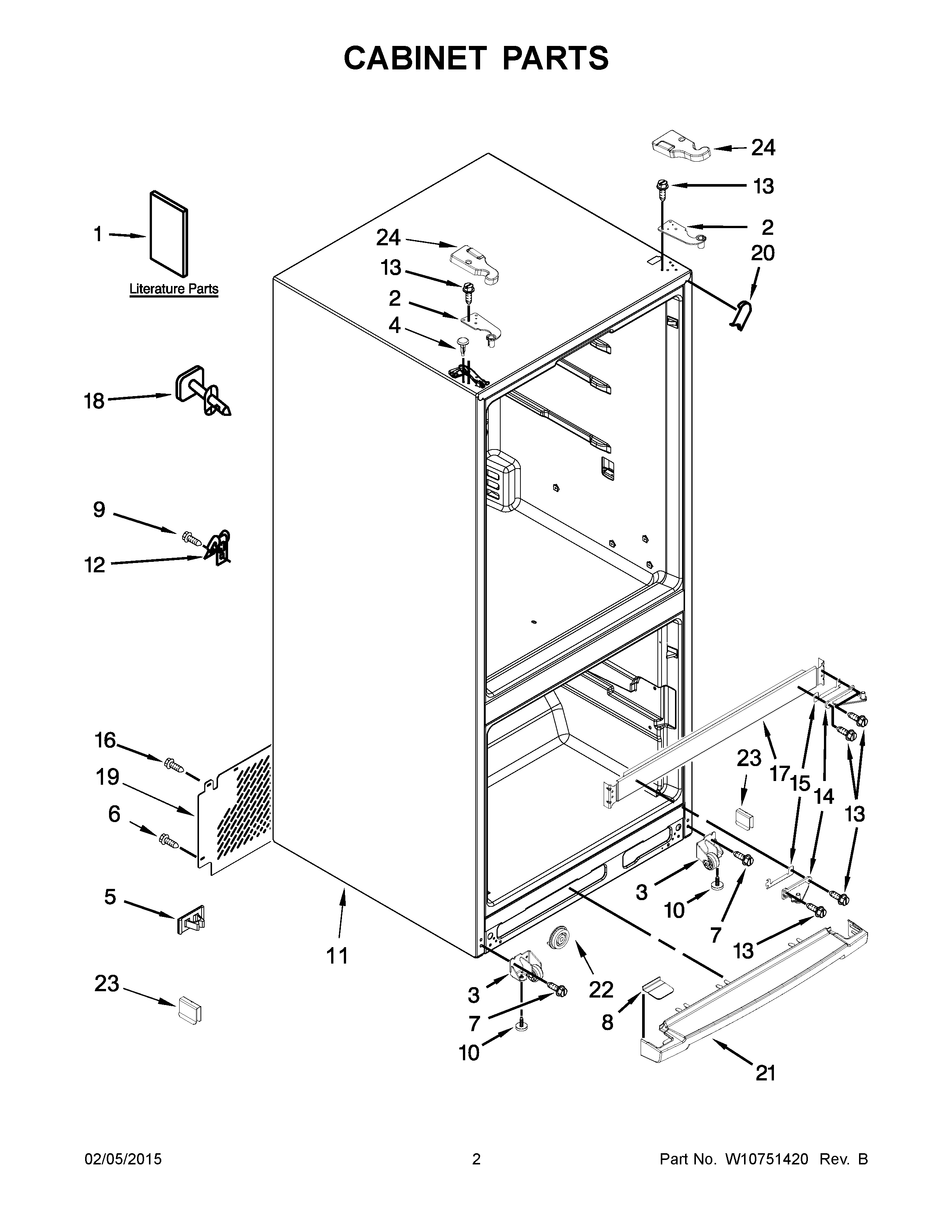

MFB2055DRE00 02 – CABINET PARTS

Products

Position	Product
1B	MAY W10460643
1A	MAY W10726400
1	MAY W10596092
1C	ICEMAKER SERVICE SHEET
2A	HINGE, TOP (RIGHT HAND)
2	HINGE, TOP (LEFT HAND)
3A	ROLLER, FRONT (RIGHT HAND)
3	ROLLER, FRONT (LEFT HAND)
4A	HOLE PLUG (BLACK)
4	MAY W10520304
4B	HOLE PLUG (GREY)
5	CLIP, TUBE
6	MAY 2262176
8A	ENDCAP, GRILLE (BLACK)
8	ENDCAP, GRILLE (WHITE)
8B	COVER, TOE GRILLE (GREY)
10	Brake, Foot
12	MAY 549193
13	MAY 489497
14A	MAY W10521409
14	MAY W10521411
15	SHIM, CENTER HINGE
16	MAY 489442
18	LINER (NOT A SERVICEABLE PART)
19	COVER, UNIT
20	CORNER FILLER (WHITE)
20A	CORNER FILLER (BLACK)
20B	FILLER, CORNER (GREY)
21	GRILLE (INCLUDES ILLUS. 20) (WHITE)
21B	GRILLE (GREY)
21A	GRILLE (INCLUDES ILLUS. 20) (BLACK)
22	DRUM, TOE GRILLE
23	CLIP, ROLLER
24E	COVER, HINGE (RIGHT HAND (GREY))
24D	COVER, HINGE (LEFT HAND (GREY))
24C	COVER, HINGE (RIGHT HAND (BLACK))
24B	COVER, HINGE (LEFT HAND (BLACK))
24A	COVER, HINGE (RIGHT HAND (WHITE))
24	COVER, HINGE (LEFT HAND (WHITE))
