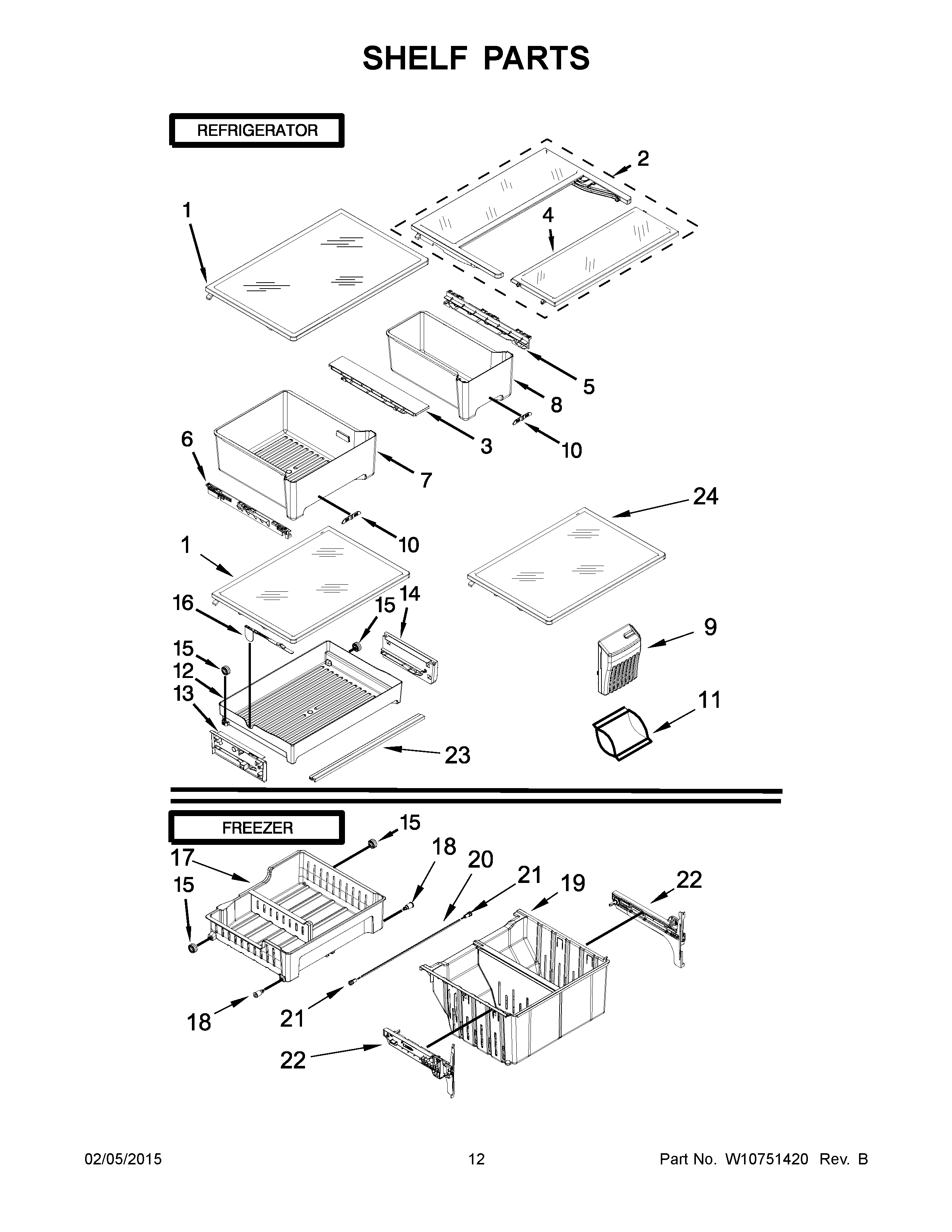

MFB2055DRE00 07 – SHELF PARTS

Products

Position	Product
1	ASSEMBLY, FULL SHELF (30")
2	FLIP DOWN SHELF ASSEMBLY
3	RAIL, TRACK (CENTER)
4	SHELF, FLIP DOWN
5	RAIL, TRACK (RIGHT HAND)
6	RAIL, TRACK (LEFT HAND)
7	PAN, CRISPER (16")
8	PAN, CRISPER (8")
9	MAY W10408748
10	CONTROL, HUMIDITY
11	MAY W10346771
12	ASSEMBLY, PANTRY DELI PAN
13	RAIL, PANTRY (LEFT HAND)
14	RAIL, PANTRY (RIGHT HAND)
15	MAY W10278139
16	MAY W10411411
17	BIN, UPPER FREEZER
18	MAY W10257246
19	BASKET, LOWER FREEZER
20	MAY W10371538
21	COLLAR, GEAR
22A	ADAPTOR, FREEZER (RIGHT HAND)
22	ADAPTOR, FREEZER (LEFT HAND)
23	ASSEMBLY, PANTRY COVER SUPPORT
24	GLASS, PANTRY COVER
