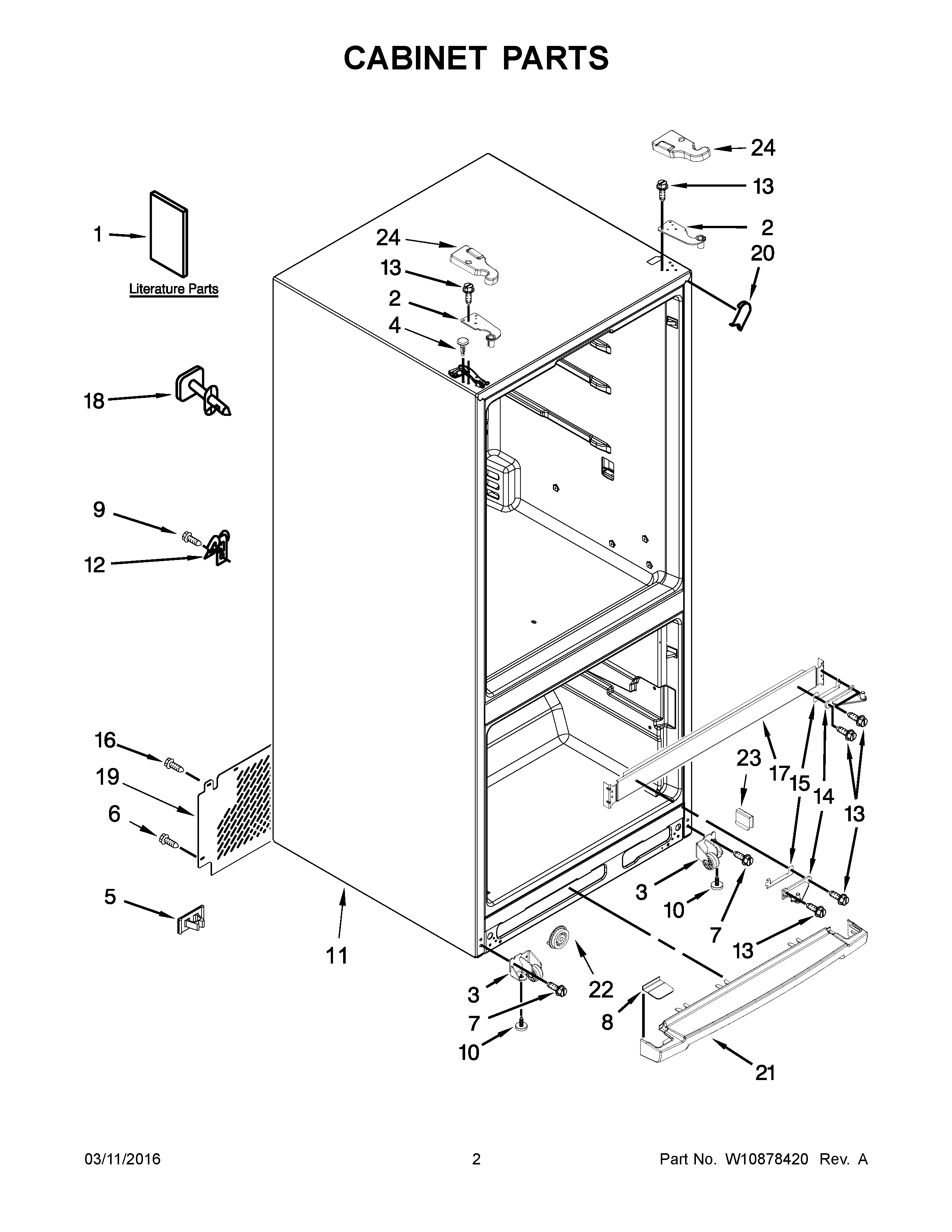

MFB2055DRE01 02 – CABINET PARTS

MFB2055DRE01 02 – CABINET PARTS

Written by

in

MFB2055DRE01 02 – CABINET PARTS

Products

PositionProduct
1MAY W10641015
1BMAY W10460643
1AMAY W10726400
2AHINGE, TOP (RIGHT HAND)
2HINGE, TOP (LEFT HAND)
3AROLLER, FRONT (RIGHT HAND)
3ROLLER, FRONT (LEFT HAND)
4MAY W10520304
4BHOLE PLUG (GREY)
4AHOLE PLUG (BLACK)
5CLIP, TUBE
6MAY 2262176
8ENDCAP, GRILLE (WHITE)
8AENDCAP, GRILLE (BLACK)
8BCOVER, TOE GRILLE (GREY)
10Brake, Foot
12MAY 549193
13MAY 489497
14HINGE, CENTER (LEFT HAND)
14AHINGE, CENTER (RIGHT HAND)
15SHIM, CENTER HINGE
16MAY 489442
18LINER (NOT A SERVICEABLE PART)
19COVER, UNIT
20CORNER FILLER (WHITE)
20ACORNER FILLER (BLACK)
20BFILLER, CORNER (GREY)
21GRILLE (INCLUDES ILLUS. 20) (WHITE)
21AGRILLE (INCLUDES ILLUS. 20) (BLACK)
21BGRILLE (GREY)
22DRUM, TOE GRILLE
23CLIP, ROLLER
24ACOVER, HINGE (RIGHT HAND (WHITE))
24ECOVER, HINGE (RIGHT HAND (GREY))
24DCOVER, HINGE (LEFT HAND (GREY))
24CCOVER, HINGE (RIGHT HAND (BLACK))
24BCOVER, HINGE (LEFT HAND (BLACK))
24COVER, HINGE (LEFT HAND (WHITE))
