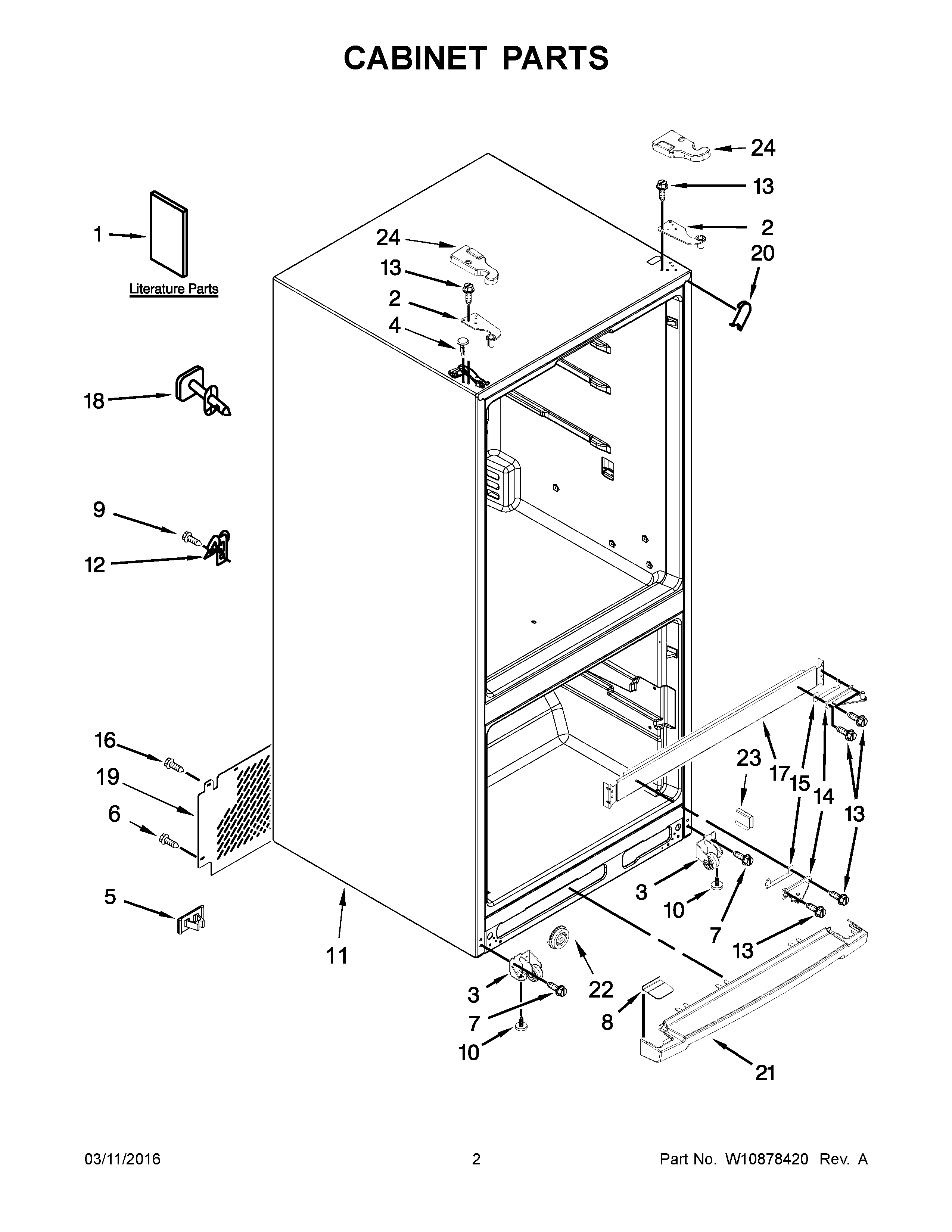

MFB2055DRH01 02 – CABINET PARTS

MFB2055DRH01 02 – CABINET PARTS

Written by

in

MFB2055DRH01 02 – CABINET PARTS

Products

Position	Product
1	MAY W10641015
1B	MAY W10460643
1A	MAY W10726400
2A	HINGE, TOP (RIGHT HAND)
2	HINGE, TOP (LEFT HAND)
3A	ROLLER, FRONT (RIGHT HAND)
3	ROLLER, FRONT (LEFT HAND)
4	MAY W10520304
4B	HOLE PLUG (GREY)
4A	HOLE PLUG (BLACK)
5	CLIP, TUBE
6	MAY 2262176
8	ENDCAP, GRILLE (WHITE)
8A	ENDCAP, GRILLE (BLACK)
8B	COVER, TOE GRILLE (GREY)
10	Brake, Foot
12	MAY 549193
13	MAY 489497
14	HINGE, CENTER (LEFT HAND)
14A	HINGE, CENTER (RIGHT HAND)
15	SHIM, CENTER HINGE
16	MAY 489442
18	LINER (NOT A SERVICEABLE PART)
19	COVER, UNIT
20	CORNER FILLER (WHITE)
20A	CORNER FILLER (BLACK)
20B	FILLER, CORNER (GREY)
21	GRILLE (INCLUDES ILLUS. 20) (WHITE)
21A	GRILLE (INCLUDES ILLUS. 20) (BLACK)
21B	GRILLE (GREY)
22	DRUM, TOE GRILLE
23	CLIP, ROLLER
24A	COVER, HINGE (RIGHT HAND (WHITE))
24E	COVER, HINGE (RIGHT HAND (GREY))
24D	COVER, HINGE (LEFT HAND (GREY))
24C	COVER, HINGE (RIGHT HAND (BLACK))
24B	COVER, HINGE (LEFT HAND (BLACK))
24	COVER, HINGE (LEFT HAND (WHITE))
