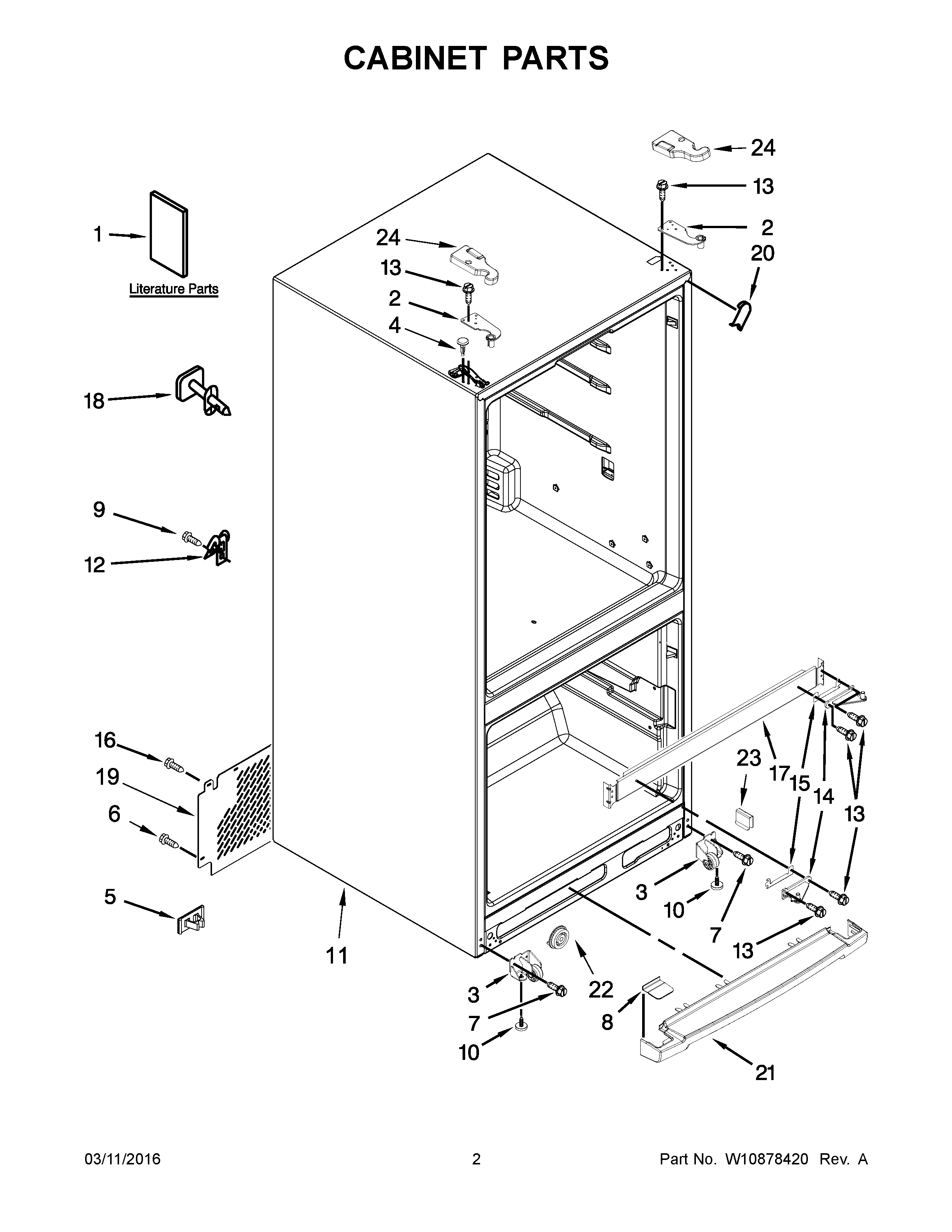

MFB2055DRM01 02 – CABINET PARTSadmin2025-04-26T09:08:16+00:00MFB2055DRM01 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10641015 |
| 1B | MAY W10460643 |
| 1A | MAY W10726400 |
| 2A | HINGE, TOP (RIGHT HAND) |
| 2 | HINGE, TOP (LEFT HAND) |
| 3A | ROLLER, FRONT (RIGHT HAND) |
| 3 | ROLLER, FRONT (LEFT HAND) |
| 4 | MAY W10520304 |
| 4B | HOLE PLUG (GREY) |
| 4A | HOLE PLUG (BLACK) |
| 5 | CLIP, TUBE |
| 6 | MAY 2262176 |
| 8 | ENDCAP, GRILLE (WHITE) |
| 8A | ENDCAP, GRILLE (BLACK) |
| 8B | COVER, TOE GRILLE (GREY) |
| 10 | Brake, Foot |
| 12 | MAY 549193 |
| 13 | MAY 489497 |
| 14 | HINGE, CENTER (LEFT HAND) |
| 14A | HINGE, CENTER (RIGHT HAND) |
| 15 | SHIM, CENTER HINGE |
| 16 | MAY 489442 |
| 18 | LINER (NOT A SERVICEABLE PART) |
| 19 | COVER, UNIT |
| 20 | CORNER FILLER (WHITE) |
| 20A | CORNER FILLER (BLACK) |
| 20B | FILLER, CORNER (GREY) |
| 21 | GRILLE (INCLUDES ILLUS. 20) (WHITE) |
| 21A | GRILLE (INCLUDES ILLUS. 20) (BLACK) |
| 21B | GRILLE (GREY) |
| 22 | DRUM, TOE GRILLE |
| 23 | CLIP, ROLLER |
| 24A | COVER, HINGE (RIGHT HAND (WHITE)) |
| 24E | COVER, HINGE (RIGHT HAND (GREY)) |
| 24D | COVER, HINGE (LEFT HAND (GREY)) |
| 24C | COVER, HINGE (RIGHT HAND (BLACK)) |
| 24B | COVER, HINGE (LEFT HAND (BLACK)) |
| 24 | COVER, HINGE (LEFT HAND (WHITE)) |
