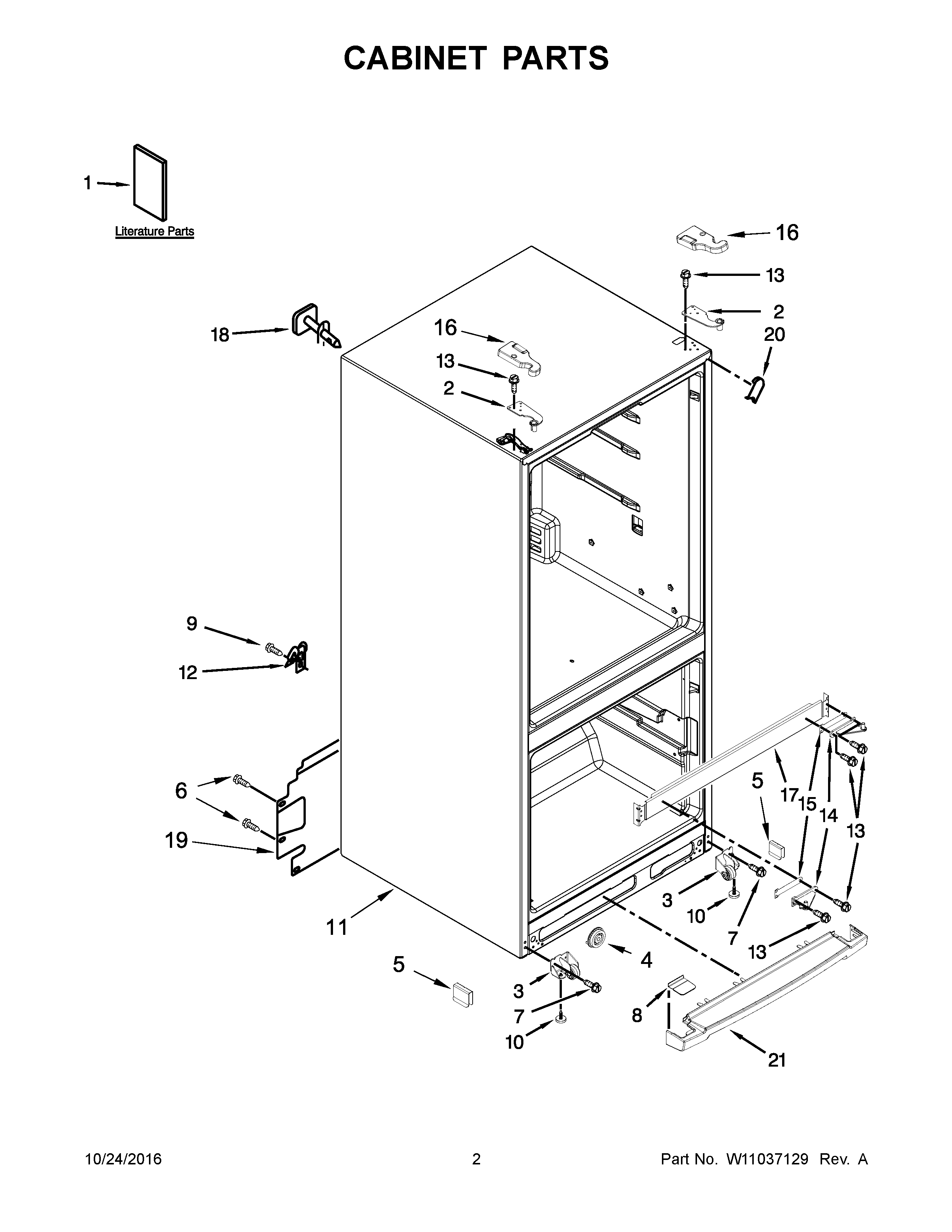

MFB2055FRW00 02 – CABINET PARTS

MFB2055FRW00 02 – CABINET PARTS

Written by

in

MFB2055FRW00 02 – CABINET PARTS

Products

PositionProduct
1AMAY W10898063
1MAY W10641015
1BMAY W10460643
2AHINGE, TOP (RIGHT HAND)
2HINGE, TOP (LEFT HAND)
3AROLLER, FRONT (RIGHT HAND)
3ROLLER, FRONT (LEFT HAND)
4DRUM, TOE GRILLE
5CLIP, ROLLER
6MAY 2262176
8ENDCAP, GRILLE (WHITE)
9MAY 489442
10Brake, Foot
12MAY 549193
13MAY 489497
14AHINGE, CENTER (RIGHT HAND)
14HINGE, CENTER (LEFT HAND)
15SHIM, CENTER HINGE
16ACOVER, HINGE (RIGHT HAND (WHITE))
16COVER, HINGE (LEFT HAND (WHITE))
18LINER (NOT A SERVICEABLE PART)
19COVER, UNIT
20CORNER FILLER (WHITE)
21GRILLE (INCLUDES ILLUS. 20) (WHITE)
