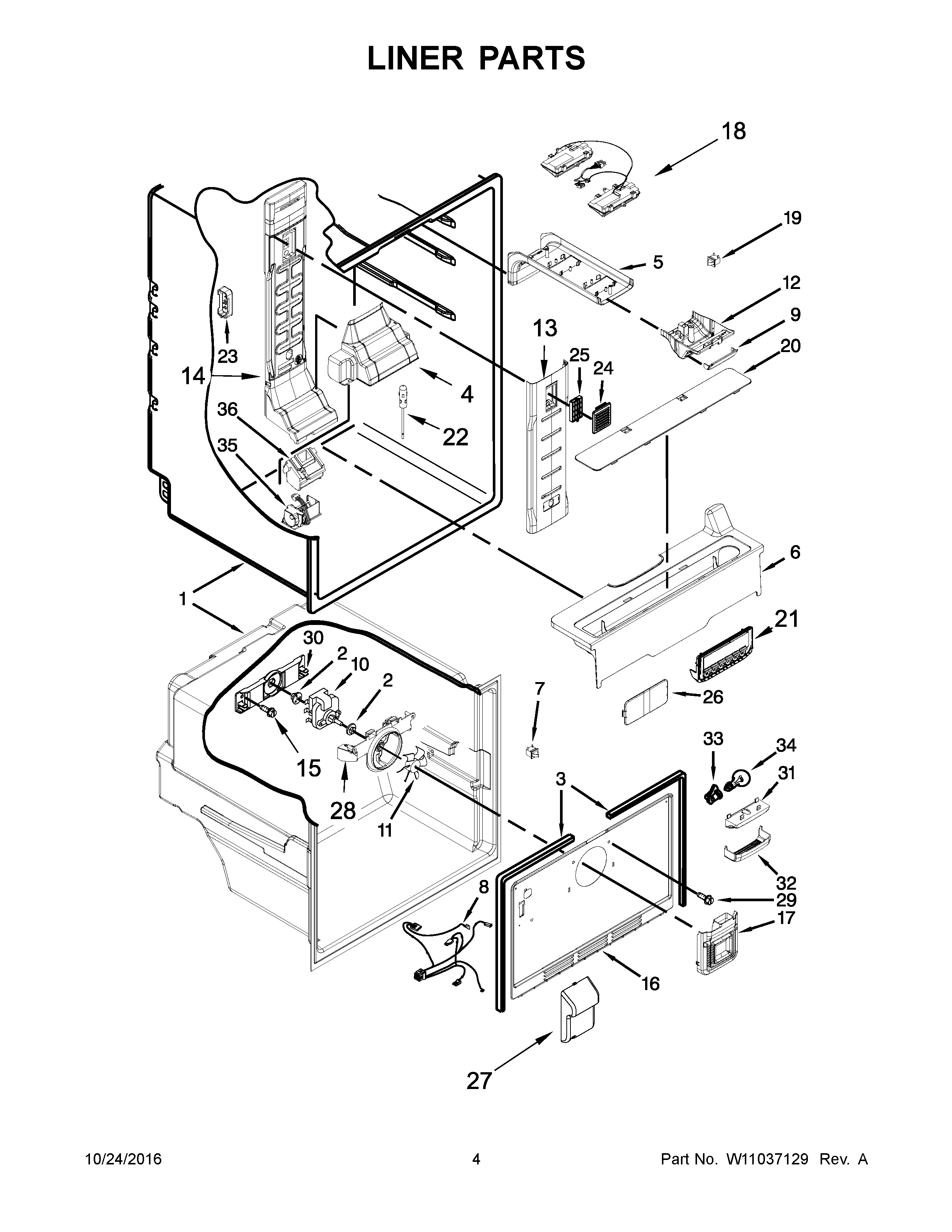

MFB2055FRW00 03 – LINER PARTS

MFB2055FRW00 03 – LINER PARTS

Written by

in

MFB2055FRW00 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	GASKET, EVAPORATOR COVER
4	HOUSING, DAMPER
5	HOUSING, LIGHT
6	CONTAINER, WATER RESERVOIR
7	MAY 12466105
8	ASSEMBLY, FREEZER WIRE
9	MAY W10360550
10	MOTOR, FAN
11	MAY 2200509
12	MAY W10435634
13	TOWER, MULTIFLOW AIR
14	ASSEMBLY, MULTIFLOW
15	Screw
16	COVER, EVAPORATOR
17	TOWER, FREEZER
18	MAY W10536361
19	MAY 1118894
20	COVER, WATER RESERVOIR
21	MAY W10689397
22	THERMISTOR
23	COVER, THERMISTOR
24	GRILLE, AIR FILTER BOTTOM
25	FILTER, AIR
26	CUP, SCREW
27	MAY W10339203
28	MAY W10321162
29	MAY 489478
30	Bracket, Fan Back
31	HOUSING, FREEZER LIGHTING
32	LENS, LIGHT
33	SOCKET, LIGHT
34	BULB, LIGHT
35	DAMPER, ELECTRONIC CONTROL
36	COVER, DAMPER HOUSING
