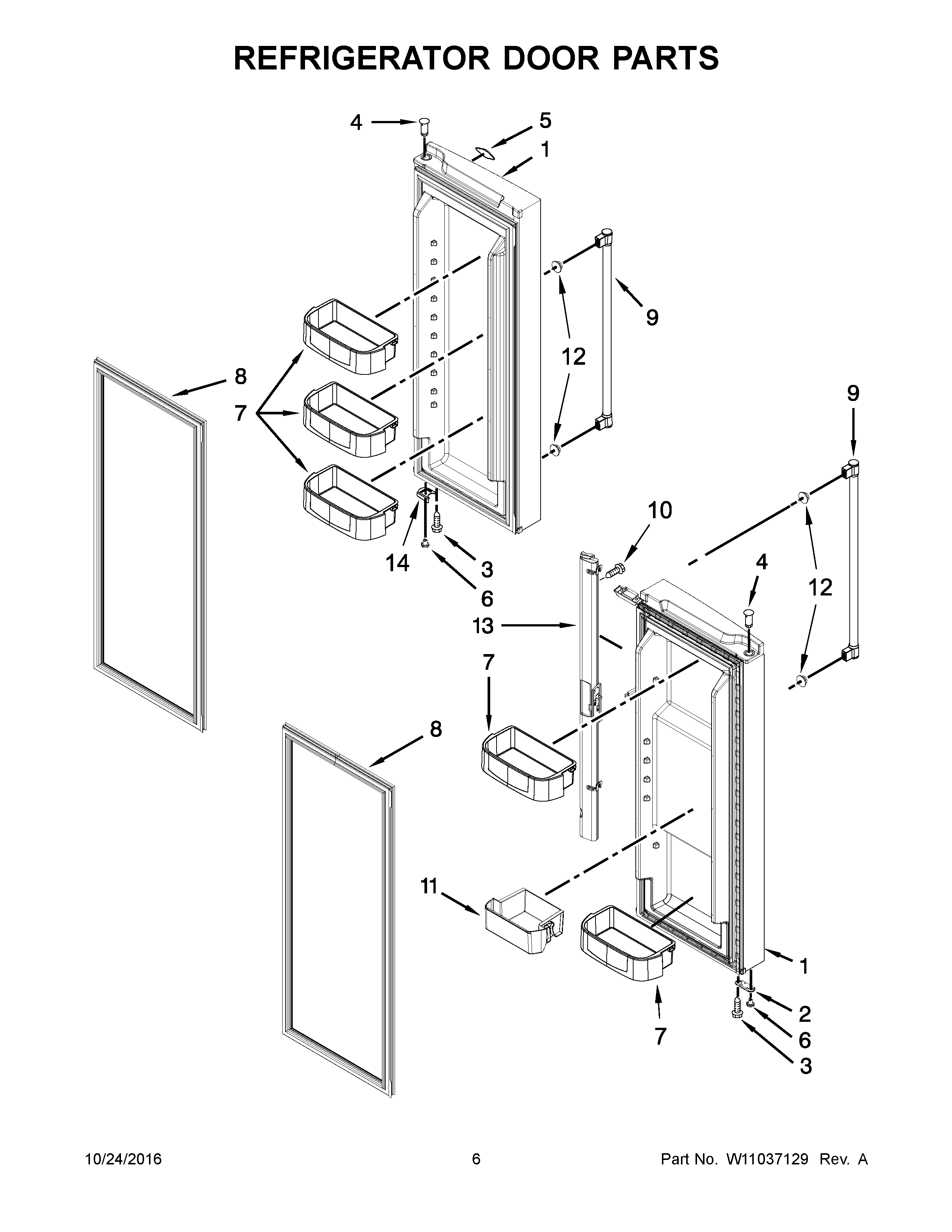

MFB2055FRW00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (WHITE))
1ADOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (WHITE))
2MAY 2189202
3MAY 489276
4THIMBLE (WHITE)
5BADGE
6CLOSURE, DOOR
7BIN, MEDIUM
8GASKET, DOOR (BEIGE)
9MAY W10891380
10Screw (4)
11BIN, SHALLOW
12STUD SCREW
13ASSEMBLY, MULLION (WHITE)
14BRACKET, DOOR STOP
