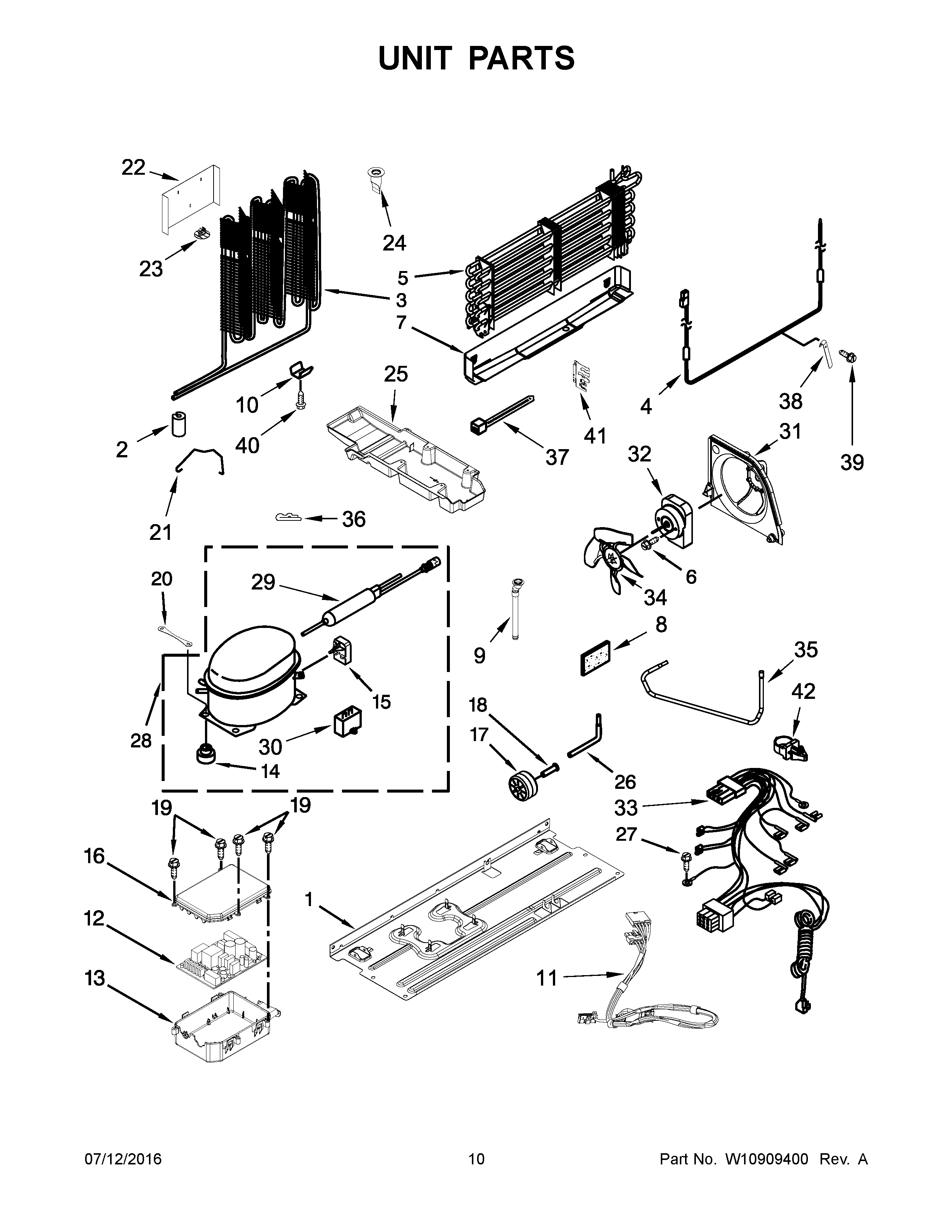

MFB2055FRZ00 06 – UNIT PARTSadmin2025-04-26T09:09:37+00:00MFB2055FRZ00 06 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | Valve, Access (5/8``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | MAY 876764 |
| NI | VALVE, ACCESS (1/4``) |
| 1 | MAY W10300116 |
| 2 | GROMMET, CONDENSER |
| 3 | CONDENSER |
| 4 | HEATER, DEFROST |
| 5 | ASSEMBLY, EVAPORATOR |
| 6 | MAY 8533961 |
| 7 | MAY W10314195 |
| 8 | MAY 2215468 |
| 9 | TUBE, DRAIN |
| 10 | CLIP, CONDENSER |
| 11 | ASSEMBLY, LOW VOLTAGE WIRE |
| 12 | MAY W10547719 |
| 13 | BOX, CONTROL |
| 14 | Grommet (4) |
| 15 | DEVICE, START |
| 16 | COVER, ELECTRONIC CONTROL |
| 17 | MAY W10475495 |
| 18 | MAY 2179826 |
| 19 | MAY 8533859 |
| 20 | MAY W10236396 |
| 21 | MAY W10174384 |
| 22 | COVER, CONDENSER BOTTOM |
| 23 | MAY W10815861 |
| 24 | VALVE, DRAIN |
| 25 | TRAY, DRAIN |
| 26 | MAY VS20001 |
| 27 | MAY 488500 |
| 28 | MAY W10445423 |
| 29 | DRIER |
| 30 | MAY W10590083 |
| 31 | MAY 2315541 |
| 32 | MOTOR, CONDENSER |
| 33 | MAY W10637509 |
| 34 | MAY W10817071 |
| 35 | TUBE, SUCTION |
| 36 | MAY 1114718 |
| 37 | MAY 2263990 |
| 38 | MAY 2258429 |
| 39 | MAY 489478 |
| 40 | MAY 8281232 |
| 41 | BRACKET, EVAPORATOR |
| 42 | Clip, Harness (1) |
