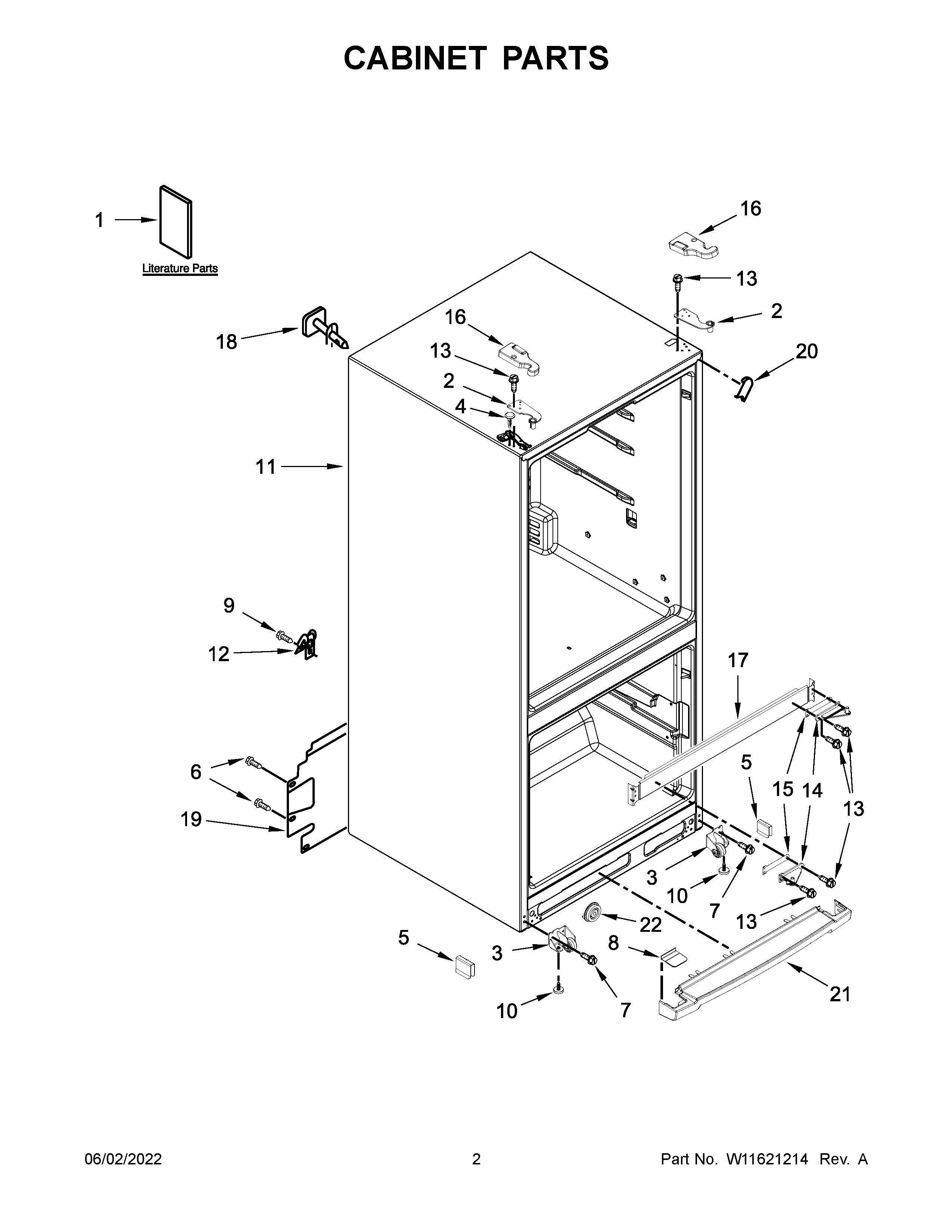

MFB2055FRZ03 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	TECH SHEET
1B	USE AND CARE GUIDE
2	W10546298 Whirlpool Refrigerator Door Hinge
2A	W11573371 Whirlpool Refrigerator Door Hinge
3A	WPW10359255 Whirlpool Cabinet Wheel
3	WPW10359256 Whirlpool Cabinet Roller
4	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
5	WP2174706 Whirlpool Refrigerator Pin Hitch
6	WP488729 Whirlpool Refrigerator Door Screw
7	BOLT
8	WPW10353932 Whirlpool Refrigerator Grille Endcap
9	WP489442 Whirlpool Refrigerator Screw
10	WPW10141622 Whirlpool Leveler
12	W11234470 Whirlpool Refrigerator Clamp
13	W10336489 Whirlpool Refrigerator Screw
14A	W11417064 Whirlpool Refrigerator Door Hinge
14	W10770878 Whirlpool Refrigerator Door Hinge
15	WPW10450363 Whirlpool Refrigerator Shim
16	W10465768 Whirlpool Hinge Cover
16A	W10465767 Whirlpool Refrigerator Cover
18	CABINET (NOT A SERVICEABLE PART)
19	W11700600 Whirlpool Unit Cover
20	W11219642 Whirlpool Refrigerator Filler
21	WPW10353935 Whirlpool Refrigerator Grille
22	W10331226 Whirlpool Refrigerator Clip
