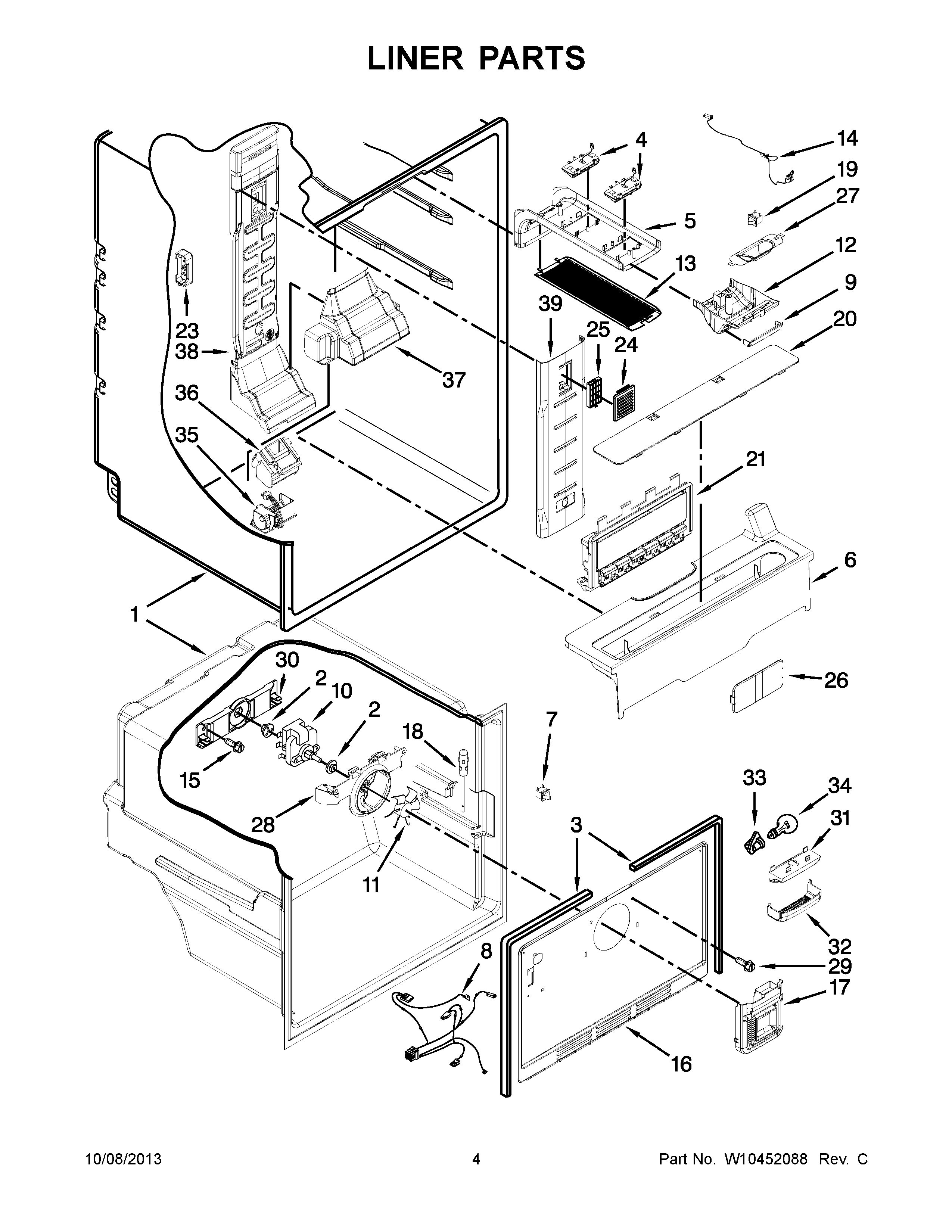

MFB2055YEB00 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY 2254359
4	ASSEMBLY, LED LIGHT
5	MAY W10359399
6	CONTAINER, WATER RESERVOIR
7	MAY 12466105
8	WIRE ASSEMBLY, FREEZER COMPARTMENT
9	MAY W10360550
10	MAY W10438708
11	MAY 2200509
12	MAY W10435636
13	MAY W10404442
14	MAY W10421350
15	Screw
16	COVER, EVAPORATOR
17	TOWER, FREEZER
18	THERMISTOR, EVAPORATOR
19	MAY 1118894
20	COVER, WATER RESERVOIR
21	MAY W10461914
23	MAY W10356630
24	GRILLE, AIR FILTER BOTTOM
25	ANTIBACTERIAL FILTER
26	CUP, SCREW
27	MAY W10314195
28	MAY W10321162
29	MAY 489478
30	Bracket, Fan Back
31	HOUSING, FREEZER LIGHTING
32	LENS, LIGHT
33	MAY W10191429
34	Bulb, Light
35	MAY W10257451
36	MAY W10322093
37	HOUSING, DAMPER
38	MULTIFLOW ASSEMBLY
39	TOWER, MULTIFLOW AIR
