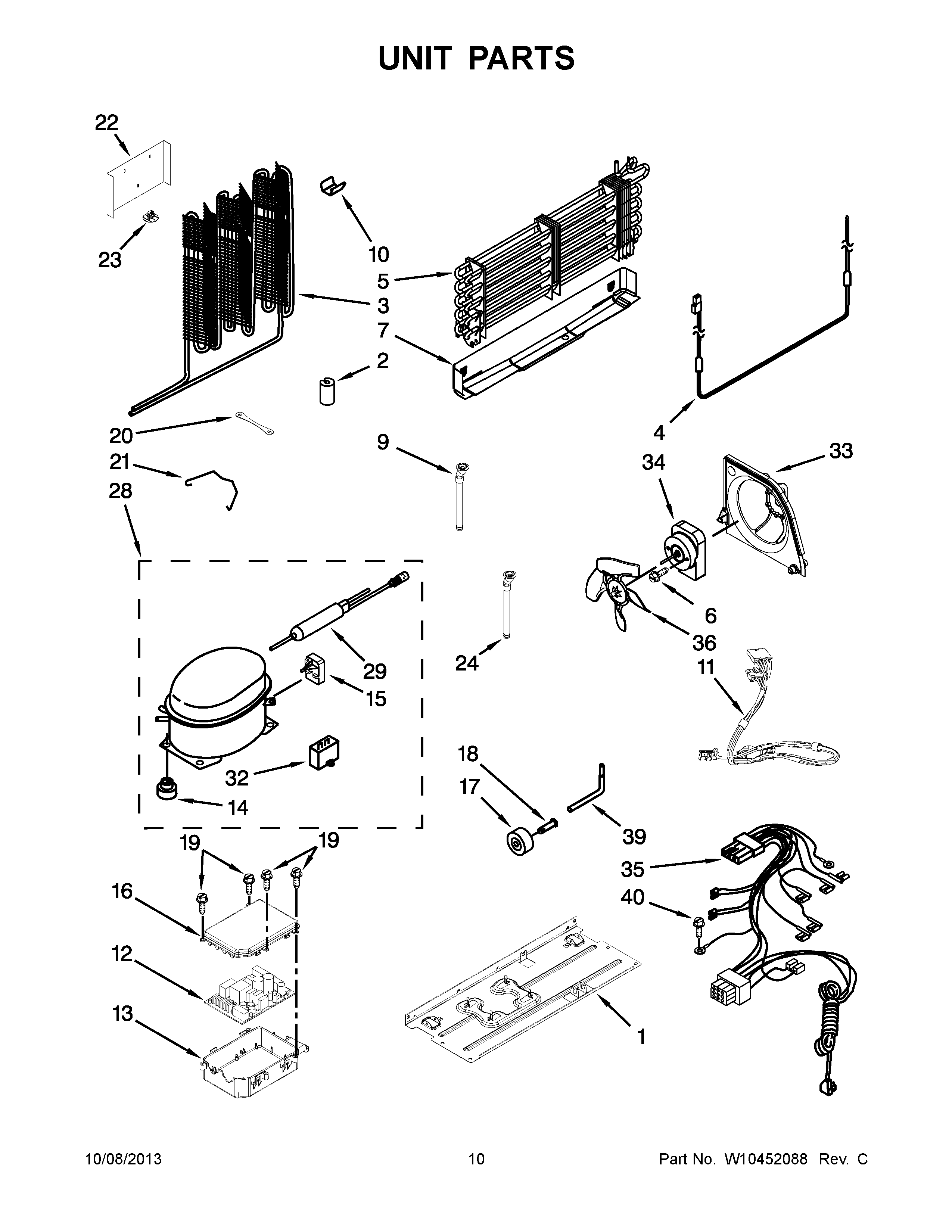

MFB2055YEB00 06 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10300116
2	GROMMET, CONDENSER
3	CONDENSER
4	HEATER, DEFROST
5	ASSEMBLY, EVAPORATOR
6	MAY 8533961
7	MAY W10314200
9	TUBE, DRAIN
10	MAY 2311725
11	ASSEMBLY, LOW VOLTAGE WIRE
12	CONTROL, ELECTRONIC
13	MAY W10370696
14	GROMMET
15	START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY)
16	COVER, ELECTRONIC CONTROL
17	Roller
18	MAY 2179826
19	MAY 8533859
20	MAY W10236396
21	Clip, Retaining
22	COVER, CONDENSER BOTTOM
23	CLIP, BOTTOM COVER
24	VALVE, DRAIN
28	MAY W10391109
29	Drier
32	Capacitator (Production)
33	MAY 2315541
34	MOTOR, CONDENSOR
35	ASSEMBLY, UNIT WIRE
36	MAY W10139483
39	MAY 2154109
40	MAY 488500
