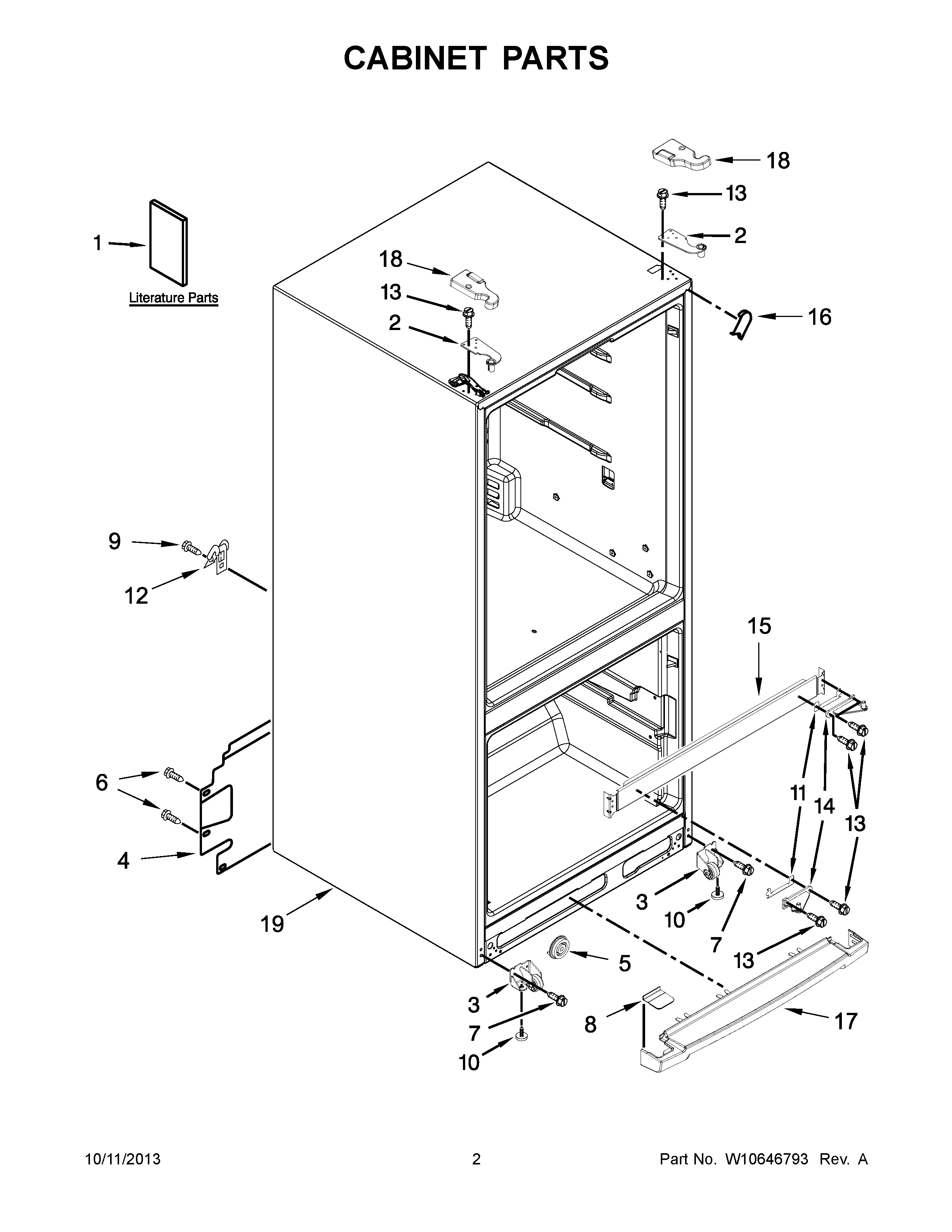

MFB2055YEB01 02 – CABINET PARTS

MFB2055YEB01 02 – CABINET PARTS

Written by

in

MFB2055YEB01 02 – CABINET PARTS

Products

PositionProduct
1MAY W10452526
1SERVICE & WIRING SHEET
1MAY W10460643
2HINGE, TOP (RIGHT HAND)
2HINGE, TOP (LEFT HAND)
3ROLLER, FRONT (RIGHT HAND)
3ROLLER, FRONT (LEFT HAND)
4MAY W10444800
5DRUM, TOE GRILLE
6MAY 2262176
8COVER, TOE GRILLE (GREY)
8ENDCAP, GRILLE (BLACK)
8ENDCAP, GRILLE (WHITE)
9MAY 489442
10Brake, Foot
11SHIM, CENTER HINGE
12MAY 549193
13MAY 489497
14MAY W10521409
14MAY W10521411
16CORNER FILLER (WHITE)
16CORNER FILLER (BLACK)
16FILLER, CORNER (GREY)
17GRILLE (GREY)
17GRILLE (INCLUDES ILLUS. 20) (WHITE)
17GRILLE (INCLUDES ILLUS. 20) (BLACK)
18COVER, HINGE (RIGHT HAND (GREY))
18COVER, HINGE (LEFT HAND (GREY))
18COVER, HINGE (RIGHT HAND (BLACK))
18COVER, HINGE (LEFT HAND (BLACK))
18COVER, HINGE (RIGHT HAND (WHITE))
18COVER, HINGE (LEFT HAND (WHITE))
19LINER (NOT A SERVICEABLE PART)
