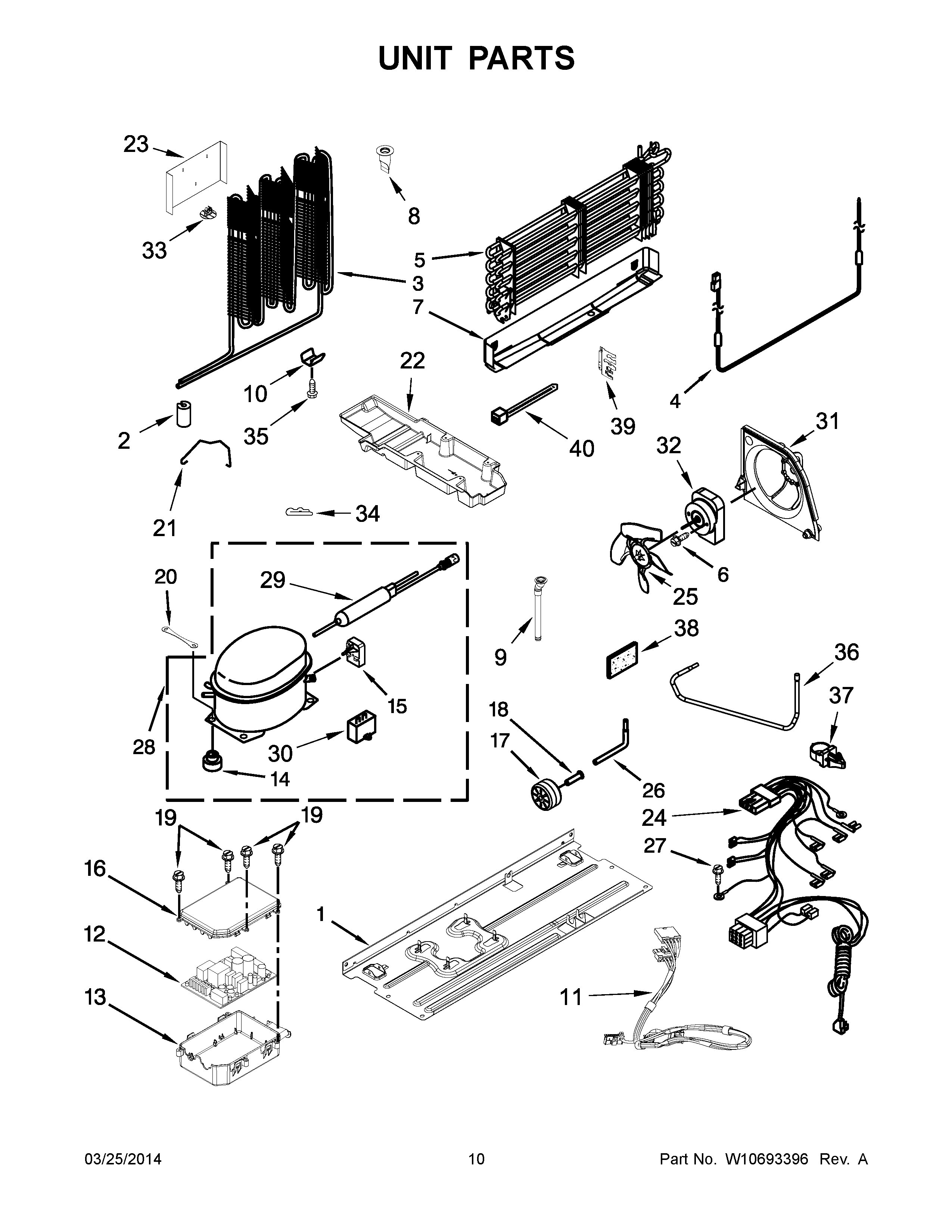

MFB2055YEB02 06 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY W10300116
2	GROMMET, CONDENSER
3	CONDENSER
4	HEATER, DEFROST
5	ASSEMBLY, EVAPORATOR
6	MAY 8533961
7	MAY W10314195
8	VALVE, DRAIN
9	TUBE, DRAIN
10	CLIP, CONDENSER
11	ASSEMBLY, LOW VOLTAGE WIRE
12	MAY W10547719
13	MAY W10370696
14	GROMMET
15	DEVICE, START
16	COVER, ELECTRONIC CONTROL
17	MAY W10475495
18	MAY 2179826
19	MAY 8533859
20	MAY W10236396
21	MAY W10174384
22	MAY W10466213
23	COVER, CONDENSER BOTTOM
24	ASSEMBLY, UNIT WIRE
25	MAY W10139483
26	MAY VS20001
27	MAY 488500
28	MAY W10445423
29	DRIER (PRODUCTION)
30	Capacitator (Production)
31	MAY 2315541
32	MAY W10508362
33	CLIP, BOTTOM COVER
34	MAY 1114718
35	MAY 8281232
36	TUBE, SUCTION
37	Clip, Harness (1)
38	MAY 2215468
39	BRACKET, EVAPORATOR
40	MAY 2263990
