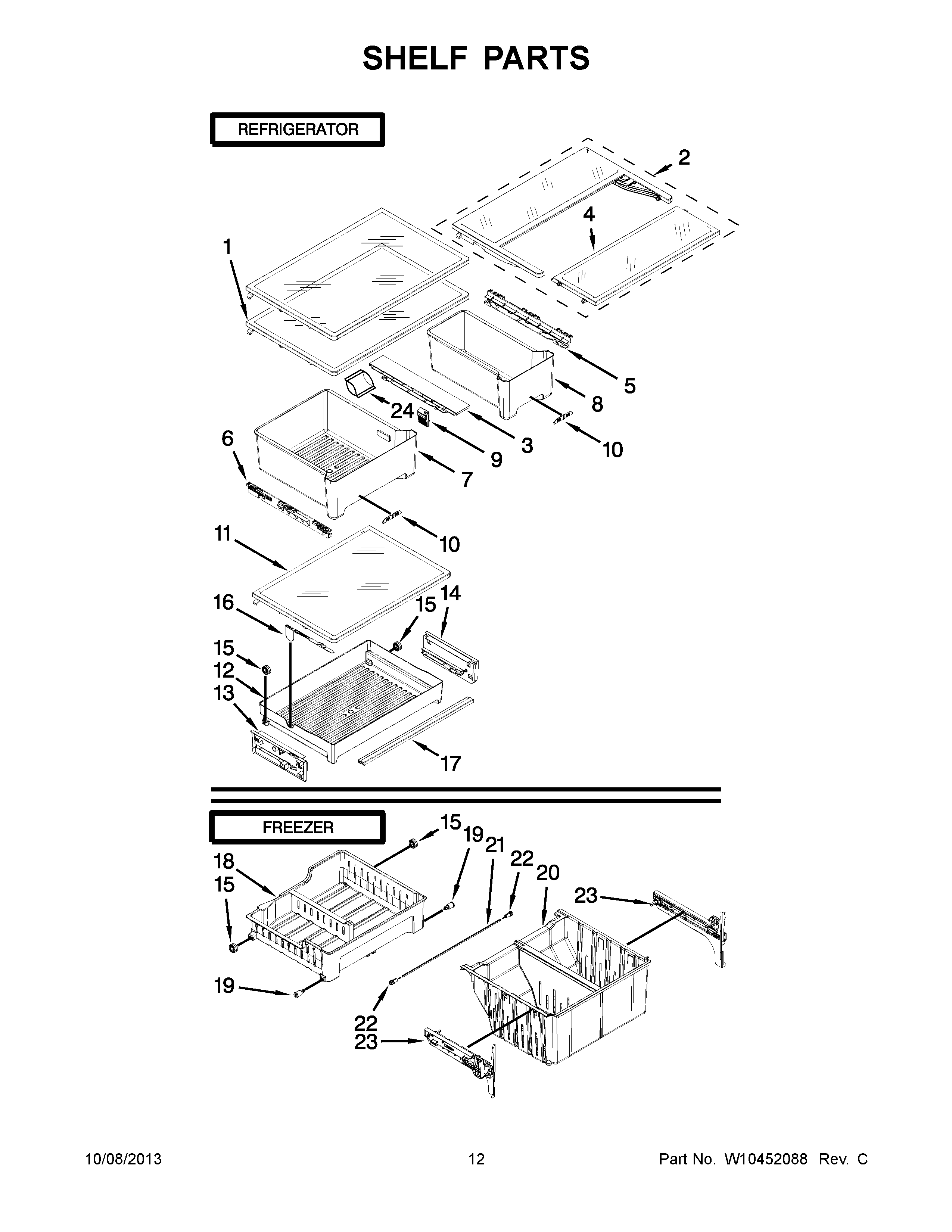

MFB2055YEM00 07 – SHELF PARTS

MFB2055YEM00 07 – SHELF PARTS

Written by

in

MFB2055YEM00 07 – SHELF PARTS

Products

PositionProduct
1SHELF FULL 30“
2ASSEMBLY, FLIP DOWN SHELF
3MAY W10404446
4SHELF, FLIP DOWN
5TRACK RAIL RS
6TRACK RAIL LS
7PAN, CRISPER (16")
8PAN, CRISPER (8")
9MAY W10408748
10CONTROL, HUMIDITY
11MAY W10361490
12ASSEMBLY, PANTRY DELI PAN
13RAIL, PANTRY (LEFT HAND)
14RAIL, PANTRY (RIGHT HAND)
15MAY W10278139
16MAY W10411411
17MAY W10397911
18MAY W10317232
19MAY W10257246
20BASKET, LOWER FREEZER
21MAY W10371538
22COLLAR, GEAR
23ADAPTOR, FREEZER (RIGHT HAND)
23ADAPTOR, FREEZER (LEFT HAND)
24MAY W10346771
