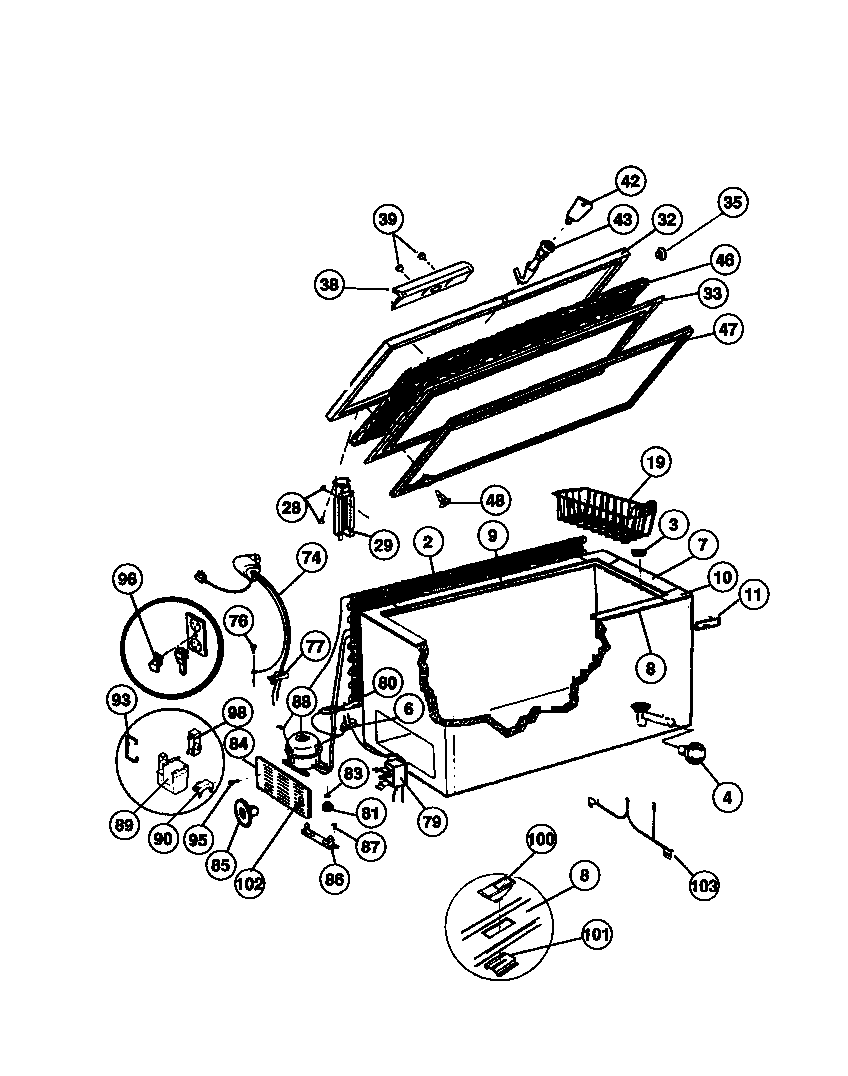

MFC15M3BW1 02 – DOOR, CABINET, AND UNIT

MFC15M3BW1 02 – DOOR, CABINET, AND UNIT

Written by

in

MFC15M3BW1 02 – DOOR, CABINET, AND UNIT

Products

PositionProduct
2WCI 5303280307
3WCI 216208300
4WCI 5300128045
6GROMMET-CONTROL TUBE
7Breaker,white ,ends
8WCI 216111600
9BREAKER, HINGE SIDE
10Breaker,white ,corners
11FRAME – NAMEPLATE,WHITE
19WCI 216080300
28WCI 5309950602
29297321900 Frigidaire Refrigerator Hinge Assembly
32WCI 216129912
33WCI 216057804
35WCI 216141101
38WCI 216205001
39WCI 5309948647
42297147700 Frigidaire Freezer Plastic Door Key
43WCI 5303925107
46WCI 5300128901
47216481211 Frigidaire Refrigerator Door Gasket
485303212828 Frigidaire Refrigerator Primary Clip
74WCI 216089600
76216036601 Frigidaire Refrigerator Screw
775303212614 Frigidaire Refrigerator Clip
79CONTROL TEMP.
805303305677 Frigidaire Replacement Filter Dryer Filters
81218513300 Frigidaire Refrigerator Compressor Mount Grommet
83CLIP, SPRING MTG
84WCI 216022700
85WCI 216034510
86WCI 5303212615
87SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88WCI 216138400
89WCI 216008900
90WCI 5303206885
93WCI 216147800
95216858001 Frigidaire Refrigerator Screw
96RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
985304464438 Frigidaire Compressor Run Capacitor
100LATCH, DOOR
101WCI 216080800
102PLUG-INDICATOR
103WCI 5303294326
