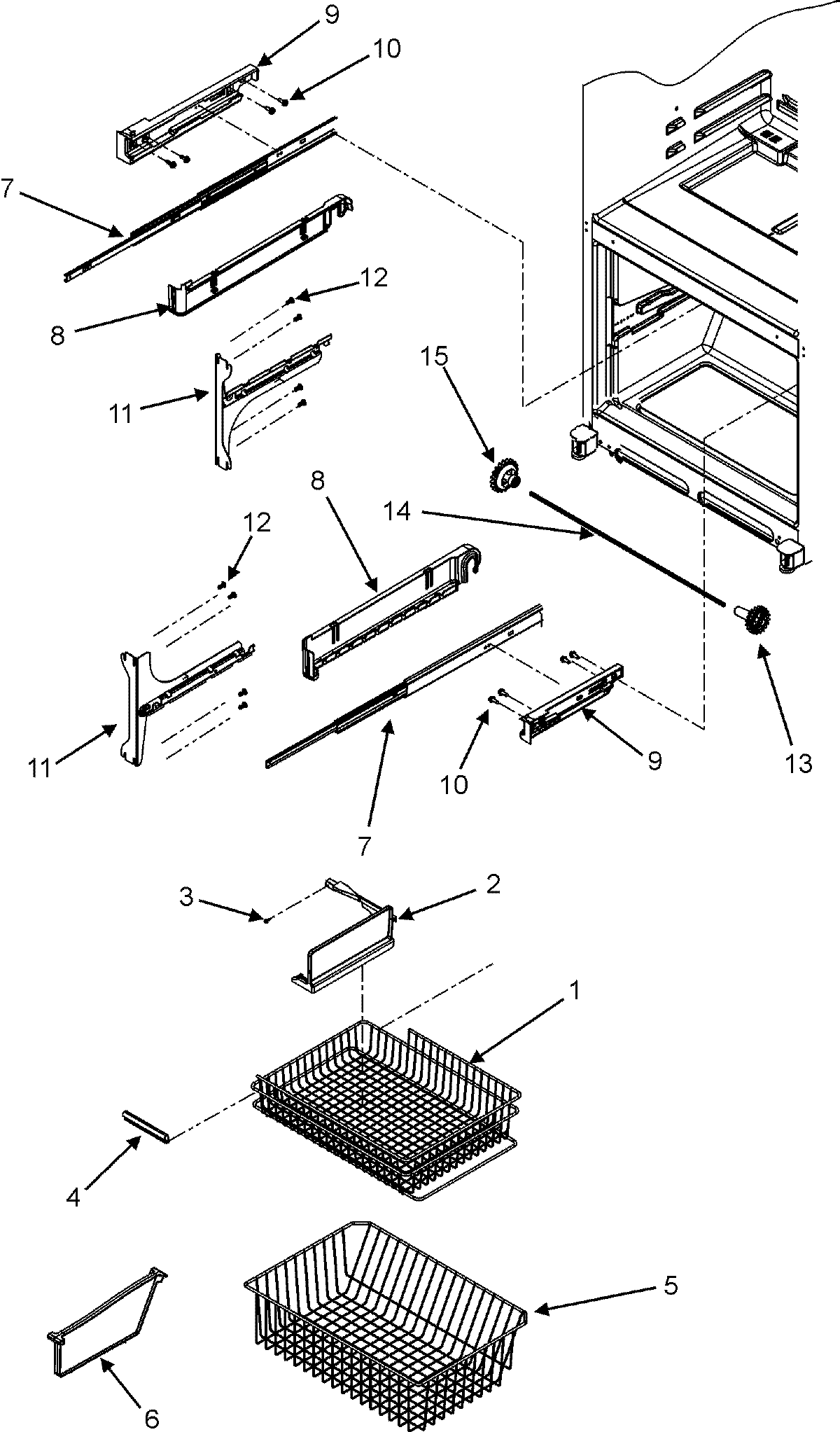

MFC2061HEB 07 – FREEZER SHELVES

MFC2061HEB 07 – FREEZER SHELVES

Written by

in

MFC2061HEB 07 – FREEZER SHELVES

Products

PositionProduct
1MAY 67004988
2MAY 67001723
3MAY 67001310
4HANDLE, BASKET/SHELF
5W10503185 Whirlpool Dishwasher Cutlery Basket
6DIVIDER, BASKET (LWR)
7SLIDE, DRAWER xx
8W10251557 Whirlpool Refrigerator Bracket
8MAY 67004728
9MAY 67004972
9W10284690 Whirlpool Refrigerator Bracket
10SCREW 1“
11WPW10330993 Whirlpool Refrigerator Bracket
11WPW10330991 Whirlpool Refrigerator Bracket
12MAY M0211018
13GEAR (LT)
14W11028221 Whirlpool Refrigerator Shaft
15GEAR (RT)
