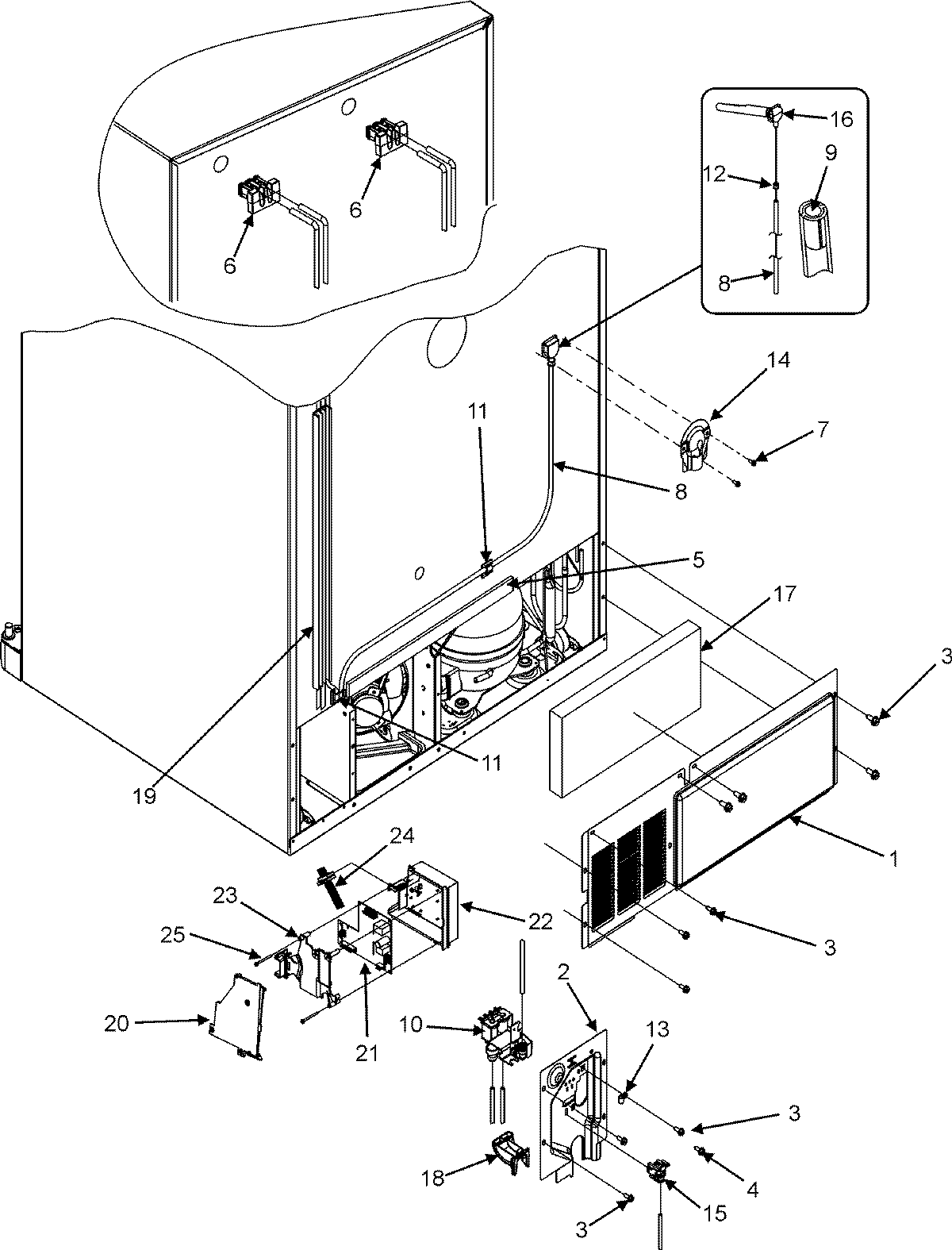

MFC2061HES 01 – CABINET BACK

MFC2061HES 01 – CABINET BACK

Written by

in

MFC2061HES 01 – CABINET BACK

Products

PositionProduct
1BACK, MACH COMP
2MAY 67004098
3MAY M0238616
4681390 Whirlpool Refrigerator Screw
5Gasket
6WP12777701 Whirlpool Refrigerator Filler Block
7MAY M0211018
8Tubing, Plastic
9MAY A3223101
10WP67005154 Whirlpool Water Valve
11WPM0104106 Whirlpool Refrigerator Clip
12Clip
13W10833902 Whirlpool Refrigerator Clamp
14COVER, WATER LINE
15MAY 67004100
16ELBOW, FILL TUBE
1767003796 Whirlpool Refrigerator Fiber Acoustic
1812831101 Whirlpool Refrigerator Tube Clamp
19TRACK, WATERLINE
20MAY 67005332
20MAY 67005421
21MAY 12002610
22MAY 67004969
23MAY 67005418
2467005419 Whirlpool Refrigerator HV Board Harness
25MAY 67005420
26WP67006506 Whirlpool Refrigerator Power Cord
