MFC2061HES 12 – PANTRY ASSEMBLY

MFC2061HES 12 – PANTRY ASSEMBLY

Written by

in

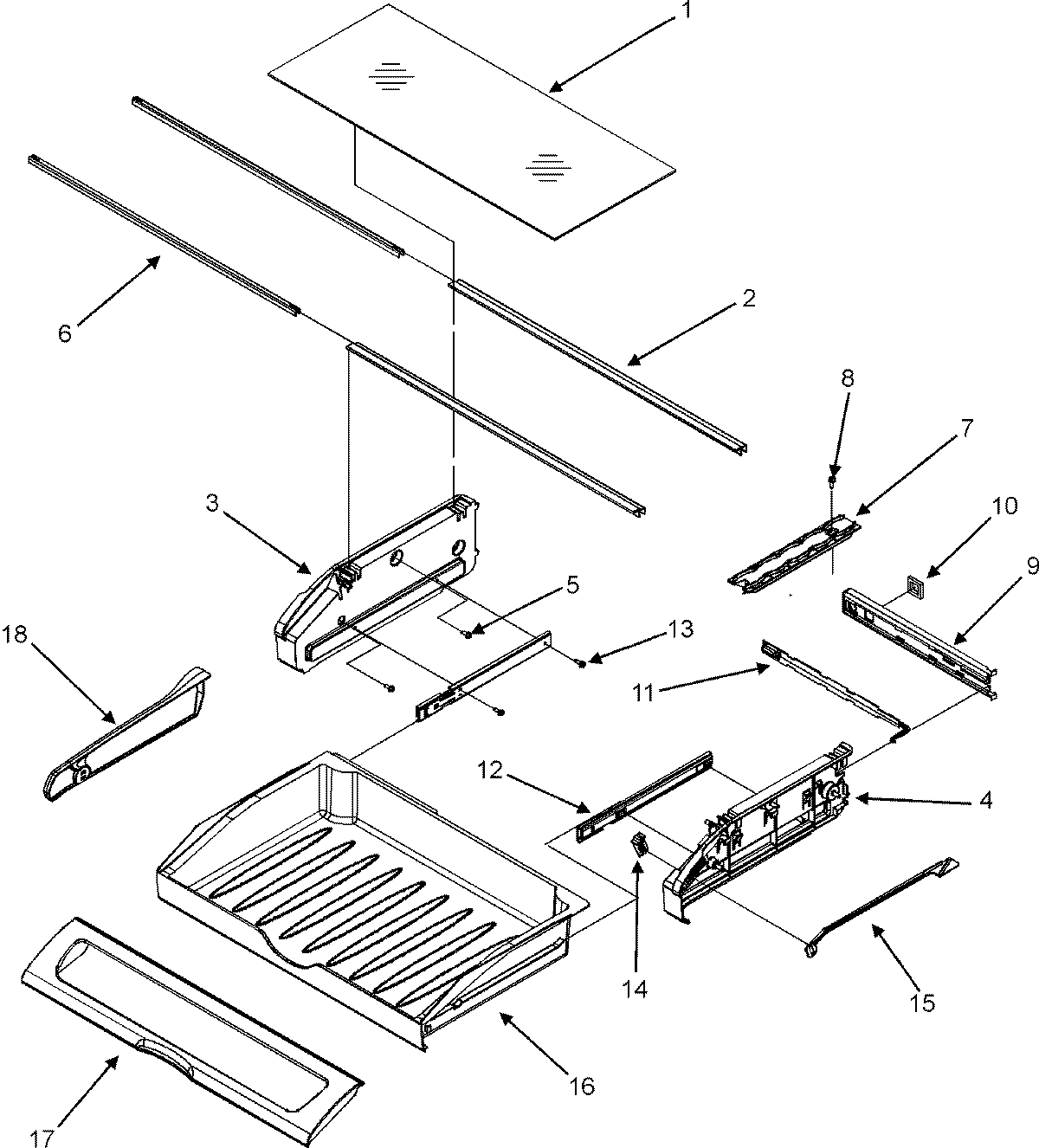

MFC2061HES 12 – PANTRY ASSEMBLY

Products

PositionProduct
1WP67002332 Whirlpool Refrigerator Glass Pan
2WP67006010 Whirlpool Refrigerator Shelf Trim
3WP12656105 Whirlpool Drawer Support
4WP12656018 Whirlpool Drawer Support
5MAY M0238636
6WP12227305WD Whirlpool Drawer Support
7WP67001719 Whirlpool Refrigerator Track
9MAY 67002328
9SCREW, SM
1067002329 Whirlpool Refrigerator Pantry Gasket
11MAY 67003793
12WPW10235370 Whirlpool Refrigerator Glide
13MAY M0211533
14W11498983 Whirlpool Refrigerator Knob
15MAY 67003794
16W11490183 Whirlpool Refrigerator Utility Pan
17W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
18WP67002321 Whirlpool Refrigerator Divider Panel
