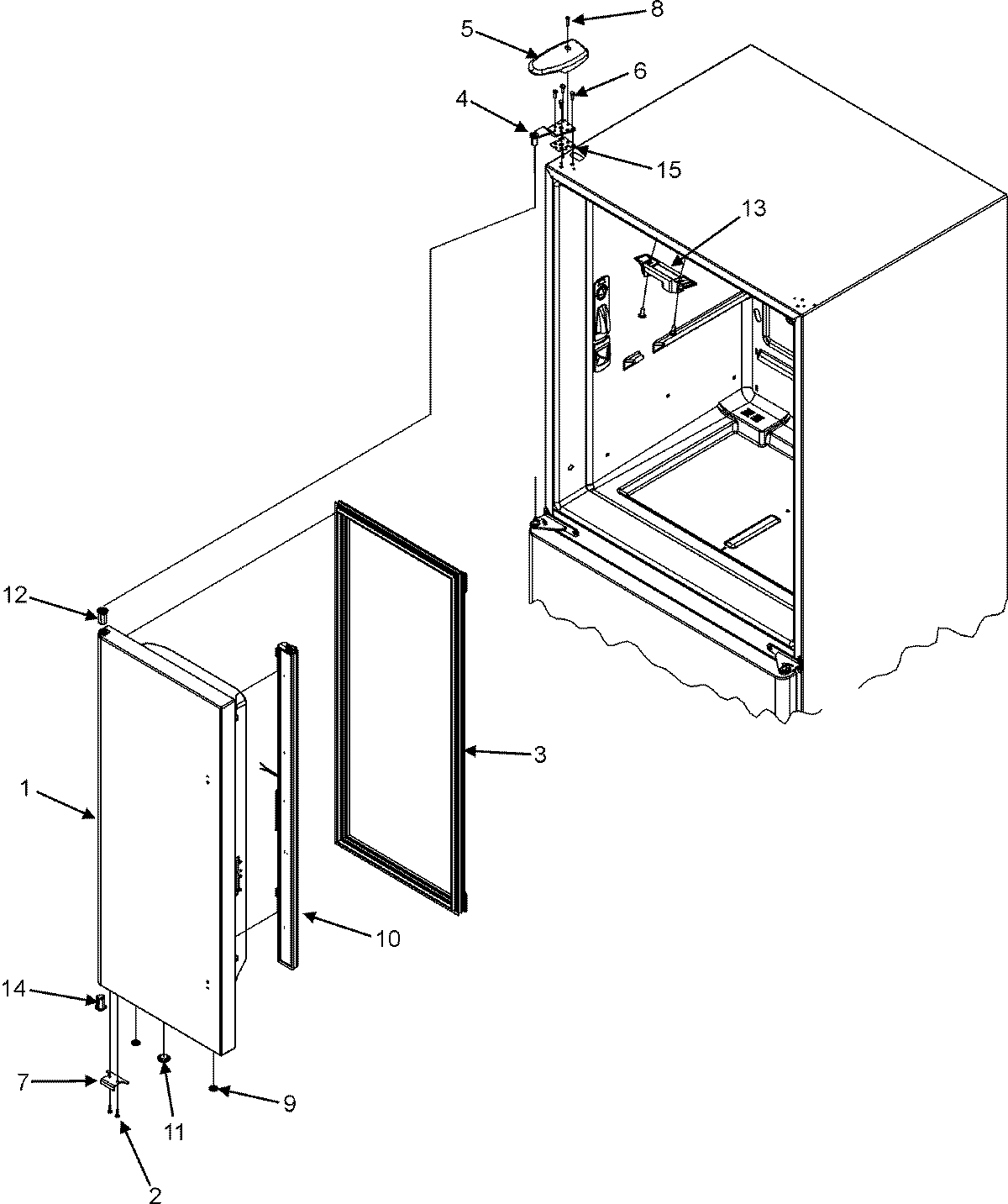

MFC2061HEW 12 – LEFT REFRIGERATOR DOOR

MFC2061HEW 12 – LEFT REFRIGERATOR DOOR

Written by

in

MFC2061HEW 12 – LEFT REFRIGERATOR DOOR

Products

PositionProduct
1DOOR ASSY., LT REF. FOAM (WHT)
1MAY 67002713
2MAY M0211533
3W10830189 Whirlpool Refrigerator Door Gasket
4WP12566607ED Whirlpool Refrigerator Door Hinge
5MAY 12684201W
6MAY M0238731
7STOP, DOOR (WHT)
712968202W Whirlpool Refrigerator Door Stop
8WP8281196 Whirlpool Screw
910712401 Whirlpool Refrigerator Vent Plug (White)
10RAIL-MULLN WHITE
10MAY 67004639
11MAY A3080002
12BUSHING, DOOR UPPER LEFT (WHITE)
13MAY M0214931
13WP67003405 Whirlpool Pivot Block
1467002722 Whirlpool Refrigerator White Door Bushing
15MAY 12579702
