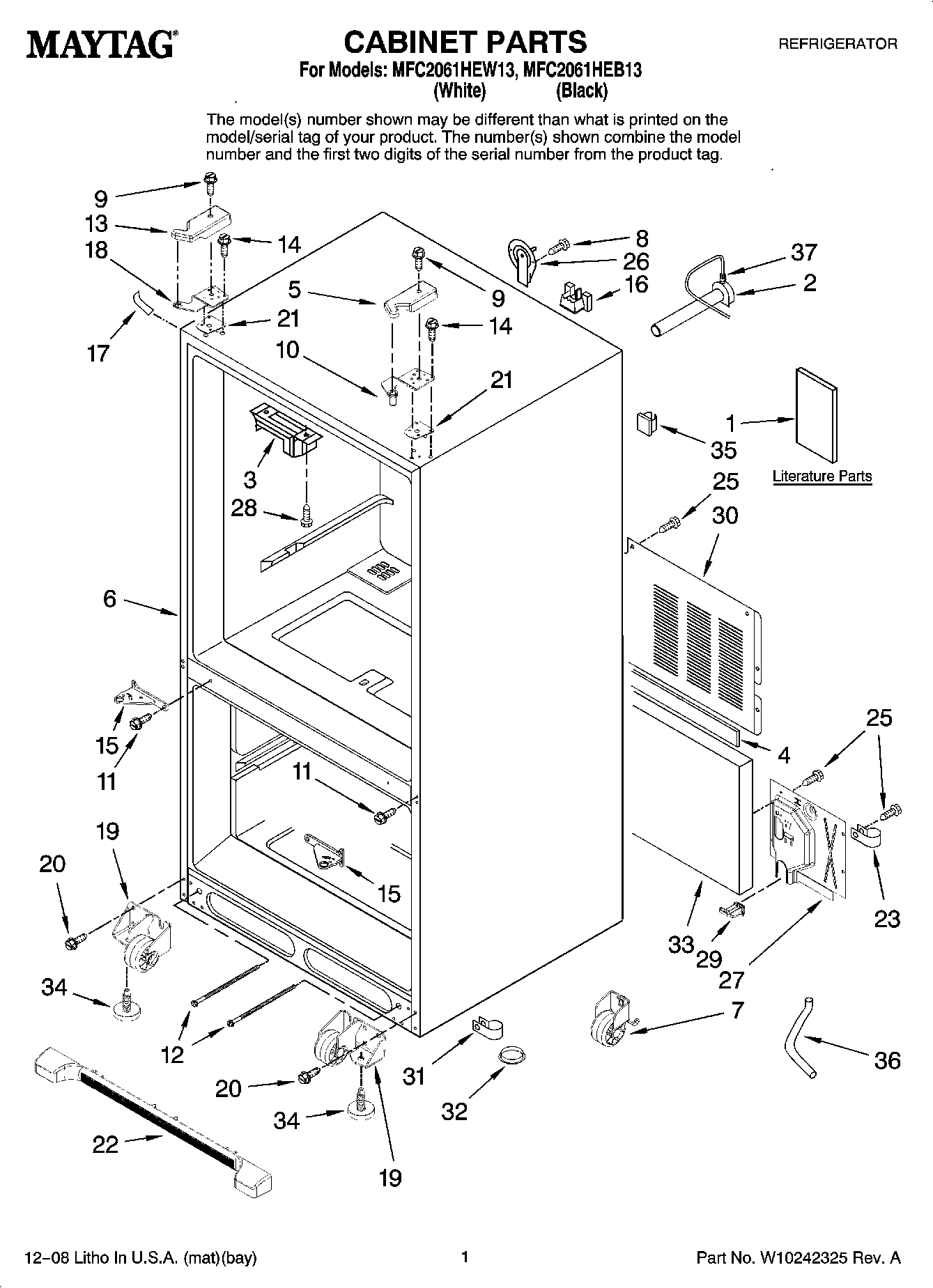

MFC2061HEW13 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	Energy Guide
1	MAY 67006616
2	MAY W10137519
3	WP67003405 Whirlpool Pivot Block
4	Gasket
5	MAY 12684202B
5	MAY 8208261
7	Roller Assy.(Rear)
8	WP98165 Whirlpool Screw
9	WP8281196 Whirlpool Screw
10	Hinge, Top
11	WP67006380 Whirlpool Screw
12	MAY 67006697
13	MAY 8208248
13	MAY 12684201W
14	WP489349 Whirlpool Refrigerator Screw
15	67006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
15	MAY 67006379
15	W10918113 Whirlpool Refrigerator Door Hinge
15	W10918168 Whirlpool Refrigerator Door Hinge
16	WP12777701 Whirlpool Refrigerator Filler Block
17	67003484 Whirlpool Refrigerator White Corner Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	Hinge, Top Left
19	ROLLER ASSY.(FRONT) (RIGHT)
19	ROLLER ASSY.(FRONT) (LEFT)
20	MAY 67006564
21	MAY 12579702
22	Grille Assembly (Includes Clips) (Black)
22	MAY W10131133
23	W10833902 Whirlpool Refrigerator Clamp
25	Screw (10)
26	COVER, WATER LINE
27	MAY 67004098
28	WP7101P126-60 Whirlpool Screw
29	12831101 Whirlpool Refrigerator Tube Clamp
30	MAY 67006101
31	67001067 Whirlpool Refrigerator Drain Tube Clip
32	A3076901 Whirlpool Refrigerator Plug
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	Brake, Foot
35	WPM0104106 Whirlpool Refrigerator Clip
36	MAY 67001066
37	Clip
