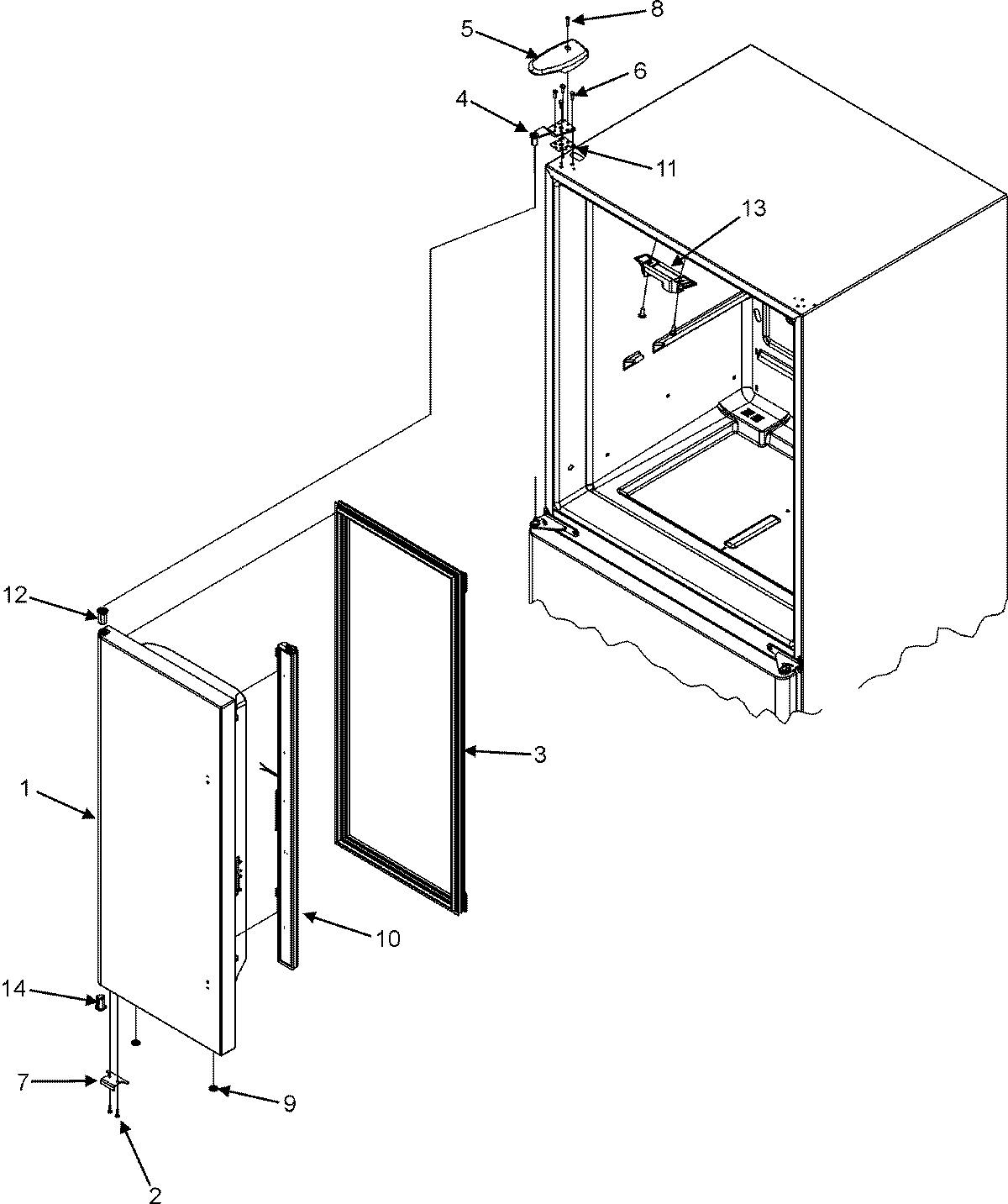

MFC2061KEQ 10 – LEFT REFRIGERATOR DOOR

MFC2061KEQ 10 – LEFT REFRIGERATOR DOOR

Written by

in

MFC2061KEQ 10 – LEFT REFRIGERATOR DOOR

Products

PositionProduct
1MAY 67006946
2WP98165 Whirlpool Screw
3W10830189 Whirlpool Refrigerator Door Gasket
4WP12566607ED Whirlpool Refrigerator Door Hinge
5MAY 12684201W
6WP489349 Whirlpool Refrigerator Screw
7STOP, DOOR (BSQ)
8WP8281196 Whirlpool Screw
910712401 Whirlpool Refrigerator Vent Plug (White)
10MAY 67006786
10RAIL-MULLN WHITE
11MAY 12579702
12BUSHING, DOOR UPPER LEFT (WHITE)
13SCREW
13WP67003405 Whirlpool Pivot Block
1467002722 Whirlpool Refrigerator White Door Bushing
