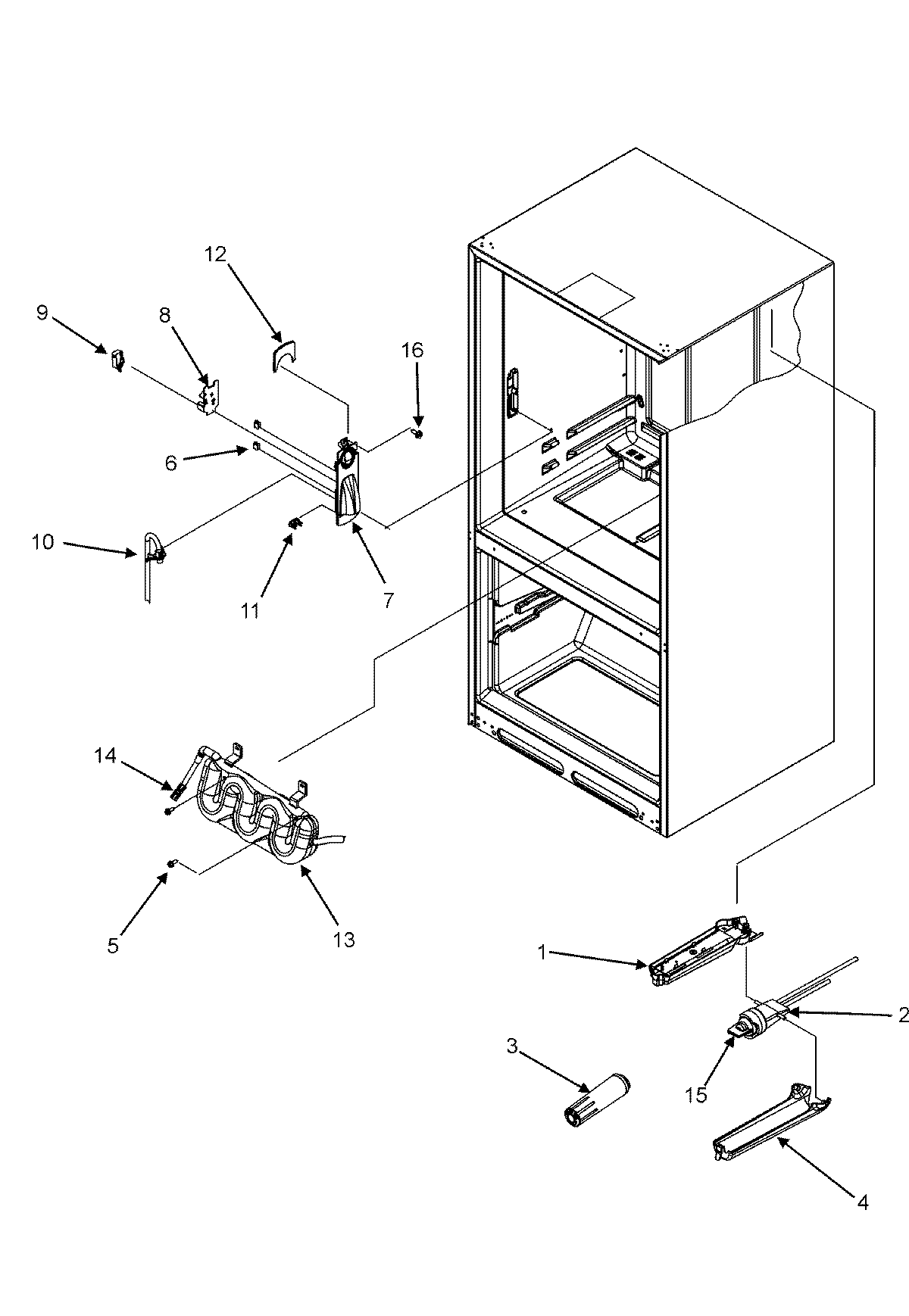

MFC2061KEQ 16 – WATER DISPENSER/WATER TANK/WATER FILTER

MFC2061KEQ 16 – WATER DISPENSER/WATER TANK/WATER FILTER

Written by

in

MFC2061KEQ 16 – WATER DISPENSER/WATER TANK/WATER FILTER

Products

PositionProduct
1PLATE-FIL
2WP67006524 Whirlpool Refrigerator Housing
3FILTER, WATER SINGLE
4WP12568001 Whirlpool Filter Cover
5WP98165 Whirlpool Screw
6Clip, Facade (2)
7FACADE, DISPENSER
812707303SP Whirlpool Refrigerator Plate
9WP12575501 Whirlpool Refrigerator Micro Switch
10MAY 67003728
1167002816 Whirlpool Refrigerator Waterline Clip
12W11519867 Whirlpool Refrigerator Cover
13W11361728 Whirlpool Reservoir Assembly
14WP2300868 Whirlpool Refrigerator Fitting
15MAY 12664501
16MAY 67006400
