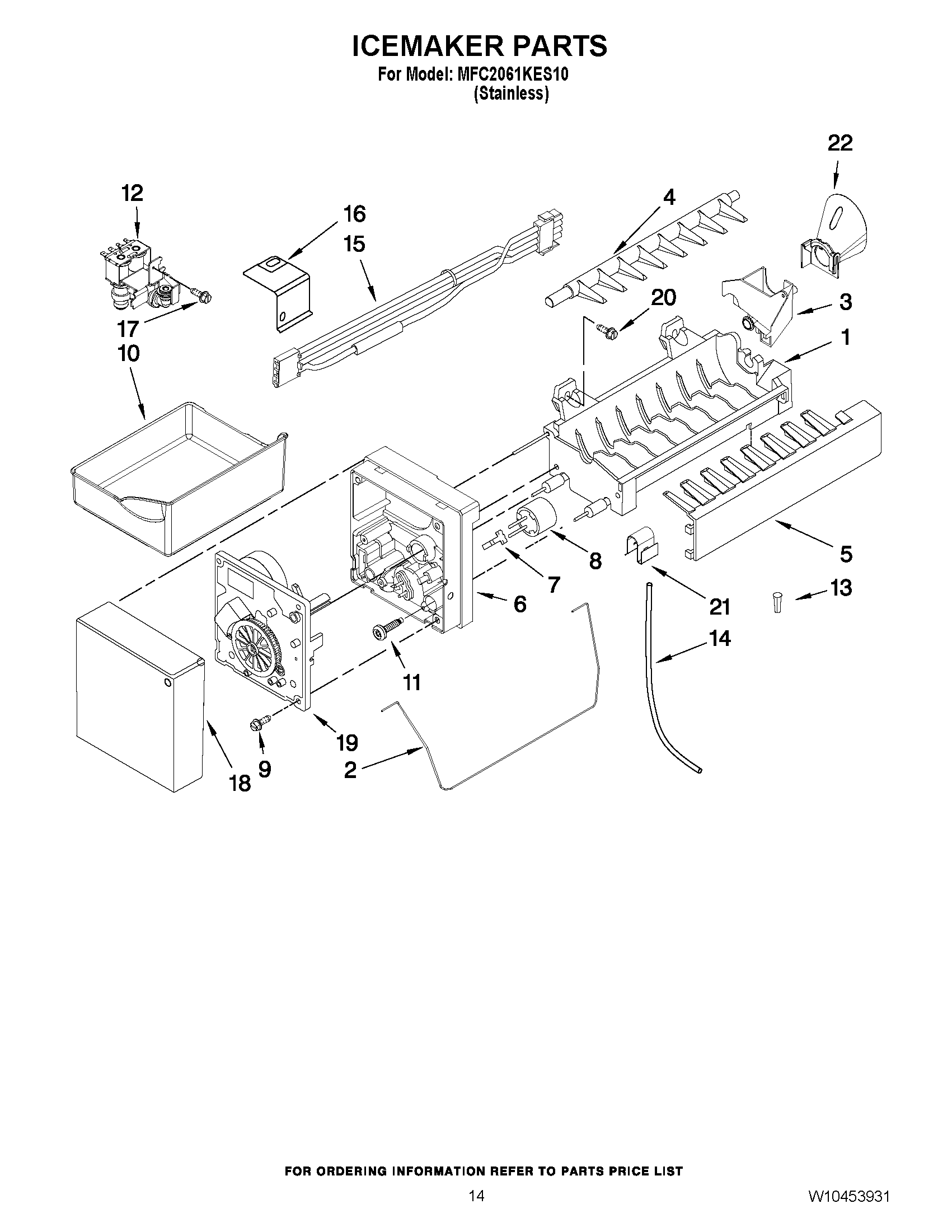

MFC2061KES10 08 – ICEMAKER PARTS

Products

Position	Product
NI	W11033771 Whirlpool Refrigerator Coupling
1	ASSEMBLY, MOLD AND HEATER
2	ARM-SHUT OFF
3	CUP, FILL
4	MAY W10318914
5	ICE STRIPPER
6	Support & Motor Assembly
7	MAY 2315522
8	MAY W10290336
9	Screw (3)
10	MAY W10171529
11	MAY 8533917
12	VALVE, WATER INLET
13	MAY A3223101SP
14	TUBING, PLASTIC
15	MAY W10404661
16	MAY 2256086
17	MAY 12991604
18	COVER
19	ASSEMBLY, MODULE AND MOTOR
20	Screw (3)
21	Clip
22	FUNNEL, FILL TUBE
100	ICEMAKER ASSEMBLY (COMPLETE)
