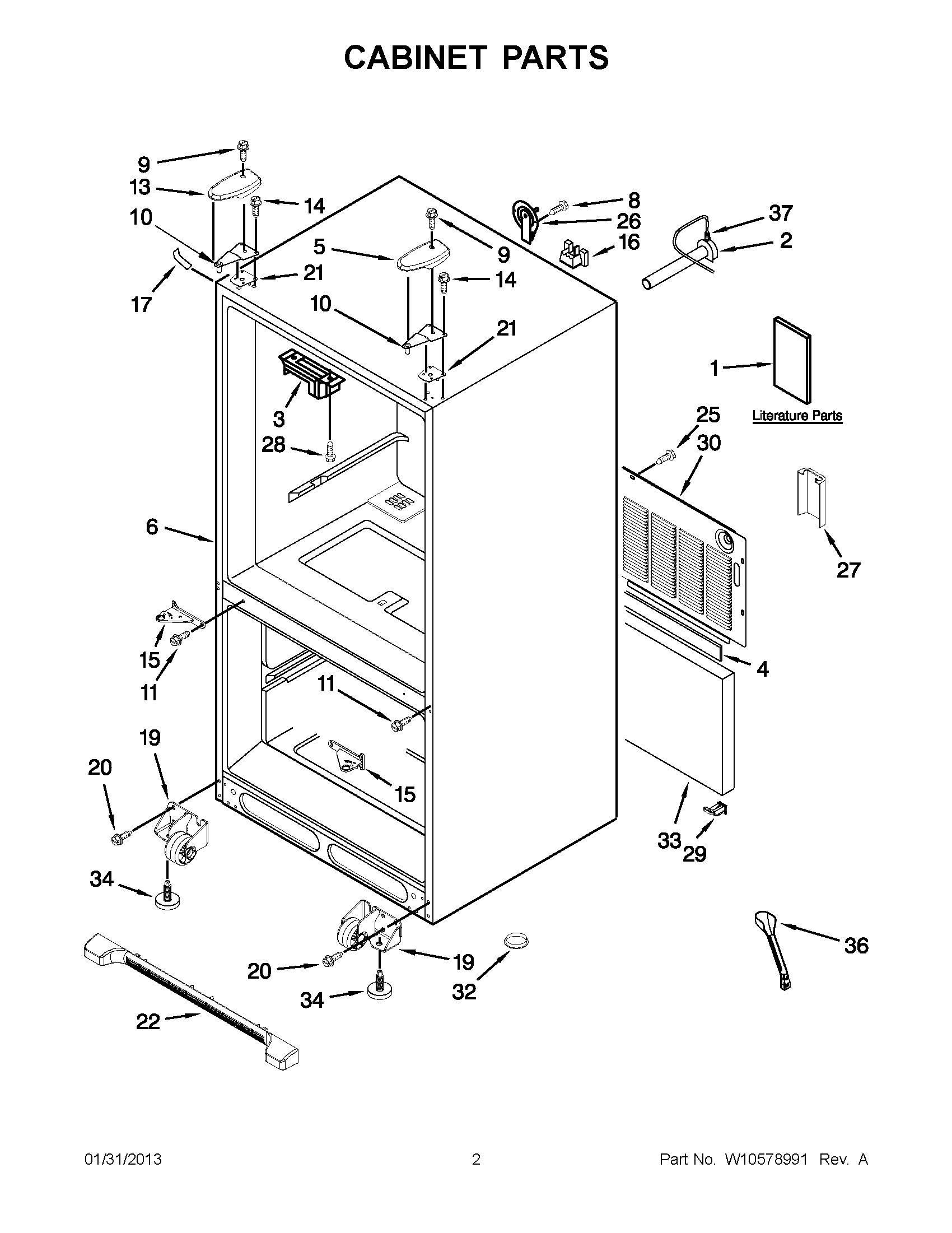

MFC2061KES14 01 – CABINET PARTS

Products

Position	Product
1	MAY W10544193
1	MAY W10215643
1	MAY W10366206
2	MAY 10463203
3	Block, Pivot
4	MAY B5759655
5	MAY 12684202B
6	LINER (NOT A SERVICEABLE PART)
8	MAY 12990504
9	MAY 12992602
10	MAY 12566607ED
10	MAY 12566606ED
11	MAY W10339086
13	COVER, LEFT HINGE
14	SCREW (6)
15	HINGE, CENTER (BLACK, RIGHT )
15	HINGE, CENTER (BLACK, LEFT)
16	MAY 12777701
17	COVER, CORNER (BLACK)
19	ROLLER ASSEMBLY (RIGHT HAND)
19	ROLLER ASSEMBLY (LEFT HAND)
20	Screw (8)
21	MAY 12579702
22	MAY W10244561N
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	Screw (4)
29	MAY W10528513
30	MAY W10211855
32	A3076901 Whirlpool Refrigerator Plug
33	Insulation, Sound
34	Brake, Foot
36	TUBE-DRAIN
37	Clip
