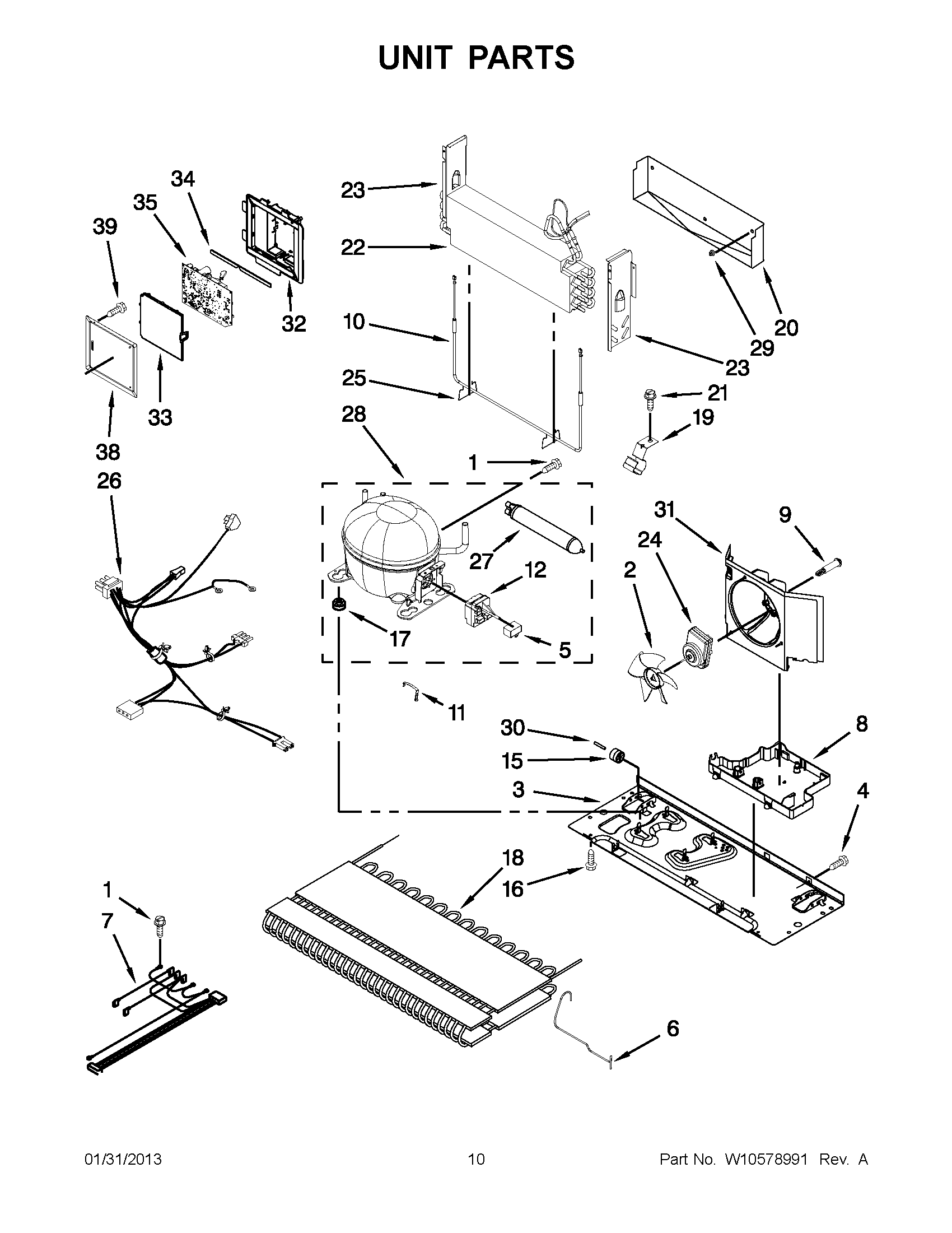

MFC2061KES14 05 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (1/2“)
NI	MAY 876764
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480111
4	SCREW (10)
5	MAY W10350564
6	MAY W10233569
7	HARNESS, EVAP. (HEATER)
8	MAY W10296785
9	MAY W10216919
10	EVAPORATOR HEATER
11	MAY W10216075
12	START DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10346415
19	MAY W10281329
20	MAY W10292803
21	MAY 12990701
22	MAY W10317014
23	DAM (LEFT SIDE)
23	Dam (Right Side)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	MAY W10234025
27	Drier
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	MAY W10257665
33	MAY 12957702SP
34	MAY 12957801SP
35	BOARD, HV CONTROL
38	MAY 12961602
39	SCREW
