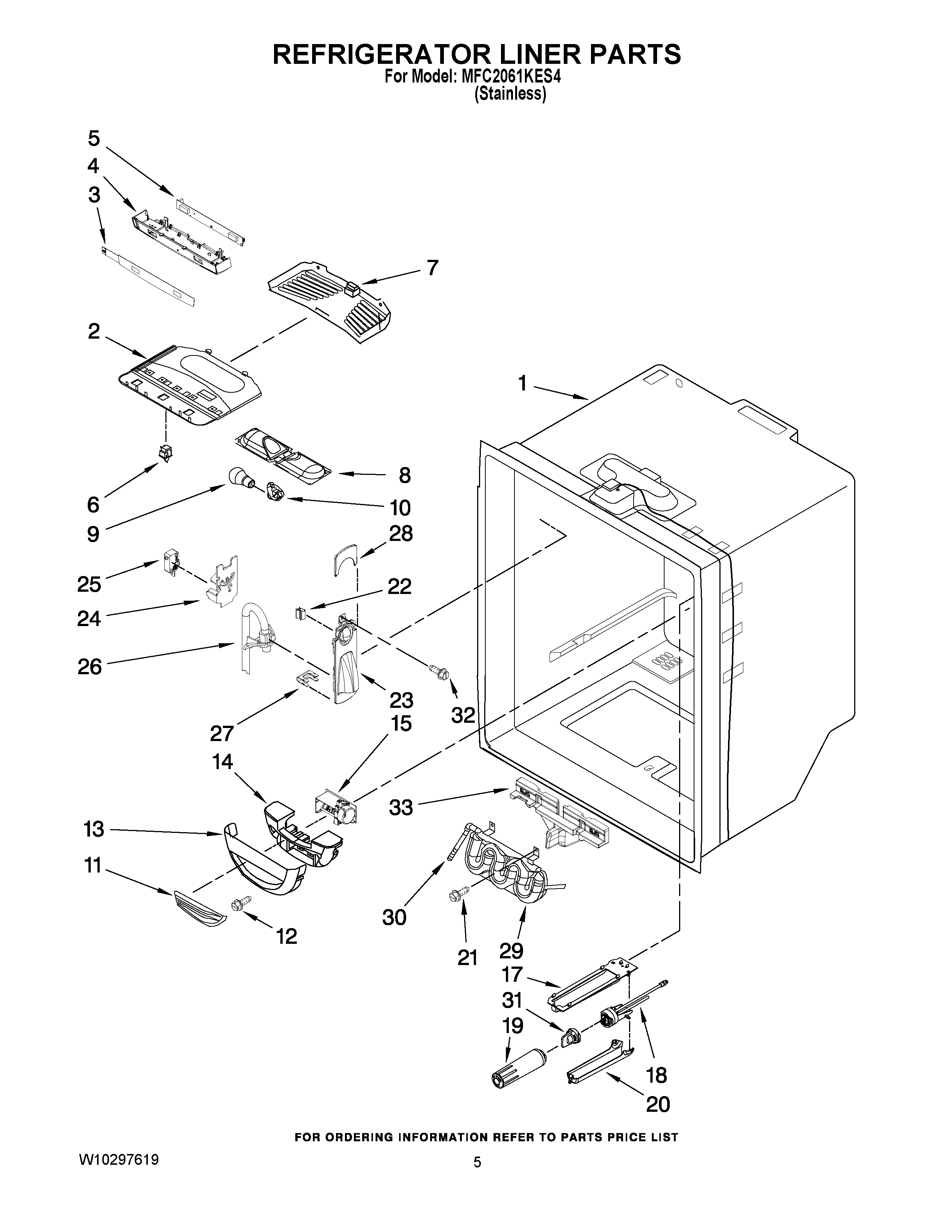

MFC2061KES4 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	MAY W10224292
1	LINER (NOT A SERVICEABLE PART)
2	MODULE, LIGHT
3	OVERLAY
4	MODULE, CONTROL
5	MAY W10217475
6	SWITCH, LIGHT (2)
7	MAY 12806501
8	MAY 12806601V
9	Bulb, Light (2)
10	Socket, Light
11	MAY 12806801
12	MAY 12990604
13	MAY 12806701
14	INSULATION
15	MAY W10207517
17	PLATE
18	MAY 12590620
19	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
20	WP12568001 Whirlpool Filter Cover
21	SCREW (2)
22	MAY B8390302SP
23	MAY 12706909SP
24	MAY 12707303SP
25	WP12575501 Whirlpool Refrigerator Micro Switch
26	MAY 12707206SP
27	MAY 12251001SP
28	FACADE, DISP (TOP)
29	MAY 12706112
30	WP2300868 Whirlpool Refrigerator Fitting
31	MAY 12664501SP
32	MAY 12990513
33	Insulation, Tank
