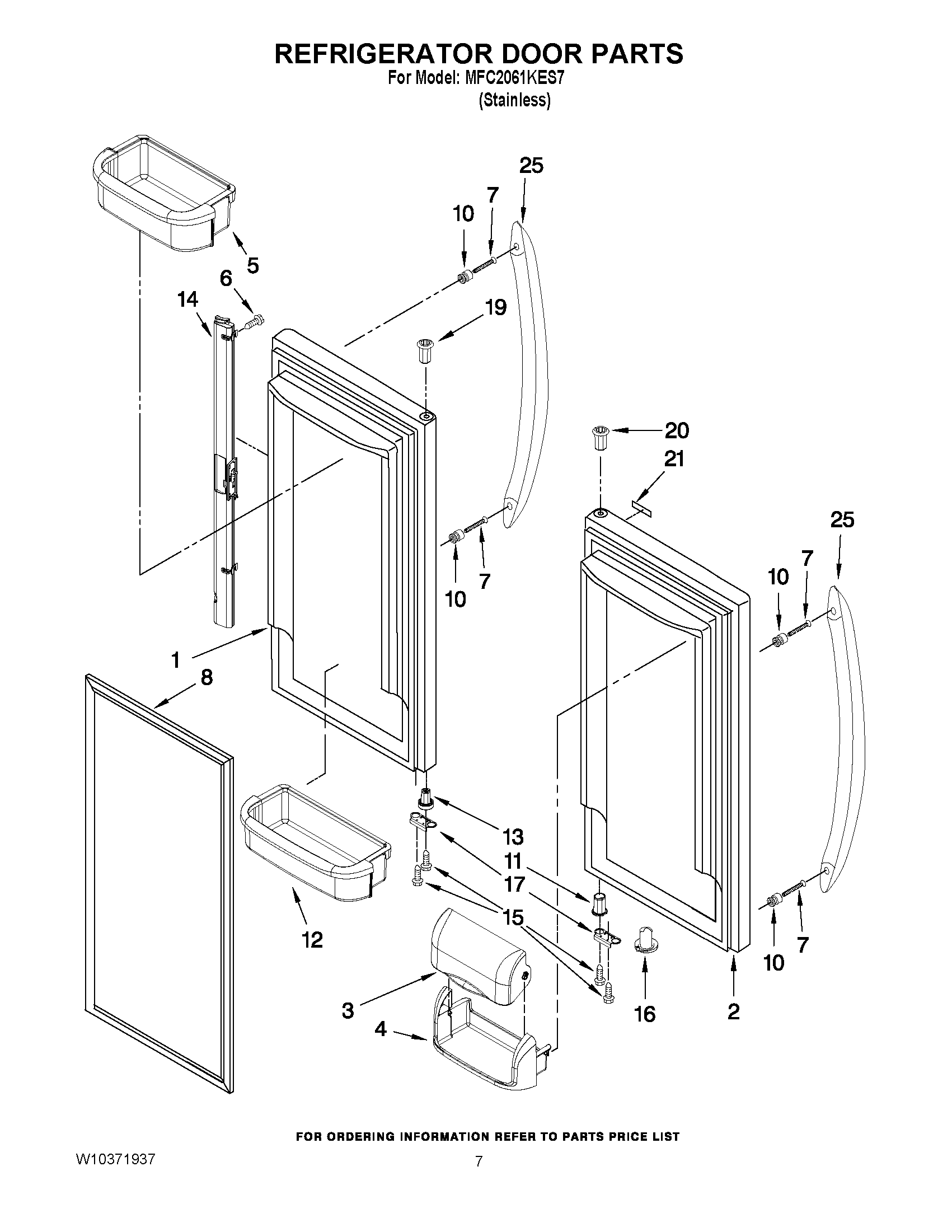

MFC2061KES7 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (STAINLESS)
2DOOR, RIGHT (STAINLESS)
3MAY 12804701SP
4MAY 12369502SP
5MAY 12801902
6MAY 12990204
7SCREW
8MAY W10163895
10MAY 13001201
11BUSHING, DOOR (BOTTOM RIGHT) (BLACK)
12MAY 12840001
13BUSHING, DOOR (BOTTOM LEFT) (BLACK)
14MAY 12732501B
15MAY 12990504
16MAY 12028505B
17MAY 12968202B
19BUSHING, DOOR (BLK)
20Bushing (Black)
21Nameplate
25HANDLE, DOOR (APOLLO GREY)
