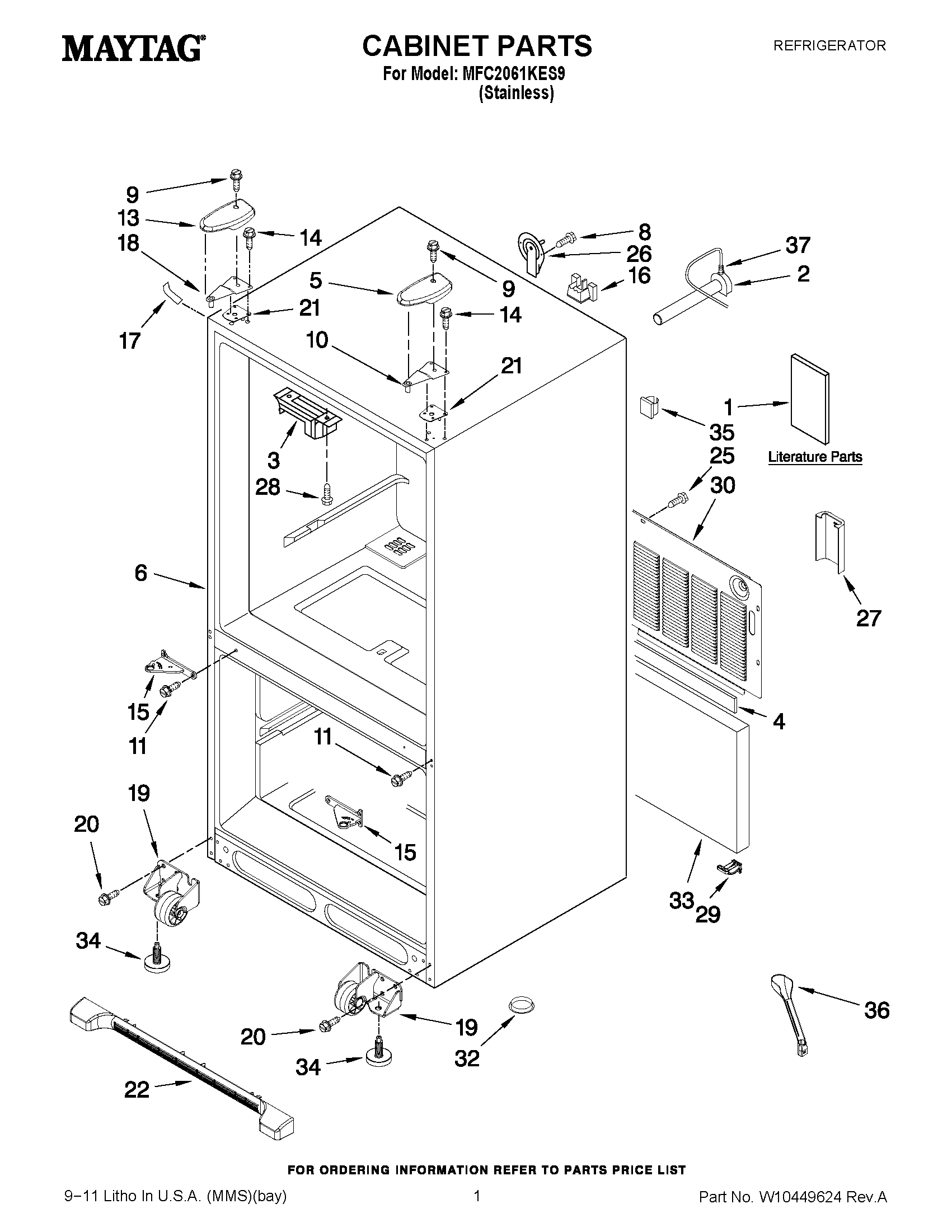

MFC2061KES9 01 – CABINET PARTS

Products

Position	Product
1	MAY W10366206
1	MAY W10414027
1	MAY W10215643
2	MAY 10463203SP
3	Block, Pivot
4	MAY B5759655
5	MAY 12684202B
6	LINER (NOT A SERVICEABLE PART)
8	MAY 12990504
9	MAY 12992602
10	MAY 12566606ED
11	SCREW (6)
13	COVER, LEFT HINGE
14	SCREW (6)
15	HINGE, CENTER (BLACK, LEFT)
15	HINGE, CENTER (BLACK, RIGHT )
16	MAY 12777701
17	COVER, CORNER (BLACK)
18	MAY 12566607ED
19	ROLLER ASSY. (FRONT) (LEFT)
19	ROLLER ASSY. (FRONT) (RIGHT)
20	Screw (8)
21	MAY 12579702
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	SCREW (2)
29	MAY 12831101
30	MAY W10211855
32	A3076901 Whirlpool Refrigerator Plug
33	Insulation, Sound
34	Brake, Foot
35	WPM0104106 Whirlpool Refrigerator Clip
36	MAY W10210988
37	CLIP
