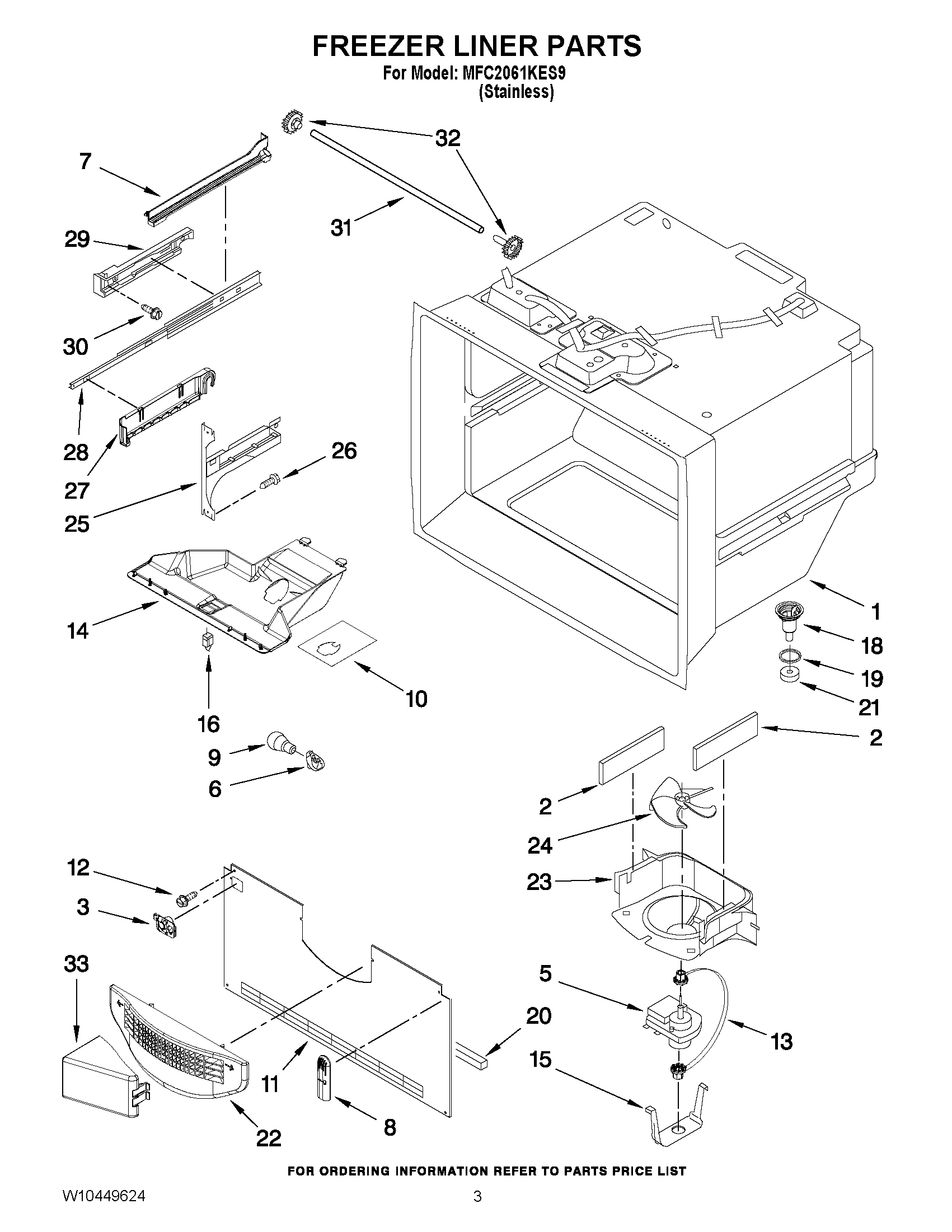

MFC2061KES9 02 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY 12932103
5	MAY W10128551
6	Socket, Light
7	MAY W10284696
7	MAY W10284697
8	MAY 12815301
9	BULB, LIGHT (2)
10	FOIL-FZ LIGHT
11	MAY W10308416
12	SCREW (10)
13	MAY W10121318
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
18	MAY D7753903
19	MAY M0500703
20	GASKET, BOTTOM
21	Gasket
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10330993
25	MAY W10330991
26	Screw (8)
27	CRADLE, BASKET (RIGHT)
27	CRADLE, BASKET (LEFT)
28	Slide, Drawer (2)
29	BRACKET, SLIDE (LEFT)
29	BRACKET, SLIDE (RIGHT)
30	Screw (6)
31	SHAFT
32	12002497 Whirlpool Refrigerator Drawer Gear Kit
33	MAY W10157765
