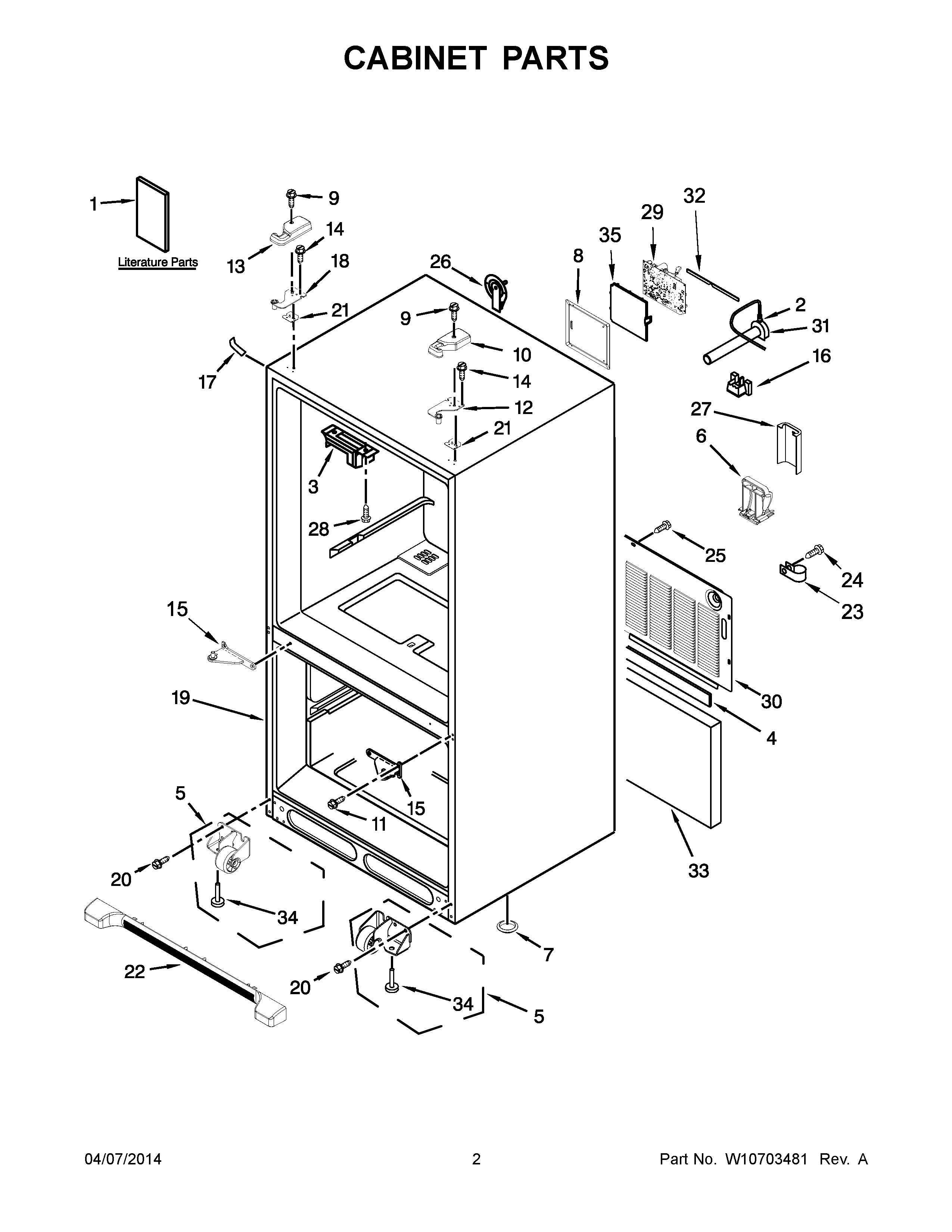

MFC2062DEM00 02 – CABINET PARTS

Products

Position	Product
1	MAY W10621529
1	MAY W10636717
1	MAY W10678168
2	Clip
3	Block, Pivot
4	MAY B5759655
5	ROLLER ASSEMBLY (LEFT HAND)
5	ROLLER ASSEMBLY (RIGHT HAND)
6	MAY W10528513
7	A3076901 Whirlpool Refrigerator Plug
8	MAY 12961602
9	MAY 12992602
10	COVER, RIGHT HINGE (GREY)
11	MAY W10339086
12	MAY 12963205EDN
13	MAY 12962301AP
14	SCREW (6)
15	HINGE, CENTER (RT) (GREY)
15	HINGE, CENTER (LT) (GREY)
16	MAY W10658542
17	COVER, CORNER (GREY)
18	MAY 12963204EDN
19	LINER (NOT A SERVICEABLE PART)
20	Screw (8)
21	MAY 12999502
21	MAY 12999501
22	MAY W10534155
23	CLAMP, TUBE
24	MAY 12990504
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	Screw (4)
29	BOARD, HV CONTROL
30	MAY W10211855
31	MAY 10463203
32	MAY 12957801SP
33	Insulation, Sound
34	Brake, Foot
35	MAY 12957702SP
