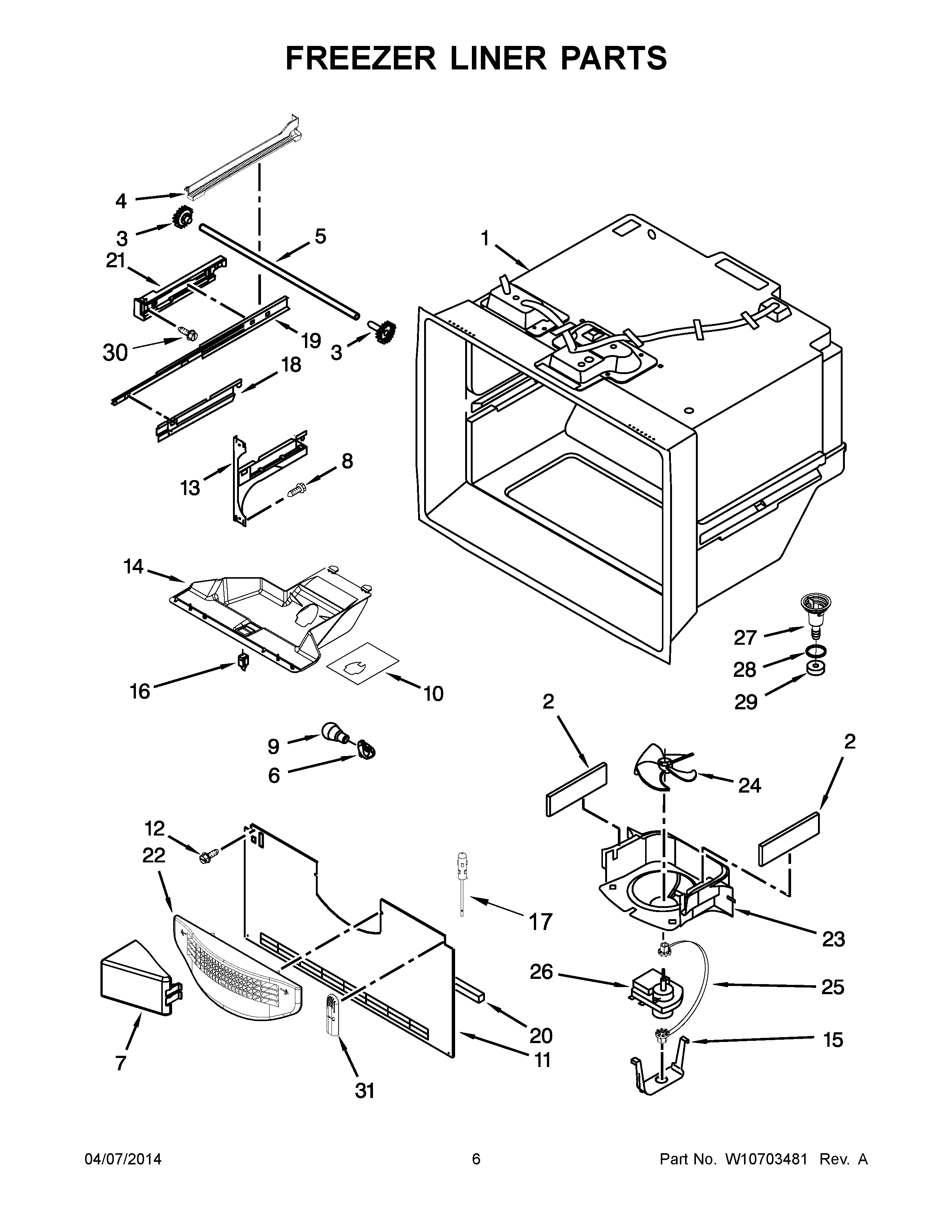

MFC2062DEM00 04 – FREEZER LINER PARTS

MFC2062DEM00 04 – FREEZER LINER PARTS

Written by

in

MFC2062DEM00 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
4RACK, SIDE (RIGHT HAND)
4RACK, SIDE (LEFT HAND)
5SHAFT
6W11447232 Whirlpool Refrigerator Socket
7MAY W10157765
8Screw (8)
9MAY W10565137
10FOIL-FZ LIGHT
11MAY W10308416
12SCREW (10)
13BRACKET, DOOR (RIGHT)
13BRACKET, DOOR (LEFT)
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
17MAY 12791419SP
18CRADLE, BASKET (RIGHT)
18CRADLE, BASKET (LEFT)
19MAY 13055901N
20GASKET, BOTTOM
21BRACKET, SLIDE (LEFT)
21BRACKET, SLIDE (RIGHT)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10150583
26MAY 13062901
27MAY W10651961
28MAY M0500703
29Gasket
30Screw (6)
31MAY 12815301
