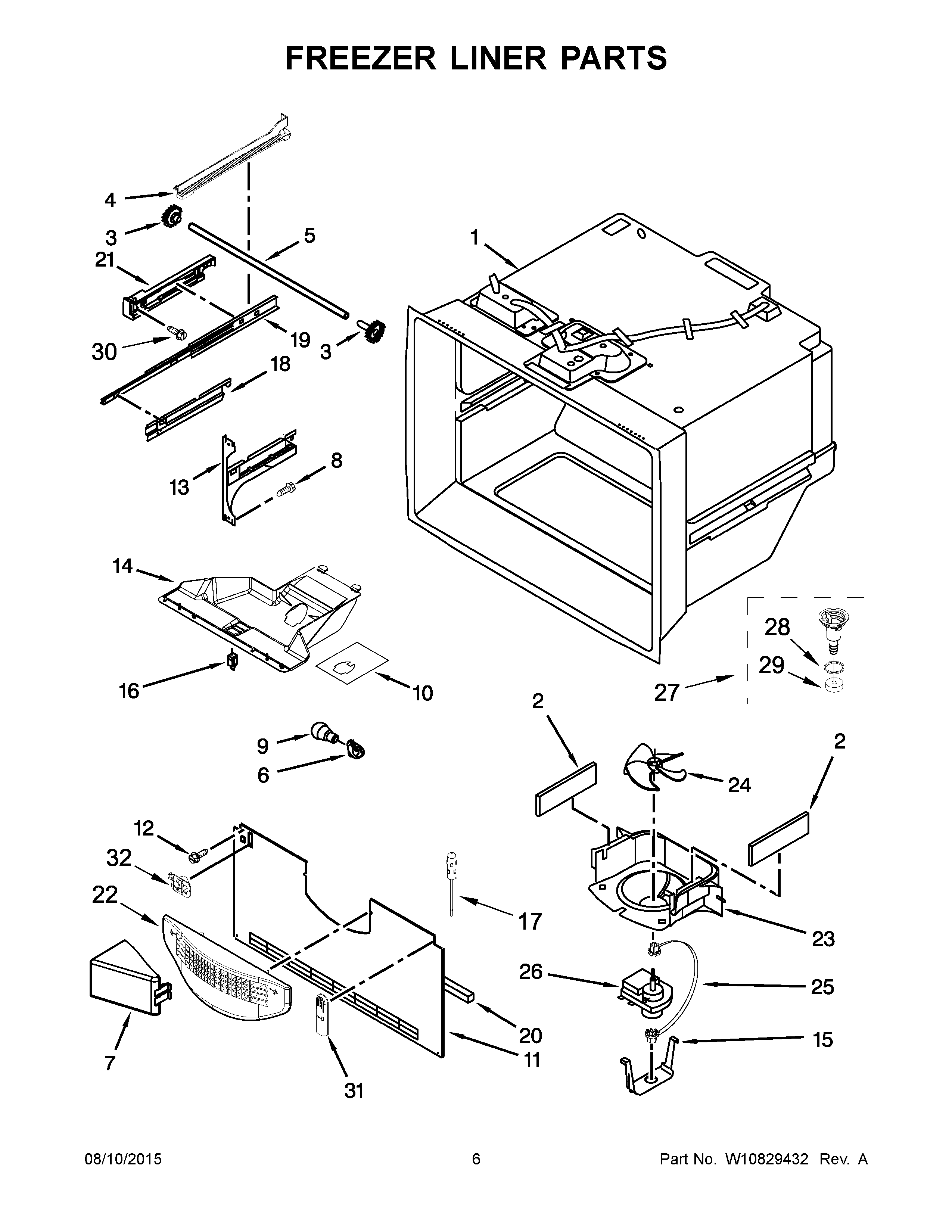

MFC2062DEM01 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4A	RACK, SIDE (RIGHT HAND)
4	RACK, SIDE (LEFT HAND)
5	MAY W10802332
6	W11447232 Whirlpool Refrigerator Socket
7	MAY W10157765
8	Screw (8)
9	MAY W10745744
10	FOIL-FZ LIGHT
11	MAY W10308416
12	SCREW (10)
13A	BRACKET, DOOR (RIGHT)
13	BRACKET, DOOR (LEFT)
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12791419SP
18A	CRADLE, BASKET (RIGHT)
18	CRADLE, BASKET (LEFT)
19	Slide, Drawer (2)
20	GASKET, BOTTOM
21	BRACKET, SLIDE (LEFT)
21A	BRACKET, SLIDE (RIGHT)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10150583
26	MAY 13062901
27	MAY W10662407
28	MAY M0500703
29	Gasket
30	Screw (6)
31	MAY 12815301
32	MAY 12932103
