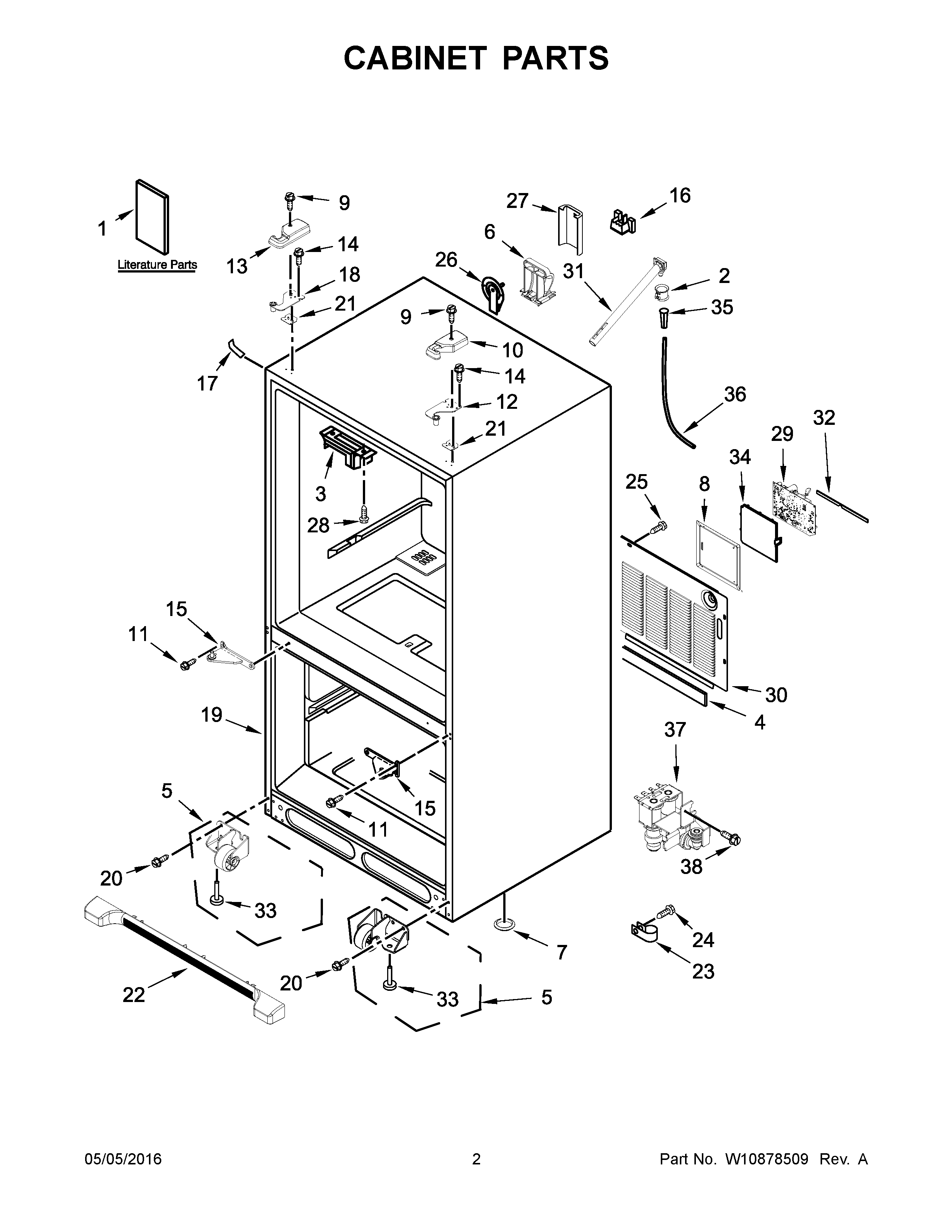

MFC2062FEZ00 02 – CABINET PARTS

Products

Position	Product
1B	MAY W10787422
1A	MAY W10847567
1	MAY W10621529
2	Clip
3	Block, Pivot
4	MAY B5759655
5	ROLLER ASSEMBLY (LEFT HAND)
5A	ROLLER ASSEMBLY (RIGHT HAND)
6	MAY W10528513
7	A3076901 Whirlpool Refrigerator Plug
8	MAY 12961602
9	MAY 12992602
10	MAY 12962302AP
11	MAY W10673840
12	MAY 12963205ED
13	COVER, TOP HINGE (LEFT) (GREY)
14	SCREW (6)
15A	HINGE, CENTER (RT) (GREY)
15	HINGE, CENTER (LT) (GREY)
16	MAY W10658542
17	COVER, CORNER (GREY)
18	MAY 12963204ED
19	LINER (NOT A SERVICEABLE PART)
20	MAY W10709365
21	MAY 12999501
21A	MAY 12999502
22	MAY W10534155
23	CLAMP, TUBE
24	MAY 12990504
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	Screw (4)
29	BOARD, HV CONTROL
30	MAY W10211855
31	MAY 10463203
32	MAY 12957801SP
33	Brake, Foot
34	MAY 12957702SP
35	MAY A3223101
36	MAY B5705333
37	VALVE, WATER INLET
38	MAY 12991604
