MFC2062FEZ00 07 – UNIT PARTS

MFC2062FEZ00 07 – UNIT PARTS

Written by

in

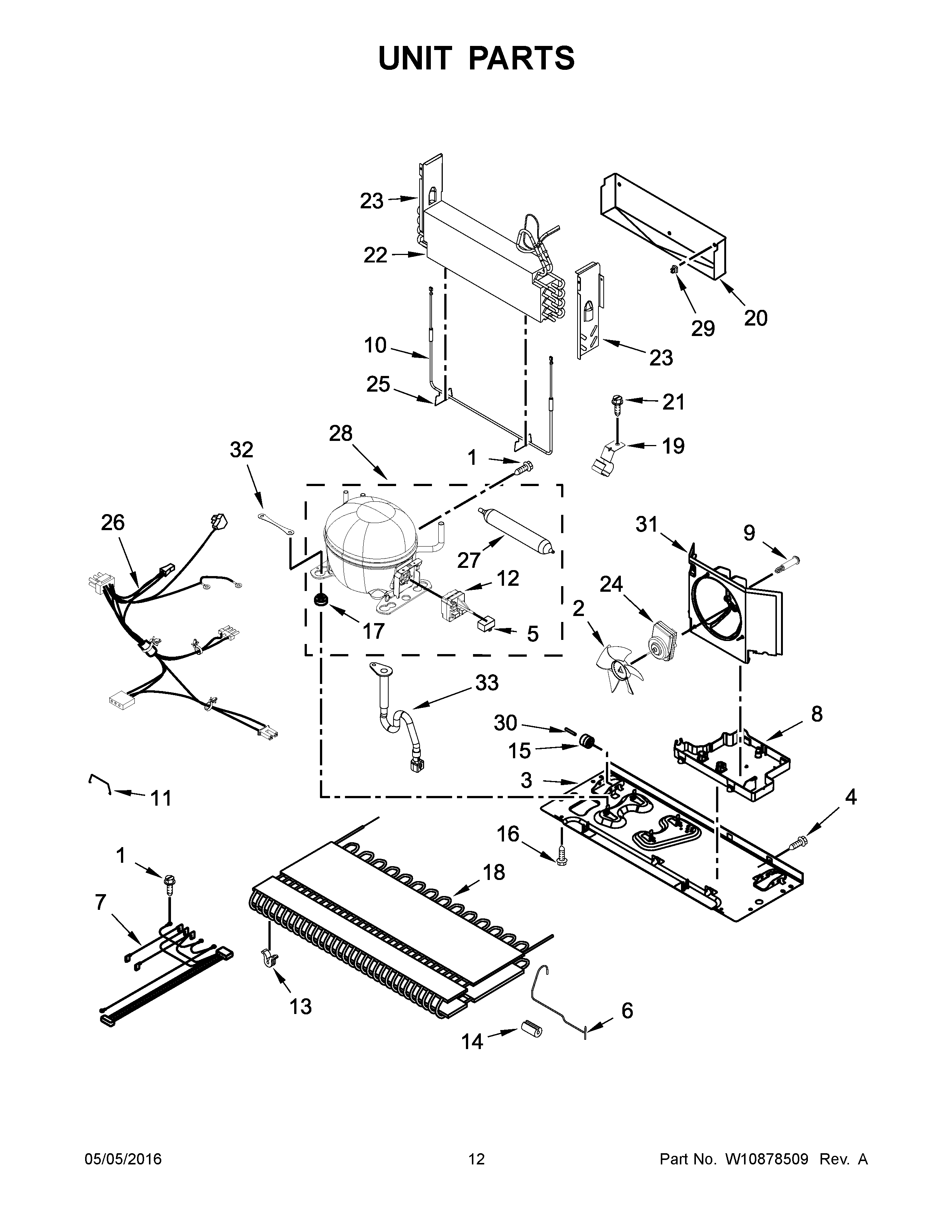

MFC2062FEZ00 07 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480111
4	SCREW (10)
5	MAY W10350564
6	MAY W10233569
7	MAY W10292239
8	MAY W10655368
9	MAY W10622701
10	MAY 12729123
11	MAY W10216075
12	MAY W10796752
13	GROMMET, COND (4)
14	GROMMET, CONDENSER
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10346415
19	MAY W10281329
20	MAY W10292803
21	MAY 12990701
22	MAY W10317014
23A	Dam (Right Side)
23	DAM (LEFT SIDE)
24	MAY W10609117
25	W11673433 Whirlpool Clip
26	MAY W10679208
27	Drier
28	MAY W10445423
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	MAY W10236396
33	EXTENSION, DRAIN TUBE
