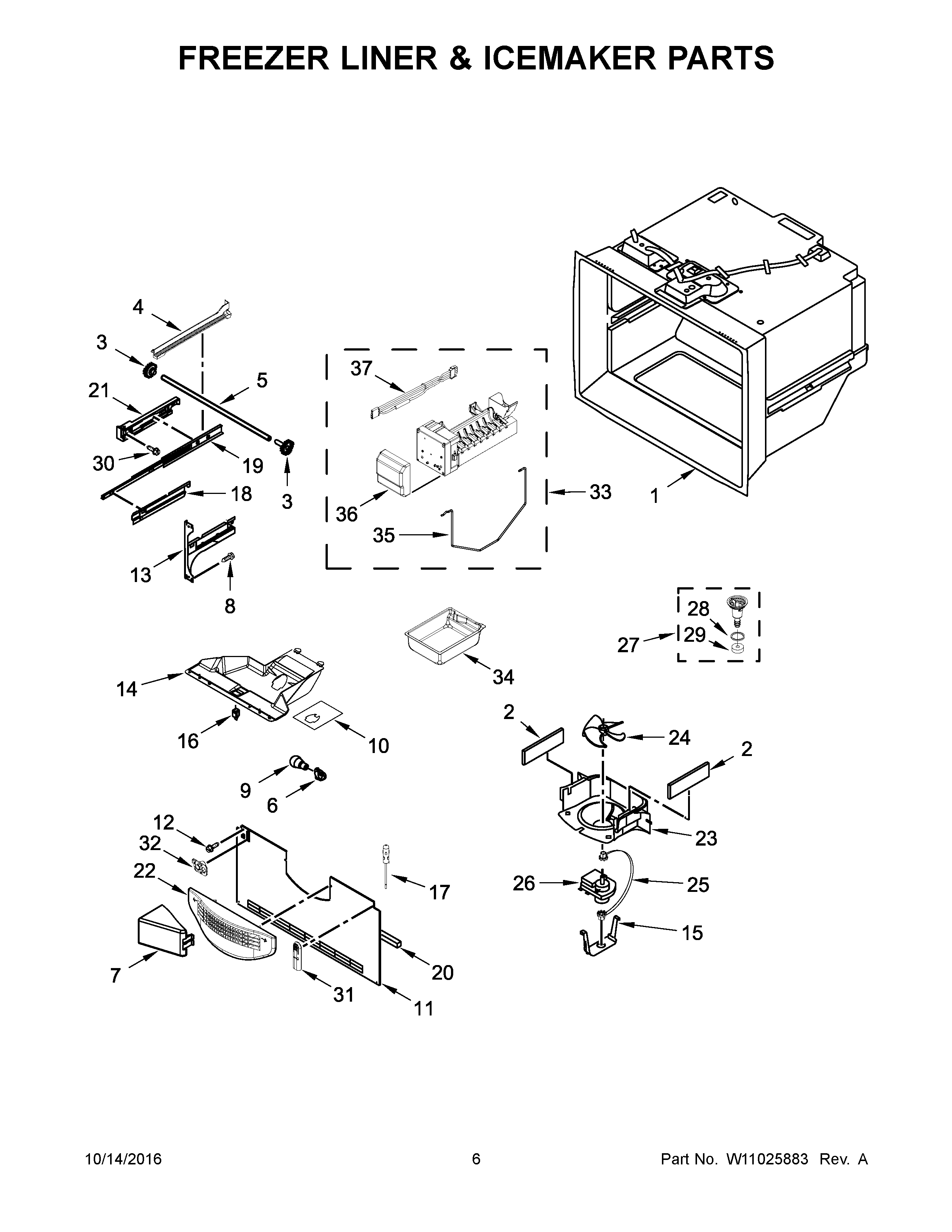

MFC2062FEZ01 04 – FREEZER LINER & ICEMAKER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	RACK, SIDE (LEFT HAND)
4A	RACK, SIDE (RIGHT HAND)
5	MAY W10802332
6	W11447232 Whirlpool Refrigerator Socket
7	MAY W10157765
8	Screw (8)
9	MAY W10820003
10	FOIL-FZ LIGHT
11	MAY W10308416
12	SCREW (10)
13A	BRACKET, DOOR (RIGHT)
13	BRACKET, DOOR (LEFT)
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12791419SP
18	CRADLE, BASKET (LEFT)
18A	CRADLE, BASKET (RIGHT)
19	Slide, Drawer (2)
20	GASKET, BOTTOM
21	BRACKET, SLIDE (LEFT)
21A	BRACKET, SLIDE (RIGHT)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10150583
26	MAY 13062901
27	MAY W10662407
28	MAY M0500703
29	Gasket
30	Screw (6)
31	MAY 12815301
32	MAY 12932103
33	ASSEMBLY, ICEMAKER (COMPLETE)
34	MAY W10740448N
35	ARM-SHUT OFF
36	COVER, ICEMAKER
37	MAY W10793621
