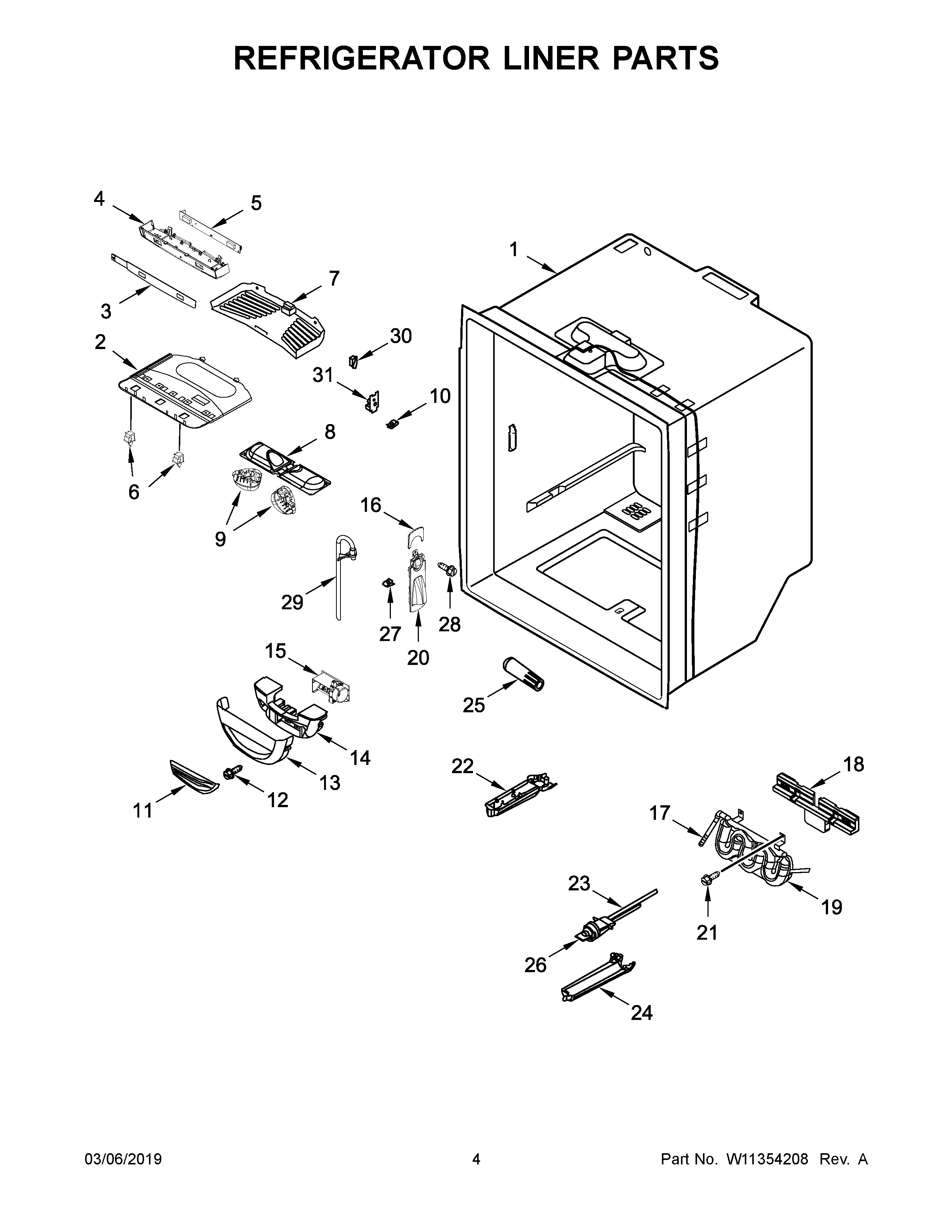

MFC2062FEZ03 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10224292
2	MAY W10464764
3	MAY W10678159
4	MAY W10464767
5	BOARD, CONTROL
6	SWITCH, LIGHT
7	COVER, LIGHT
8	MAY W10443023
9	MAY W11251749
10	MAY 12251001
11	MAY 12806801
12	MAY 12990604
13	MAY 12806701
14	INSULATION
15	MAY W10594329
16	FACADE, DISP (TOP)
17	WP2300868 Whirlpool Refrigerator Fitting
18	Insulation, Tank
19	TANK, WATER
20	MAY W10585703
21	SCREW (2)
22	PLATE
23	MAY W11308018
24	WP12568001 Whirlpool Filter Cover
25	MAY W11256384
26	MAY 12664501SP
27	Clip, Facade (2)
28	MAY 12990513
29	GUIDE, WATERLINE
30	WP12575501 Whirlpool Refrigerator Micro Switch
31	MAY W10585699
