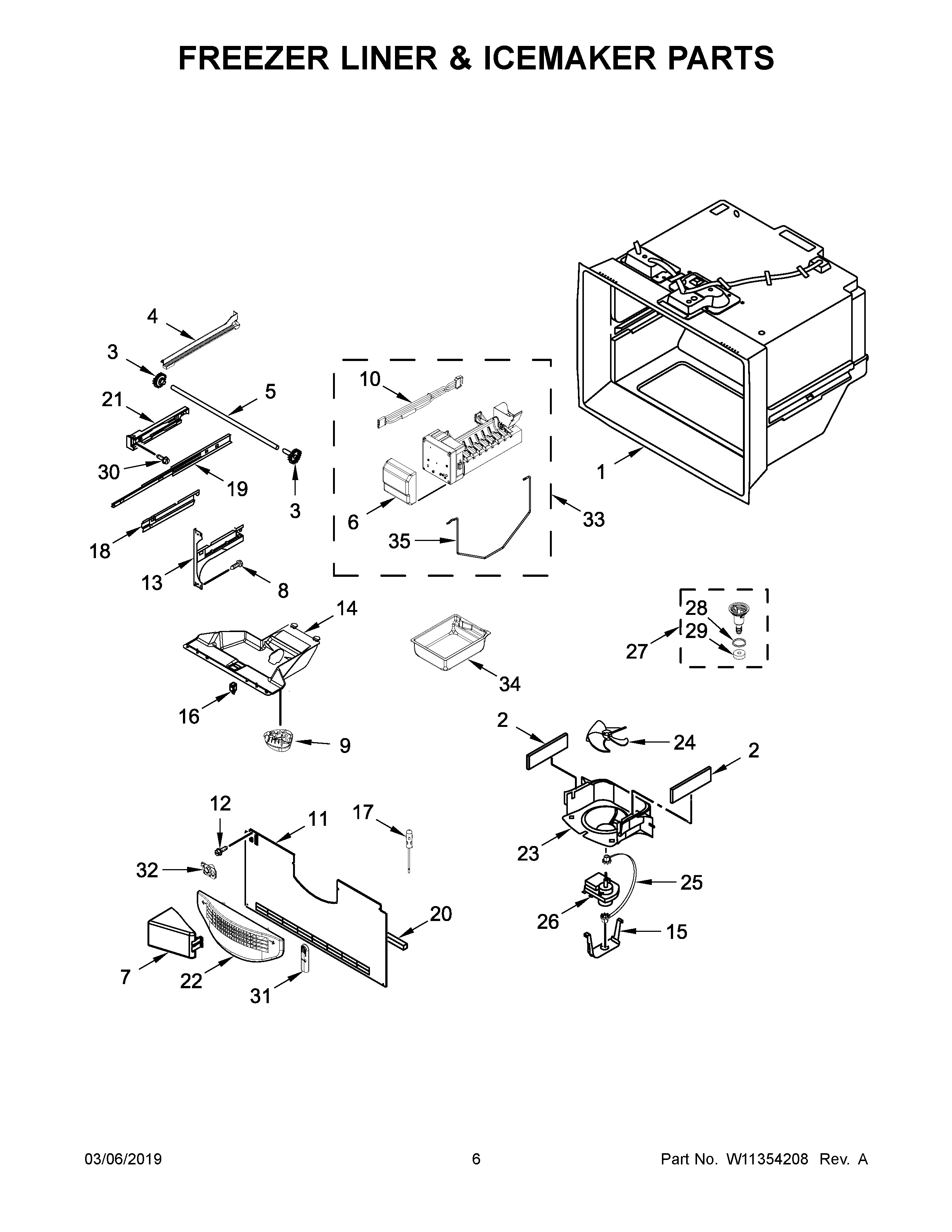

MFC2062FEZ03 04 – FREEZER LINER & ICEMAKER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
4RACK, SIDE (LEFT HAND)
4ARACK, SIDE (RIGHT HAND)
5MAY W10802332
6COVER, ICEMAKER
7MAY W10157765
8Screw (8)
9MAY W11251749
10MAY W10793621
11MAY W10308416
12SCREW (10)
13ABRACKET, DOOR (RIGHT)
13BRACKET, DOOR (LEFT)
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16SWITCH, LIGHT
17MAY 12791419SP
18CRADLE, BASKET (LEFT)
18ACRADLE, BASKET (RIGHT)
19Slide, Drawer (2)
20GASKET, BOTTOM
21ABRACKET, SLIDE (RIGHT)
21BRACKET, SLIDE (LEFT)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10150583
26MAY 13062901
27MAY W10662407
28MAY M0500703
29Gasket
30Screw (6)
31MAY 12815301
32MAY W11261524
33ASSEMBLY, ICEMAKER (COMPLETE)
34MAY W10171529N
35ARM-SHUT OFF
