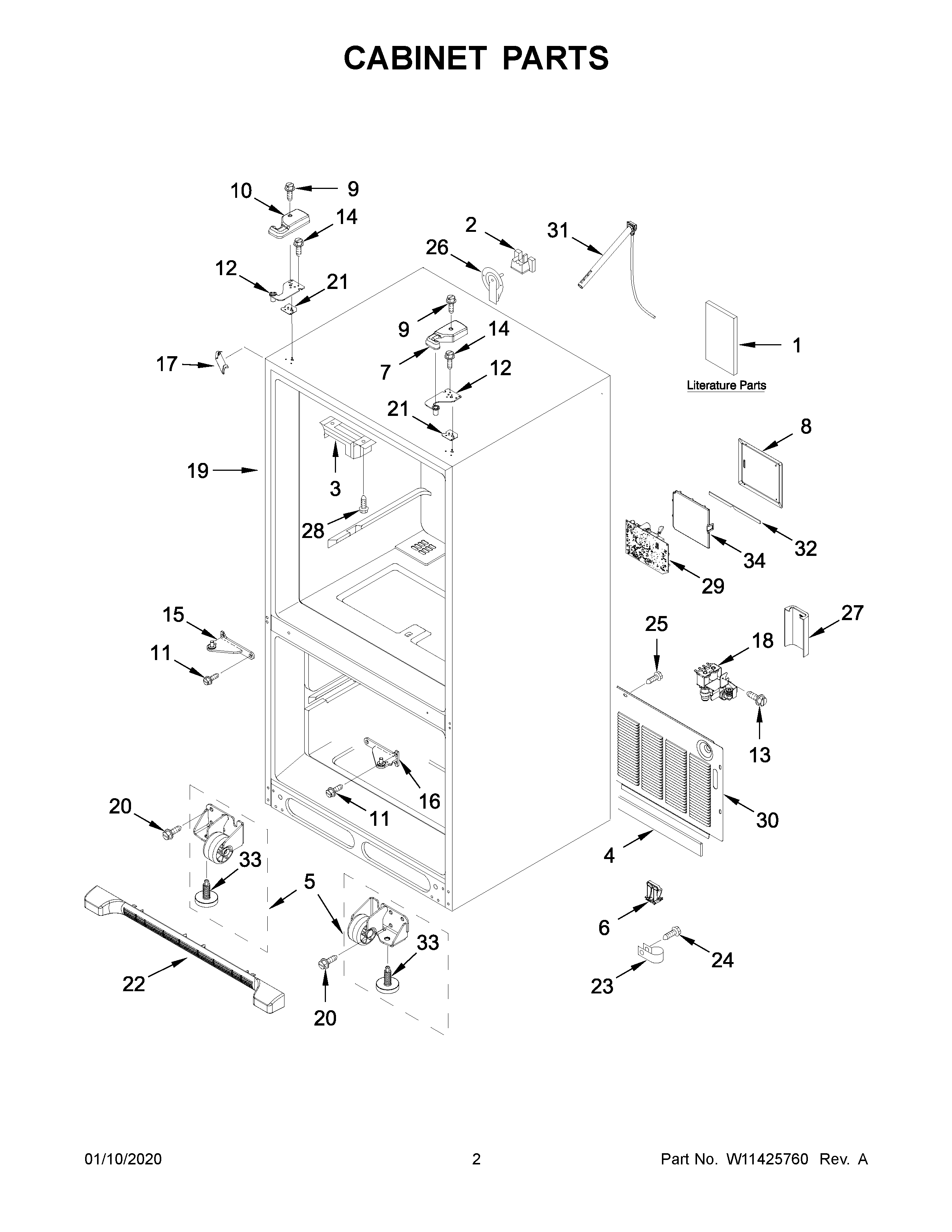

MFC2062FEZ04 02 – CABINET PARTS

Products

Position	Product
1B	MAY W10787422
1A	MAY W11308936
1	MAY W11339720
2	MAY W10658542
3	Block, Pivot
4	MAY B5759655
5A	ROLLER ASSEMBLY (RIGHT HAND)
5	ROLLER ASSEMBLY (LEFT HAND)
6	MAY W10528513
7	MAY 12962302AP
8	MAY 12961602
9	MAY 12992602
10	COVER, TOP HINGE (LEFT) (GREY)
11	MAY W10673840
12A	MAY 12963205ED
12	MAY 12963204ED
13	MAY 12991604
14	SCREW (6)
15	HINGE, CENTER LEFT HAND (GREY)
16	HINGE, CENTER RIGHT HAND (GREY)
17	COVER, CORNER (GREY)
18	VALVE, WATER INLET
19	LINER (NOT A SERVICEABLE PART)
20	MAY W10709365
21A	MAY 12999502
21	MAY 12999501
22	MAY W10534155
23	CLAMP, TUBE
24	MAY 12990504
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	SCREW
29	BOARD, HV CONTROL
30	MAY W10211855
31	ASSEMBLY, FILL TUBE (INCLUDES TUBING, FILL TUBE ELBOW, TUBE INSERT AND CLAMP)
32	GASKET-HV BOX
33	Brake, Foot
34	MAY 12957702SP
