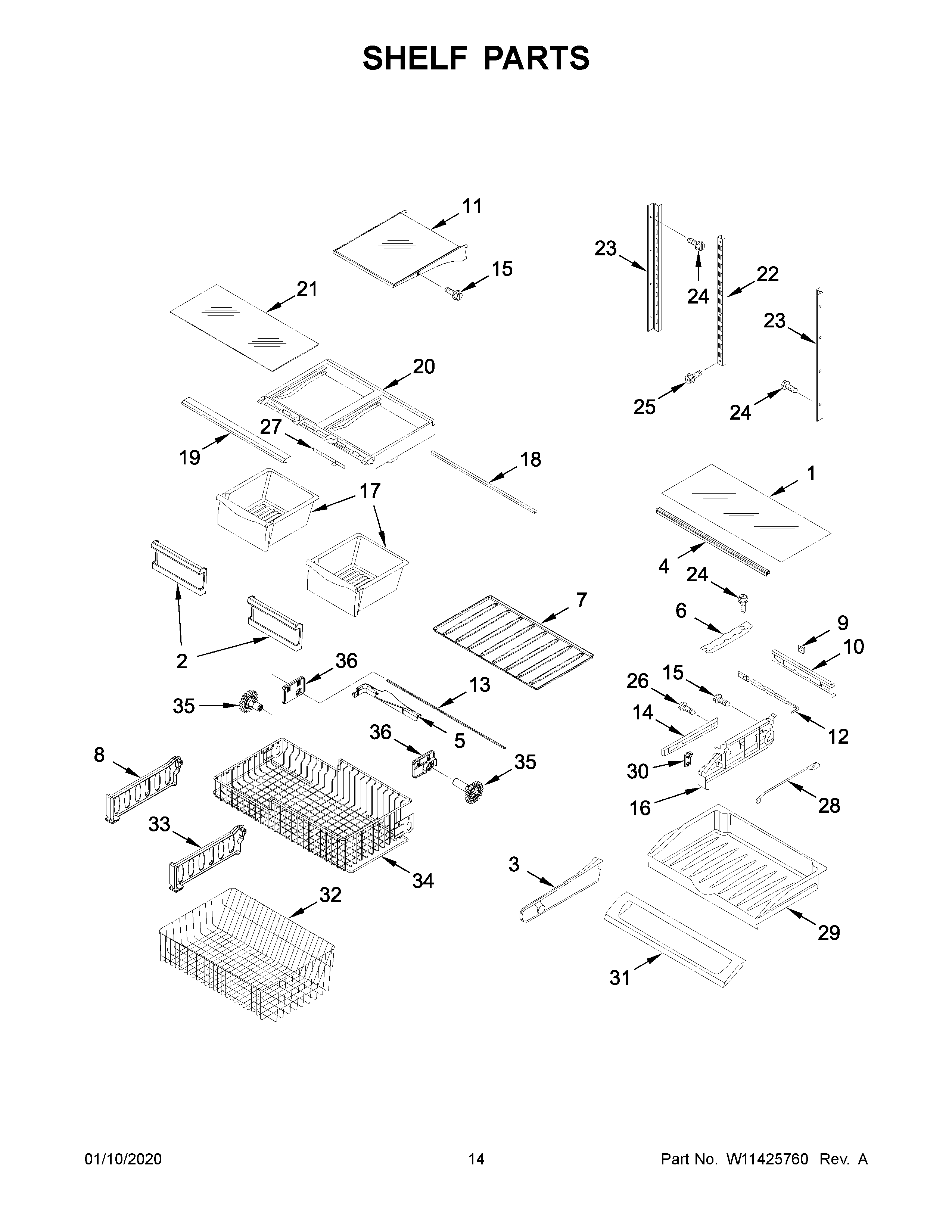

MFC2062FEZ04 08 – SHELF PARTS

Products

Position	Product
1	MAY W10893771
2	HANDLE, CRISPER PAN (2)
3	DIVIDER, PANTRY DRAWER
4	SUPPORT, GLASS (INCLUDES PANTRY BRACE)
5	MAY W10149389N
6	TRACK, PANTRY
7	TRAY-LOWER BSKT.
8	Divider, Upper Basket
9	MAY 12656901
10	MAY 12656202
11	ASSEMBLY, SHELF
12	SLIDE, TEMPERATURE
13	MAY W10802333
14	MAY W10235370
15	MAY 12990504
16	Endcap, Pantry (Left)
16A	ENDCAP, PANTRY (RIGHT)
17	Pan, Crisper (2)
18	BRACE, CRISPER COVER
19	MAY W10231485N
20	MAY 12531202SP
21	Glass, Crisper Cover
22	MAY W10273463
23	MAY W10569182
24	MAY 12990513
25	MAY W10215666
26	SCREW (2)
27	MAY 12530805SP
28	ROD, TEMPERATURE CONTROL
29	MAY 12655702
30	KNOB, TEMP CONTROL
31	DOOR, PANTRY DRAWER
32	BASKET, LOWER
33	DIVIDER, LOWER BASKET
34	BASKET, FREEZER (UPPER)
35	MAY W10474716
35A	MAY W10474715
36A	MOUNT-GEAR (RIGHT HAND)
36	MOUNT-GEAR (LEFT HAND)
