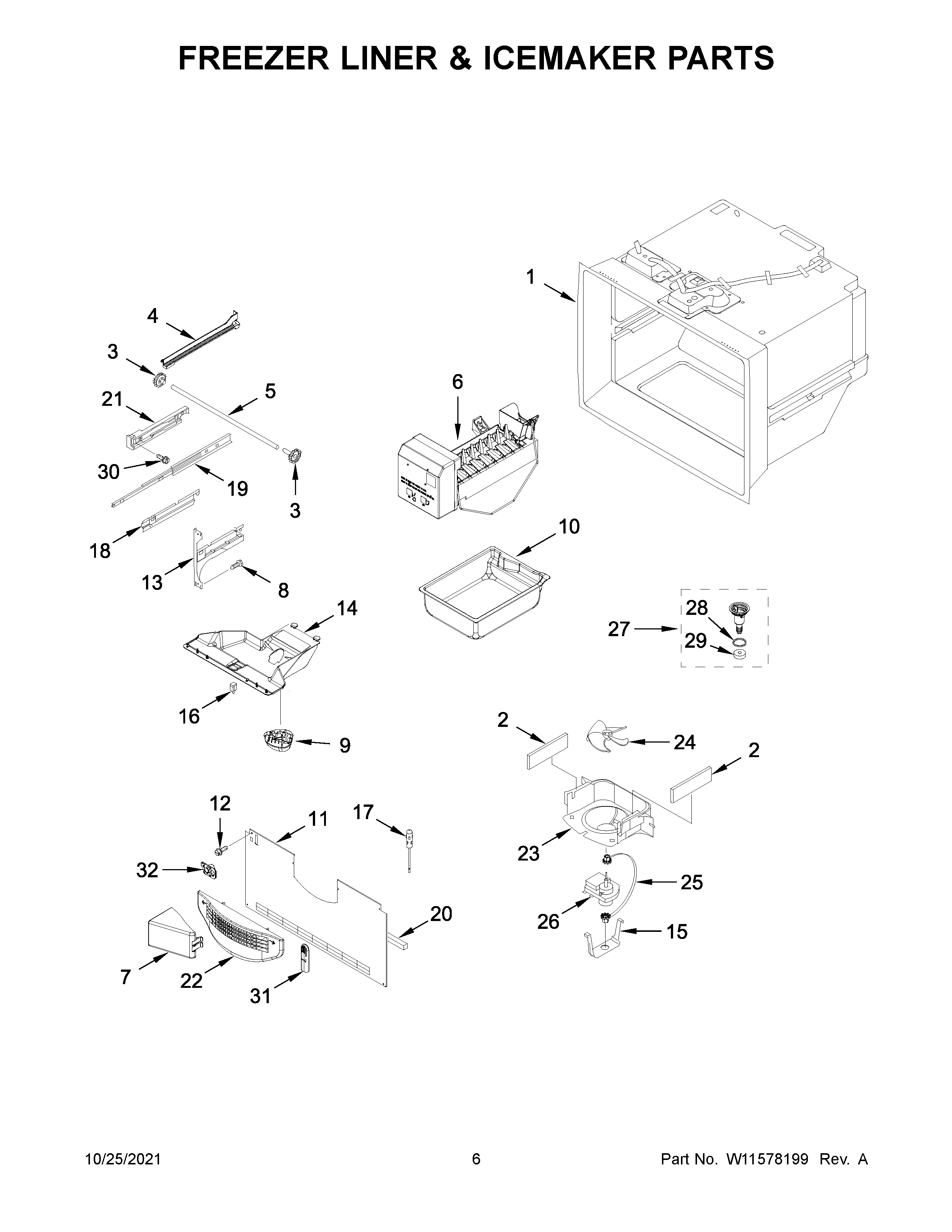

MFC2062FEZ08 04 – FREEZER LINER & ICEMAKER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10856123 Whirlpool Refrigerator Gasket
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	W10516605 Whirlpool Refrigerator Rail
4A	W10516604 Whirlpool Refrigerator Rail
5	W11028221 Whirlpool Refrigerator Shaft
6	W11692144 Whirlpool Ice Maker
7	W10157765 Whirlpool Refrigerator Deflector
8	WP98165 Whirlpool Screw
9	MODULE
10	WPW10171529 Whirlpool Refrigerator Ice Pan
11	W11727809 Whirlpool Evaporator Cover
12	67006425 Whirlpool Refrigerator Screw
13A	WPW10330995 Whirlpool Refrigerator Bracket
13	WPW10330994 Whirlpool Refrigerator Bracket
14	WPW10277025 Whirlpool Refrigerator Housing
15	CLIP, EVAPORATOR MOTOR
16	W11396033 Whirlpool Refrigerator Rocker Switch
17	W10316760 Whirlpool Thermistor Kit
18A	WPW10281116 Whirlpool Bracket
18	WPW10281115 Whirlpool Refrigerator Bracket
19	W11658403 Whirlpool Slide
20	W11159728 Whirlpool Refrigerator Gasket
21A	WPW10284693 Whirlpool Mounting Bracket
21	WPW10284692 Whirlpool Refrigerator Bracket
22	WPW10175909 Whirlpool Grille Assembly
23	WPW10167023 Whirlpool Refrigerator Shroud
24	WP2169142 Whirlpool Fan Blade
25	W11690160 Whirlpool Grommet
26	MOTOR-EVAP
27	W10815413 Whirlpool Refrigerator Funnel
28	WPM0500703 Whirlpool Refrigerator O-Ring Seal
29	WPB8381501 Whirlpool Refrigerator Door Gasket
30	WP489474 Whirlpool Refrigerator Screw
31	WP67003924 Whirlpool Refrigerator Cover
32	GUIDE, FILL TUBE
