MFD2560HES 03 – CONTROLS

MFD2560HES 03 – CONTROLS

Written by

in

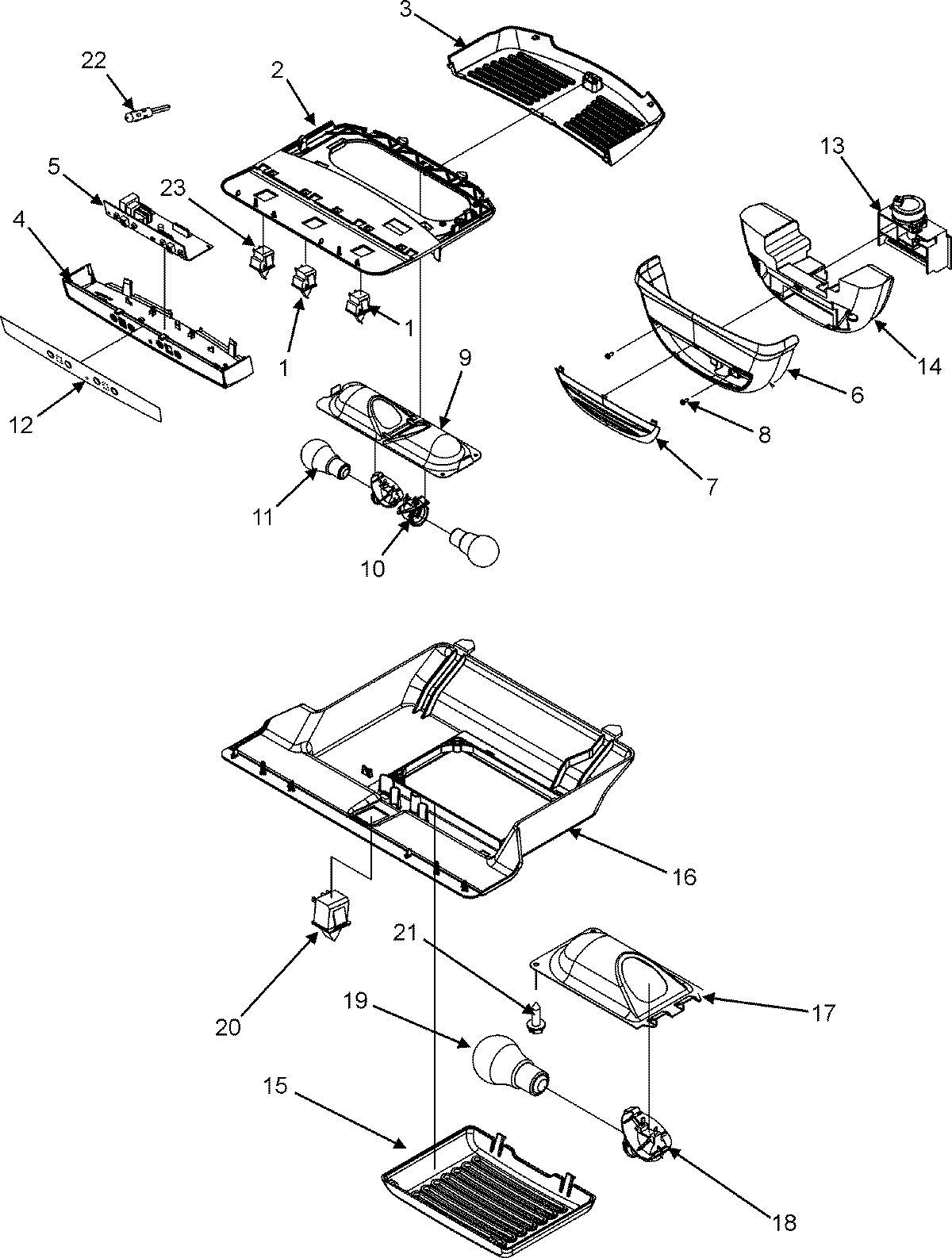

MFD2560HES 03 – CONTROLS

Products

PositionProduct
1Switch, Light (2)
2MAY 67004078
3W11284721 Whirlpool Refrigerator Cover
4MODULE, REF CONTROL
5MAY 12002445
6WP12806701 Whirlpool Refrigerator Box Cover
767003900 Whirlpool Refrigerator Insert Damper Cover
8MAY M0213132
912806601 Whirlpool Refrigerator Light Housing
12MAY 67004642
13WP67003903 Whirlpool Refrigerator Damper Control
14WP67003904 Whirlpool Refrigerator Insulation
15MAY 67003905
1667003906 Whirlpool Refrigerator Control Module
17MAY 67001035
18Socket, Light (2)
19RANGE ONLY 40W 120V APPL BULB
20MAY 12466101
21MAY M0226528
2212002355 Whirlpool Refrigerator Thermistor Kit
23W11478401 Whirlpool Refrigerator Housing
24MAY 67003908
24WP12868601 Whirlpool Refrigerator Wire Harness
