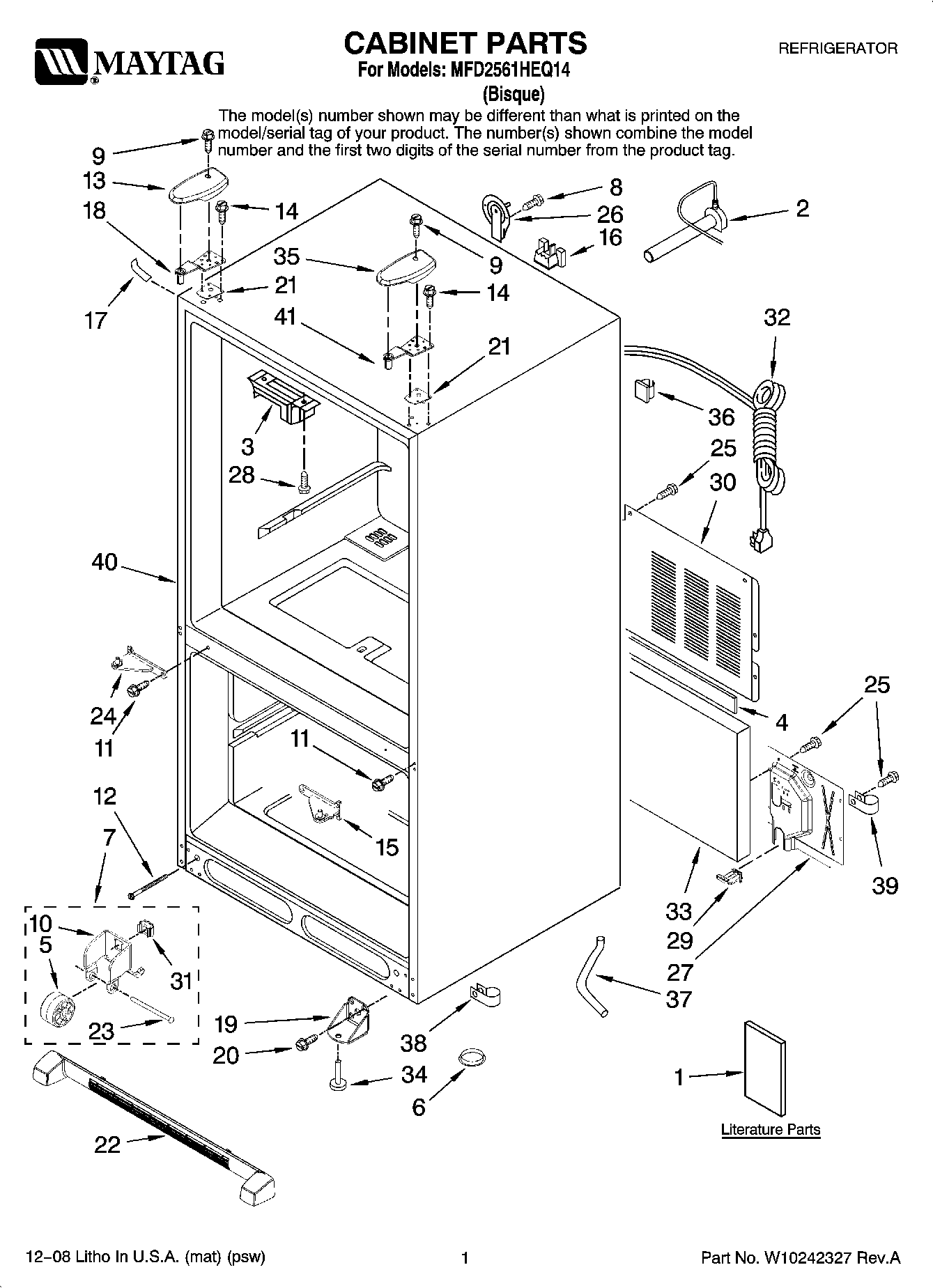

MFD2561HEQ14 01 – CABINET PARTS

Products

Position	Product
1	MAY 67006616
1	Owners Manual
1	MAY W10123430
2	MAY W10137519
3	WP67003405 Whirlpool Pivot Block
4	Gasket
5	WP10450603 Whirlpool Refrigerator Roller
6	A3076901 Whirlpool Refrigerator Plug
7	Roller Assy.(Rear)
8	WP98165 Whirlpool Screw
9	WP8281196 Whirlpool Screw
10	12456801V Whirlpool Refrigerator Bracket
11	WP67006380 Whirlpool Screw
12	71003131 Whirlpool Oven Screw
13	COVER, TOP HINGE (LT-BSQ)
14	WP489349 Whirlpool Refrigerator Screw
15	MAY 67006379
16	WP12777701 Whirlpool Refrigerator Filler Block
17	MAY 67003486
18	Hinge, Top Left
19	12906303WD Whirlpool Refrigerator Bracket
20	MAY 67006564
21	MAY 12579702
22	Grille Assembly (Includes Clips) (Bisque)
23	MAY M1205302
24	W10918113 Whirlpool Refrigerator Door Hinge
25	Screw (10)
26	COVER, WATER LINE
27	MAY 67004098
28	WP7101P126-60 Whirlpool Screw
29	12831101 Whirlpool Refrigerator Tube Clamp
30	MAY 67006101
31	MAY M0286708
32	Cord, Power
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	W11177593 Whirlpool Leveling Feet
35	COVER, TOP HINGE (RT-BSQ)
36	WPM0104106 Whirlpool Refrigerator Clip
37	MAY 67001066
38	67001067 Whirlpool Refrigerator Drain Tube Clip
39	W10833902 Whirlpool Refrigerator Clamp
41	Hinge, Top
