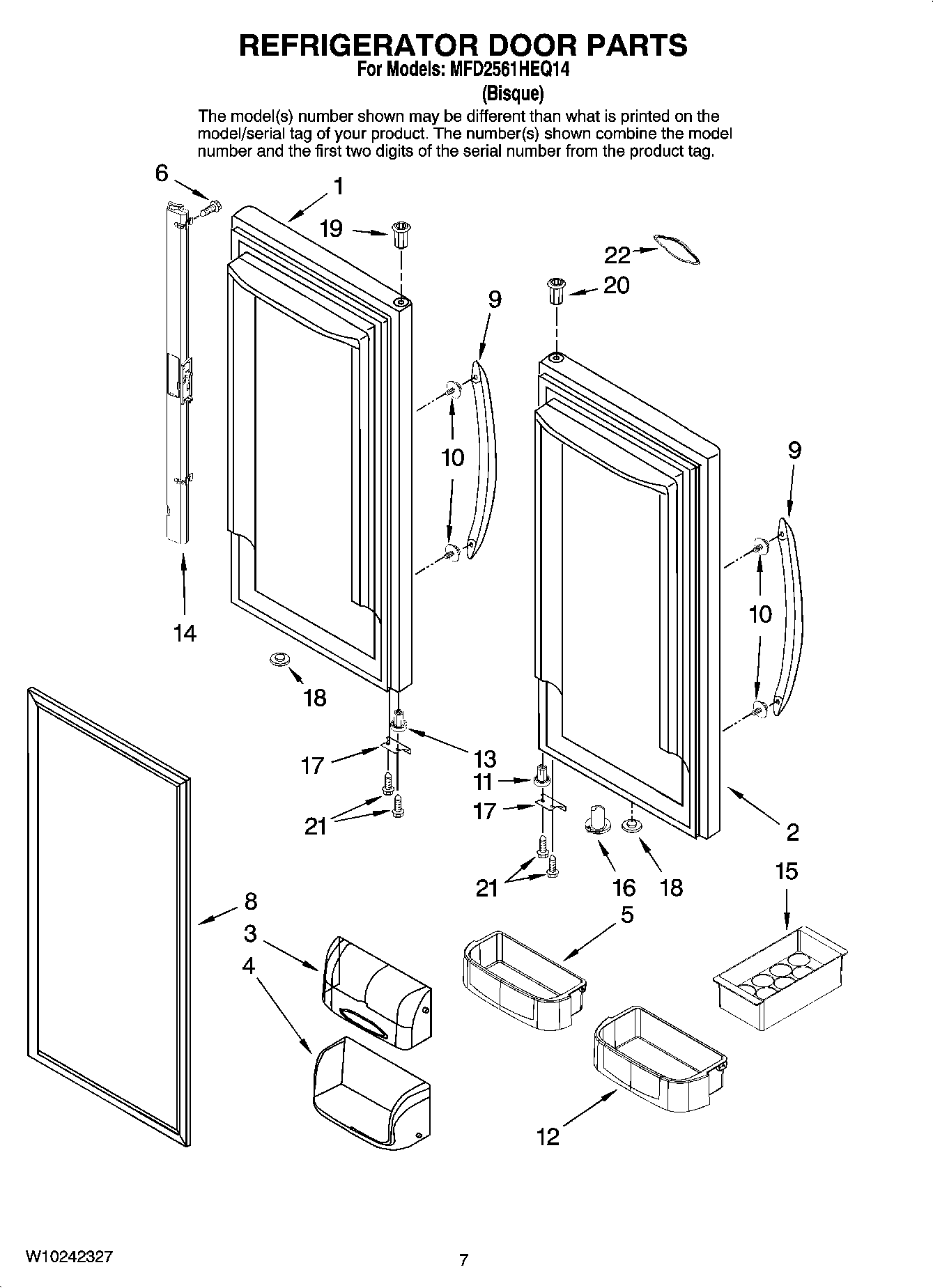

MFD2561HEQ14 04 – REFRIGERATOR DOOR PARTS

MFD2561HEQ14 04 – REFRIGERATOR DOOR PARTS

Written by

in

MFD2561HEQ14 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 13024018QQ
2MAY 13024017QQ
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
567004040 Whirlpool Refrigerator Bucket Door
6MAY 67006786
8Gasket, Door (2) (White)
9MAY W10119655
10WP12992902 Whirlpool Refrigerator Screw
1112028601W Whirlpool Refrigerator Hinge Bushing
12Bin, Shelf (2) (Gallon)
1367002722 Whirlpool Refrigerator White Door Bushing
14RAIL-MULLN WHITE
15MAY 67215-2
16WP67003638 Whirlpool Closing Cam
17Stop, Door (Bisque)
1810712401 Whirlpool Refrigerator Vent Plug (White)
19BUSHING, DOOR UPPER LEFT (WHITE)
20WP67004977 Whirlpool Refrigerator Door Hinge Bushing
21WP98165 Whirlpool Screw
222324038 Whirlpool Refrigerator Nameplate
