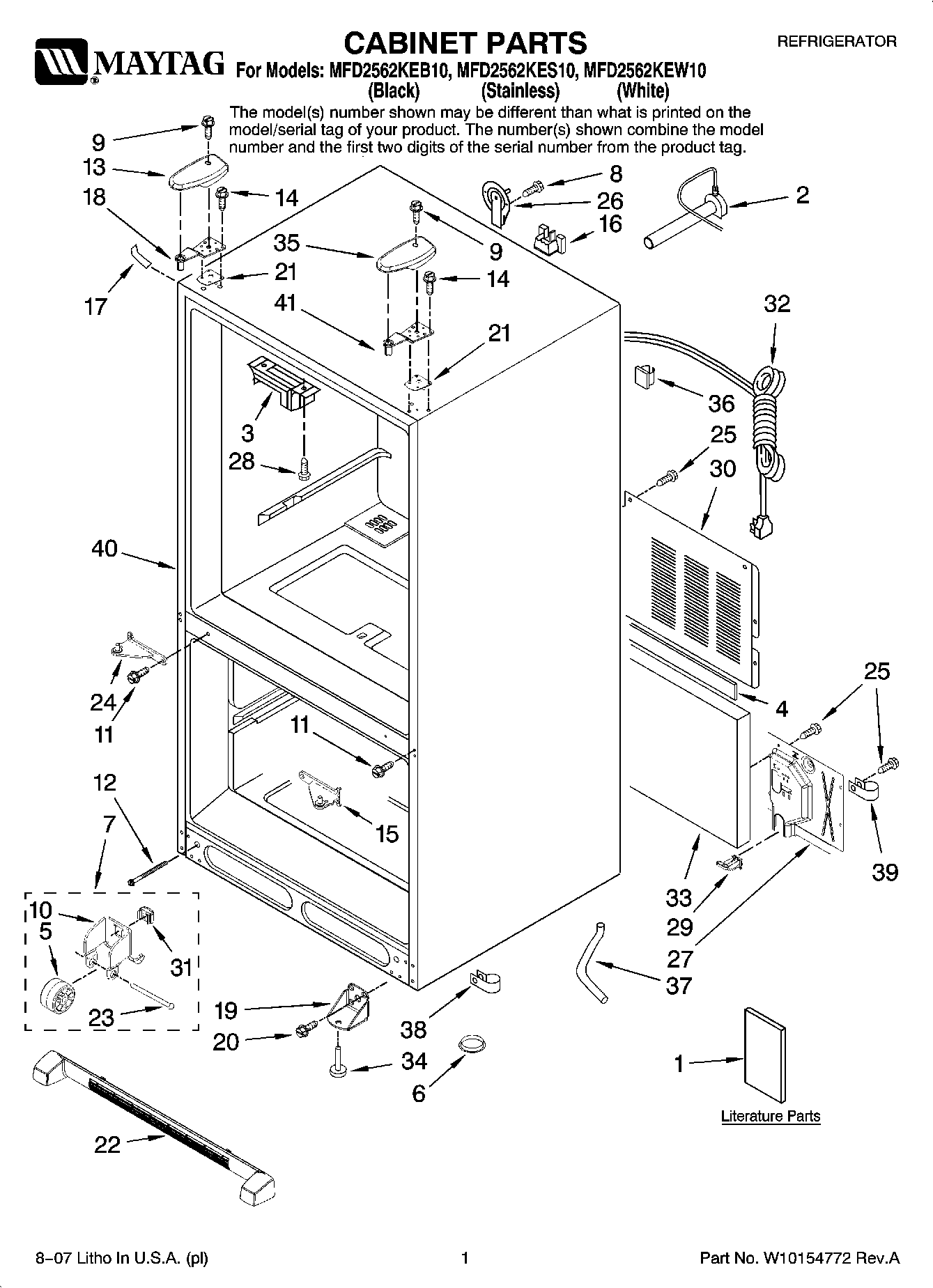

MFD2562KEB10 01 – CABINET PARTS

MFD2562KEB10 01 – CABINET PARTS

Written by

in

MFD2562KEB10 01 – CABINET PARTS

Products

PositionProduct
1MAY 67006616
1MAY 12828147
1MAY W10142269
2MAY W10137519
3WP67003405 Whirlpool Pivot Block
4Gasket
5WP10450603 Whirlpool Refrigerator Roller
6A3076901 Whirlpool Refrigerator Plug
7Roller Assy.(Rear)
8WP98165 Whirlpool Screw
9WP8281196 Whirlpool Screw
1012456801V Whirlpool Refrigerator Bracket
11WP67006380 Whirlpool Screw
12MAY 392-45
13MAY 12684201W
13MAY 12684201B
14WP489349 Whirlpool Refrigerator Screw
16WP12777701 Whirlpool Refrigerator Filler Block
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1767003484 Whirlpool Refrigerator White Corner Cover
18Hinge, Top Left
19SHAFT, AGITATOR COMPLETE
21MAY 12579702
22WPW10534154 Whirlpool Refrigerator Front Grille
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
24W10918164 Whirlpool Refrigerator Door Hinge
24W10918113 Whirlpool Refrigerator Door Hinge
25Screw (10)
26COVER, WATER LINE
27MAY 67004098
28WP7101P126-60 Whirlpool Screw
2912831101 Whirlpool Refrigerator Tube Clamp
30MAY 67006101
31MAY M0286708
32WP67006506 Whirlpool Refrigerator Power Cord
3367003796 Whirlpool Refrigerator Fiber Acoustic
34W11177593 Whirlpool Leveling Feet
35MAY 12684202W
35MAY 12684202B
36WPM0104106 Whirlpool Refrigerator Clip
37MAY 67001066
3867001067 Whirlpool Refrigerator Drain Tube Clip
39W10833902 Whirlpool Refrigerator Clamp
41Hinge, Top
